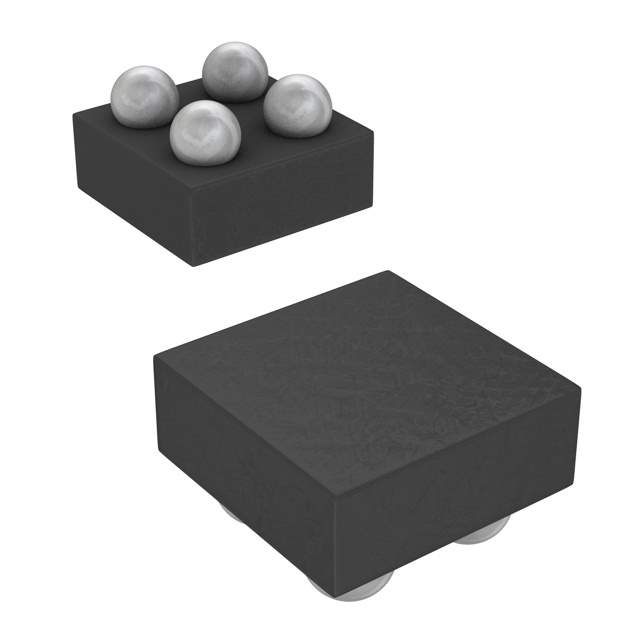

TLV70533PYFPR

Part No TLV70533PYFPR
Manufacturer Texas Instruments
Catalog PMIC - Voltage Regulators - Linear
Description IC REG LINEAR 3.3V 200MA 4DSBGA / Linear Voltage Regulator IC Positive Fixed 1 Output 200mA 4-DSBGA
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs)>Power Management (PMIC)>Voltage Regulators - Linear
Manufacturer Texas Instruments
Packaging Reel - TR
Output Configuration Positive
Output Type Fixed
Number of Regulators 1
Voltage - Input (Max) 5.5V
Voltage - Output (Min/Fixed) 3.3V
Voltage Dropout (Max) 0.25V @ 200mA
Current - Output 200mA
Current - Quiescent (Iq) 55 µA
Current - Supply (Max) 315 µA
PSRR 80dB ~ 55dB (10kHz ~ 1MHz)
Control Features Enable
Protection Features Over Current, Over Temperature, Reverse Polarity, Under Voltage Lockout (UVLO)
Temperature Range - Operating -40°C ~ 125°C (TJ)
Mounting Surface Mount
Case / Package 4-XFBGA, DSBGA
Supplier Device Package 4-DSBGA
Base Product Number TLV70533
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Other Part Number 296-51728-6,296-51728-2,296-51728-1,TLV70533PYFPR-ND
Standard Package 3,000
Win Source Part Number 1323698-TLV70533PYFPR
Ultra Librarian 3D Model Ultra Librarian TLV70533PYFPR CAD Model

Description

Introducing the Texas Instruments TLV70533PYFPR

The Texas Instruments TLV70533PYFPR is a highly efficient, low-dropout (LDO) voltage regulator designed to deliver a fixed output of 3.3V. This compact, high-performance component is an ideal choice for space-constrained applications that require a stable and reliable power supply.

Key Features

  • Fixed Output Voltage: The TLV70533PYFPR provides a steady 3.3V output, which is essential for powering sensitive electronic circuits.
  • Low Dropout: The LDO technology ensures a minimal voltage difference between the input and output, allowing the regulator to operate efficiently even when the supply voltage is very close to the output voltage.
  • High Accuracy: With an output voltage accuracy of ±2%, this regulator ensures precise voltage levels are maintained for your critical applications.
  • Low Quiescent Current: The device boasts an ultra-low quiescent current, making it suitable for battery-powered devices where power conservation is paramount.
  • Thermal Shutdown and Overcurrent Protection: Built-in safety features protect the device from damage due to overheating and excessive current conditions.

Applications

The TLV70533PYFPR is versatile and can be used in a variety of applications, including but not limited to:

  • Portable and battery-powered electronics
  • Smartphones and wearable devices
  • Microcontroller power supplies
  • Wireless communication systems
  • Healthcare and medical devices

Package and Availability

The product comes in a small, 4-pin DSBGA package, which is highly beneficial for designs where board space is at a premium. Its tiny footprint, combined with the low-profile design, makes it an excellent choice for sleek, modern electronics.

With Texas Instruments' reputation for quality and reliability, the TLV70533PYFPR is a solid choice for designers looking to enhance the performance and efficiency of their power management systems. Its robust feature set ensures that it can meet the demands of even the most challenging applications.
