Introducing the TLV70533YFFT from Texas Instruments

The TLV70533YFFT is a high-performance, low-dropout regulator (LDO) designed to deliver a continuous 3.3V output at up to 200mA. This precision voltage regulator is a part of Texas Instruments' extensive LDO product line and is specifically engineered to meet the needs of space-constrained and power-sensitive applications.

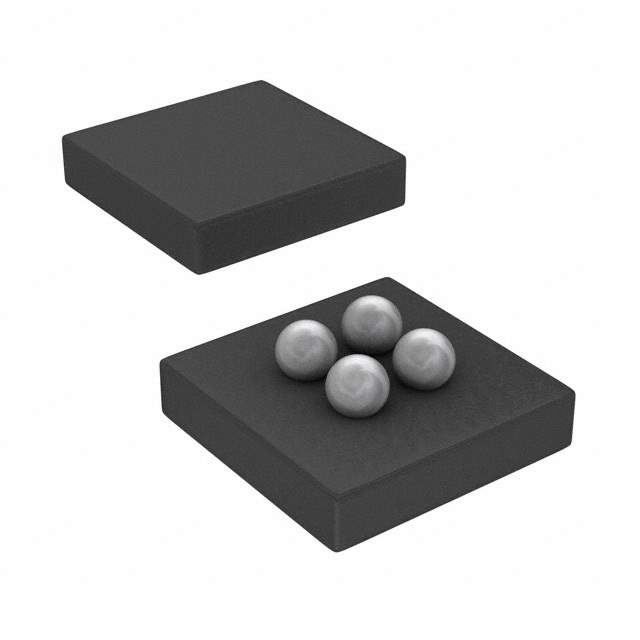

With its ultra-small footprint, the TLV70533YFFT comes in a compact, 4-pin DSBGA package that is ideal for portable electronics where size and weight are critical design parameters. Despite its diminutive size, this LDO does not compromise on performance, offering excellent load and line transient responses while maintaining a low quiescent current of just 25µA at no load.

Key Features

• Output Voltage: Fixed 3.3V with high accuracy
• Output Current: Capable of delivering up to 200mA
• Low Dropout: Ensures efficient operation even with very low input-to-output voltage differentials
• Low Quiescent Current: Only 25µA in no-load conditions, making it suitable for battery-powered devices
• Package: Ultra-compact 4-pin DSBGA package
• Stability: Stable with ceramic output capacitors as low as 0.47µF
• Protection Features: Built-in over-current and over-temperature protection for enhanced reliability

Applications

The TLV70533YFFT is versatile and can be used in a range of applications, including but not limited to:

• Smartphones and tablets
• Wearable technology
• Wireless communications modules
• Portable medical devices
• Internet of Things (IoT) devices

This LDO's high-efficiency and low-power consumption make it an excellent choice for devices that require a reliable power source without the need for frequent recharging or battery replacement. Its robust protection features ensure that your product operates safely under various conditions, further underlining the TLV70533YFFT's suitability for sophisticated electronic systems.

With the TLV70533YFFT, Texas Instruments continues to demonstrate their commitment to providing innovative, high-quality power management solutions that meet the evolving needs of modern electronics.
