TLV71325PDQNR

Part No TLV71325PDQNR
Manufacturer Texas Instruments
Catalog PMIC - Voltage Regulators - Linear

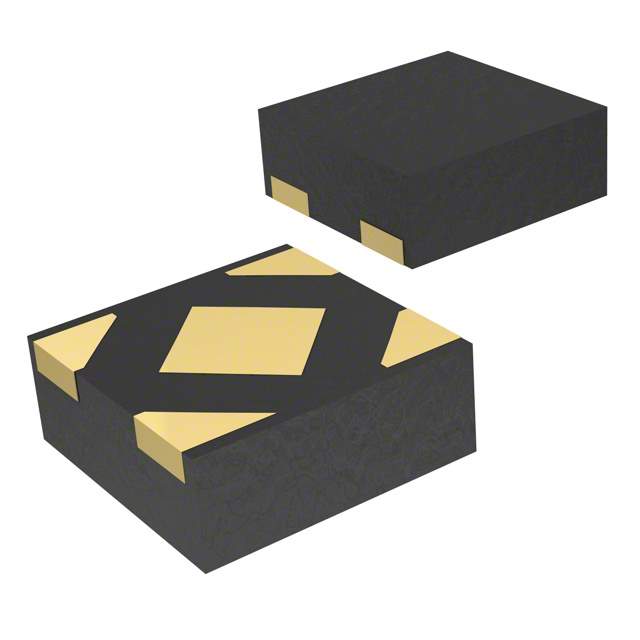

Description IC REG LDO 2.5V 0.15A 4X2SON
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Texas Instruments
Packaging Reel - TR
Status Active
Output Type Fixed
Number of Regulators 1
Maximum Input Voltage 5.5V
Nominal Output Voltage (Min/Fixed) 2.5V
Dropout Voltage-Max 0.57V @ 150mA
Output Current 150mA
Operating Supply Current 75μA
PSRR 70dB to 55dB (100Hz to 1MHz)
Control Features Enable
Protection Features Over Current, Over Temperature, Reverse Polarity, Short Circuit, Under Voltage Lockout (UVLO)
Temperature Range - Operating -40°C to 125°C
Mounting SMD (SMT)
Case / Package 4-X2SON (1x1)
Win Source Part Number 1109716-TLV71325PDQNR
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian TLV71325PDQNR CAD Model

Description

Product Overview: Texas Instruments TLV71325PDQNR

The TLV71325PDQNR is a high-performance, low-dropout (LDO) voltage regulator from Texas Instruments, designed to deliver a stable and precise 2.5V output voltage. This component is part of the TLV713 series, which is known for providing excellent regulation accuracy, low noise, and high power supply rejection ratio (PSRR), making it an ideal choice for sensitive analog circuits and applications requiring a clean power supply.

Key Features

  • Output Voltage: Fixed 2.5V with high accuracy.
  • Output Current: Capable of sourcing up to 150 mA, suitable for a wide range of applications.
  • Low Dropout: Minimal voltage drop across the regulator, ensuring efficient operation even at low input-to-output voltage differentials.
  • High PSRR: Excellent power supply rejection ratio, which minimizes the effect of supply voltage variations on the output voltage.
  • Low Quiescent Current: Optimized for battery-powered devices, the LDO offers low quiescent current to prolong battery life.
  • Stable with Low ESR Capacitors: The device is stable with ceramic capacitors as low as 1 μF, providing flexibility in design and reducing overall component cost.

Applications

The TLV71325PDQNR is suitable for a variety of applications, including but not limited to:

  • Portable and battery-powered electronics
  • Wireless communication devices
  • Power supplies for sensors and analog circuits
  • Microcontroller or microprocessor power supplies
  • Healthcare and medical equipment

Package and Quality

This LDO voltage regulator is offered in a small 2mm x 2mm X2SON package, which is ideal for space-constrained applications. The device also features over-current and over-temperature protection, ensuring reliable operation and longevity of the product. Moreover, Texas Instruments is known for its commitment to quality, and the TLV71325PDQNR is manufactured to meet high industry standards, providing confidence in its performance and durability.
