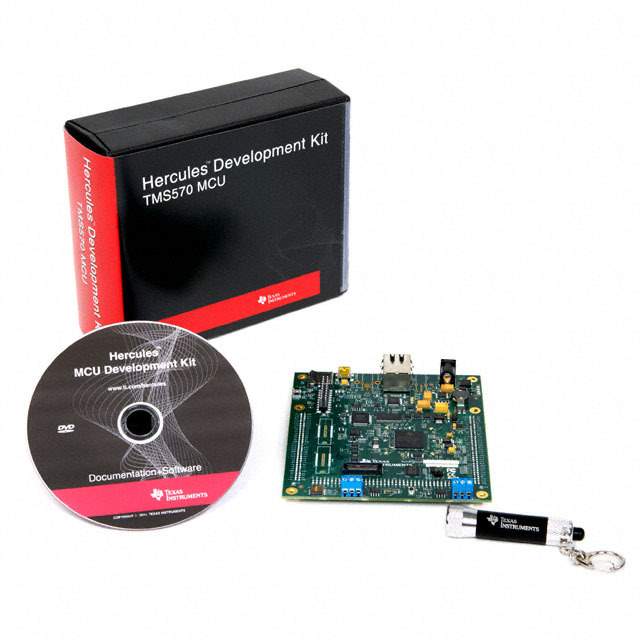

The TMDX570LS31HDK is a highly-integrated development kit designed by Texas Instruments to support the Hercules™ RM57Lx and TMS570LS31x/21x series of safety microcontrollers. This development kit is specifically engineered for automotive and industrial applications that require compliance with safety standards such as IEC 61508 and ISO 26262.

Key Features

• High-Performance MCU: At the heart of the TMDX570LS31HDK is a powerful ARM Cortex-R5 based MCU, optimized for high-reliability and safety-critical applications.
• Comprehensive Development Package: The kit includes a development board, Code Composer Studio™ IDE, HALCoGen peripheral configuration tool, and safety demo software, providing a complete environment for system development and testing.
• Advanced Safety Features: The Hercules™ MCU family offers built-in safety features such as ECC (Error Correction Code), lockstep CPUs, and BIST (Built-in Self-Test) for RAMs, designed to detect and respond to faults, ensuring safe operation.
• Extensive I/O Capabilities: The development board is equipped with a range of peripherals including CAN, Ethernet, LIN, and FlexRay interfaces, making it suitable for a variety of communication requirements.
• Flexible Power Supply: The kit is designed to operate with a wide range of power supplies, from 5V to 12V, accommodating various user scenarios and testing environments.

Development Tools and Support

The TMDX570LS31HDK is supported by an extensive suite of tools for development. The included Code Composer Studio™ IDE integrates compiler, debugger, and profiler in a single environment. HALCoGen enables easy peripheral configuration, while the HET IDE facilitates programming of the high-end timer co-processor, enhancing real-time control capabilities.

Applications

With its robust design and advanced safety features, the TMDX570LS31HDK is ideal for developing systems for automotive safety, industrial control, motor control, and other applications demanding high levels of reliability and safety assurance.

Getting Started

New users can quickly begin development with the TMDX570LS31HDK thanks to comprehensive documentation, user guides, and technical support provided by Texas Instruments. The development kit serves as an excellent starting point for engineers looking to create secure and reliable applications in safety-critical environments.
