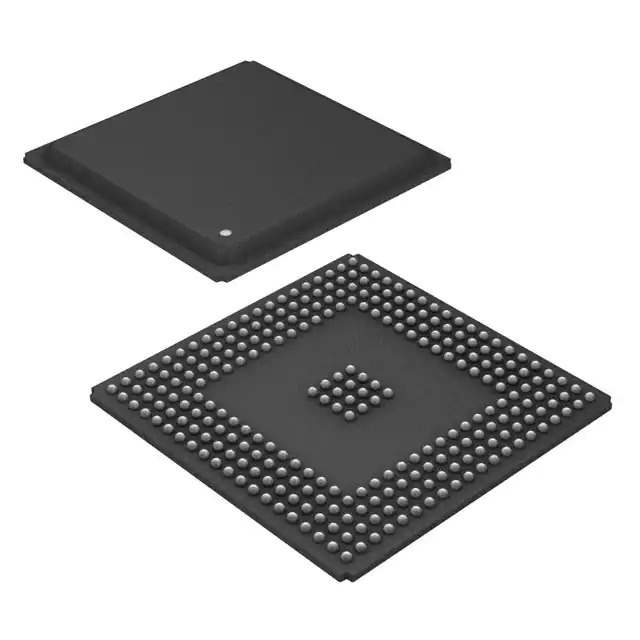

Texas Instruments TMS320C6711CGDP200 Digital Signal Processor

The TMS320C6711CGDP200 is a high-performance digital signal processor (DSP) from Texas Instruments, renowned for its exceptional computational power and efficiency. This processor is part of the TMS320C67xx series, which is designed to meet the rigorous demands of high-speed numeric processing tasks. It is an ideal choice for a wide range of applications, including telecommunications, audio processing, industrial control systems, and digital image processing.

The TMS320C6711CGDP200 operates at a core frequency of 200MHz and is built on advanced VLIW (Very Long Instruction Word) architecture, which allows for multiple instructions to be executed simultaneously. This results in faster processing speeds and improved performance for complex algorithms. The DSP features a 32-bit floating-point processor that is compliant with the IEEE 754 standard, ensuring accurate and reliable computations.

With its large on-chip memory, including 256KB of level 1 (L1) program cache and 256KB of level 1 (L1) data cache, the TMS320C6711CGDP200 can handle large data sets and minimize access times to external memory. Furthermore, the device supports an extended level 2 (L2) cache/memory of 1MB, which can be configured as either cache or memory, providing developers with flexibility in managing memory usage based on their application needs.

Connectivity is a key feature of the TMS320C6711CGDP200, offering a host of peripherals and interfaces. It includes a high-speed direct memory access (DMA) controller, which facilitates efficient data transfers without burdening the CPU. Additionally, it provides a variety of serial and parallel interfaces, including McBSP (Multi-channel Buffered Serial Port) for audio and telecommunication interfaces, and a 32-bit external memory interface (EMIF) that supports SDRAM, SBSRAM, and asynchronous memories.

Designed with power efficiency in mind, the TMS320C6711CGDP200 incorporates several power-saving features, such as multiple power-down modes and a dynamic power management controller, which helps to reduce power consumption during idle periods.

Overall, the TMS320C6711CGDP200 from Texas Instruments is a robust and versatile DSP that delivers exceptional performance for a multitude of high-end processing tasks. Its combination of speed, precision, and connectivity options make it a top choice for engineers and developers looking to push the boundaries of digital signal processing.
