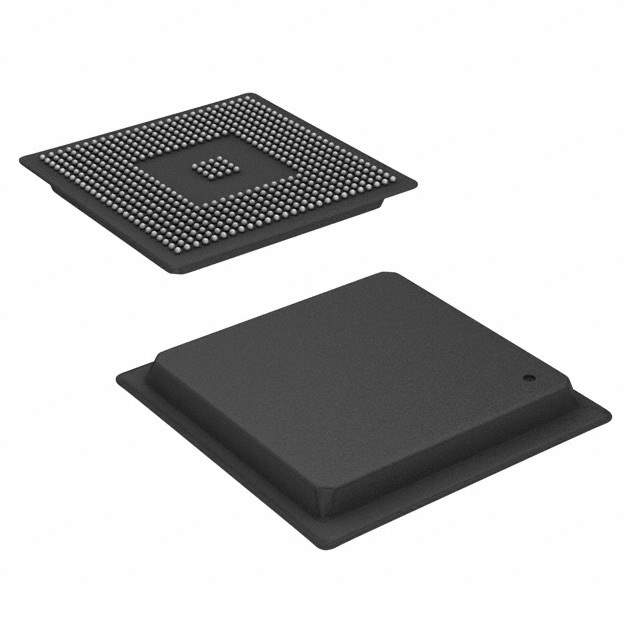

Product Overview: TMS320DM643AZDK6

The TMS320DM643AZDK6 is a powerful digital media processor from Texas Instruments, built on the DaVinci™ technology platform. This high-performance processor is designed to meet the intense processing needs of modern digital media applications. It combines a fixed-point digital signal processor (DSP) core with a rich set of peripherals to provide an optimal solution for multimedia and video applications.

Key Features

• Processing Power: At the heart of the TMS320DM643AZDK6 is a TMS320C64x+™ DSP core that runs at a clock speed of up to 720 MHz, delivering up to 5760 MIPS (Million Instructions Per Second). This makes it ideal for handling multiple, complex digital signal processing tasks simultaneously.
• Memory: The processor is equipped with integrated memory controllers that support DDR2 and other memory types, allowing for flexible and fast memory access to keep up with the demands of high-throughput applications.
• Video Port Interface: It features a Video Port Interface (VPIF) that supports both capture and display, enabling direct connection to external video data sources and displays without the need for additional components.
• Peripheral Support: A host of on-chip peripherals, including Ethernet MAC, I2C, SPI, and several timers, provide extensive connectivity and interface options for system integration.
• Power Efficiency: Designed for power-sensitive applications, the TMS320DM643AZDK6 offers advanced power management features to minimize power consumption during operation and idle states.

Applications

The TMS320DM643AZDK6 excels in a variety of applications, particularly those requiring intensive video and audio processing, such as:

• Set-top boxes
• Portable media players
• Video conferencing systems
• Security and surveillance systems
• Digital signage

Support and Resources

Texas Instruments provides comprehensive support for the TMS320DM643AZDK6, including detailed documentation, software tools, reference designs, and a strong online community through the TI E2E™ support forums. Developers can access a wealth of resources to accelerate the design process and bring their products to market faster.
