The TMS320F28235PTPQ from Texas Instruments is a high-performance digital signal processor (DSP) that is part of the C2000™ family, designed specifically for industrial control applications. This processor is built on a 32-bit CPU platform with a maximum speed of 150 MHz, providing the computational power necessary for advanced algorithms in motor control, power conversion, sensor processing, and other embedded control applications.

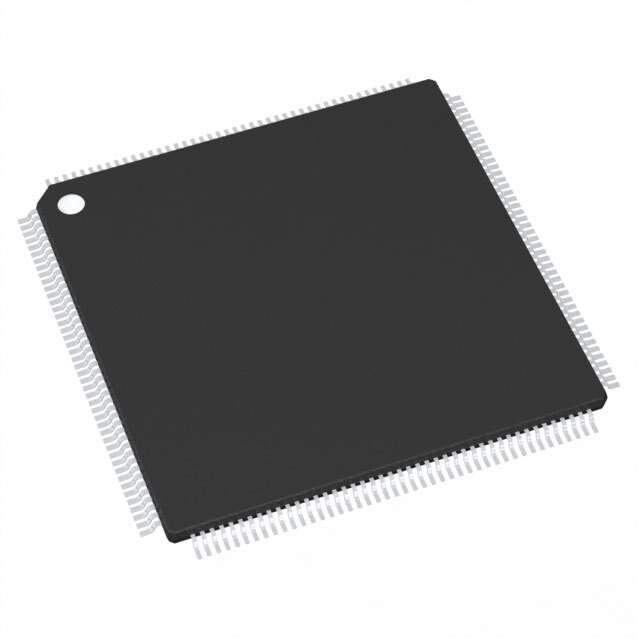

The TMS320F28235PTPQ comes in a 176-pin LQFP (Low-Profile Quad Flat Package), which ensures a compact footprint on the PCB while offering robust connectivity options. This DSP is equipped with an array of features that make it an ideal choice for applications requiring precision and efficiency. It includes 256KB of flash memory, 34KB of RAM, and an integrated floating-point unit (FPU) that enables complex mathematical computations and control algorithms to be executed with high accuracy.

An outstanding feature of this processor is the Control Law Accelerator (CLA), a co-processor that offloads demanding control-loop calculations from the main CPU, which can significantly improve system performance. The TMS320F28235PTPQ also offers a variety of peripherals, such as PWM outputs, analog-to-digital converters (ADCs), and capture inputs, making it highly suitable for real-time control applications.

Connectivity is a key aspect of this DSP, and it does not disappoint with its multiple serial communication interfaces including CAN, SPI, I2C, and UART, which allow for easy integration into existing systems and facilitate communication with other devices. Moreover, the device supports an external interface for additional memory or peripherals, further enhancing its capabilities.

The TMS320F28235PTPQ is supported by Texas Instruments' comprehensive software and hardware development tools, including Code Composer Studio™ and controlSUITE™, which provide developers with a streamlined path for application development and debugging. This ensures that engineers can maximize the DSP's potential and reduce time-to-market for their products.

Whether you are developing advanced motor control systems, renewable energy inverters, or any other precision-driven control application, the TMS320F28235PTPQ offers the performance, flexibility, and reliability that engineers need to create innovative and efficient solutions.
