The TMS320F28374SZWTTR from Texas Instruments is a highly integrated, high-performance solution for demanding control applications. This microcontroller is part of the TMS320F2837x series, which is known for its advanced features and capabilities in processing control algorithms. It is designed to meet the needs of advanced industrial control systems such as motor drives, renewable energy inverters, power supplies, and industrial automation and control.

Key Features

• Dual-Core C28x Digital Signal Processor: The device features two independent C28x cores, providing ample computational power for simultaneous processing of multiple control algorithms.
• CLA Co-Processor: Each core is supported by a Control Law Accelerator (CLA) which is a specialized co-processor designed to execute control algorithms with high speed and efficiency.
• Integrated Analog: The TMS320F28374SZWTTR includes a rich set of analog features such as multiple 12-bit ADCs, DACs, and comparators, reducing the need for external components and simplifying system design.
• Enhanced Connectivity: A variety of communication interfaces are provided, including CAN, I2C, SPI, and UART, facilitating easy integration into a wide range of industrial systems.
• Robust Security Features: Equipped with advanced security features to protect IP, manage software upgrades, and ensure data integrity.
• Real-Time Control: High-resolution PWM outputs and capture inputs enable precise control for real-time applications.

Applications

This microcontroller is ideally suited for applications that require sophisticated control techniques, high-speed processing, and multiple communication protocols. Applications include:

• Advanced Motor Control
• Renewable Energy Systems
• Power Supplies and Converters
• Industrial Automation and Robotics
• Sensor Processing and Monitoring

Package and Availability

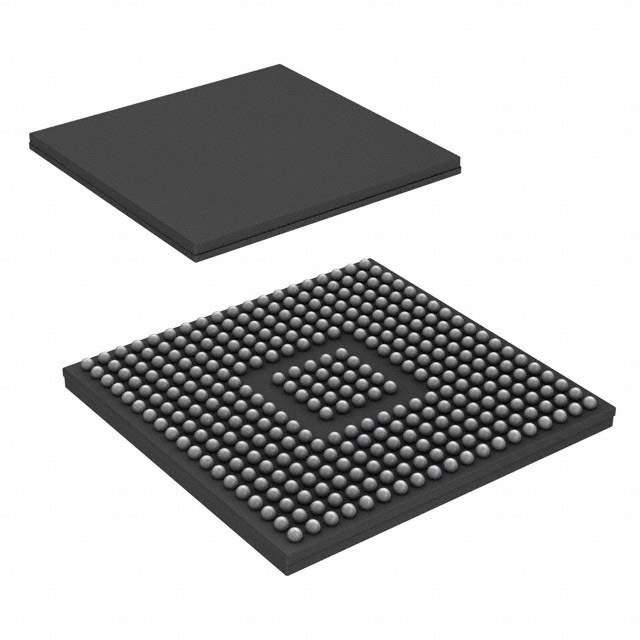

The TMS320F28374SZWTTR comes in a 337-pin BGA (ball grid array) package, ensuring a compact footprint for space-constrained applications. It is available in tape and reel packaging, facilitating ease of use in high-volume production environments.
