The TMUX1109PWR is a high-performance, precision analog multiplexer from Texas Instruments that provides a single-channel 2:1 or dual-channel 1:1 multiplexing configuration. Designed for a range of applications, this device is a part of the TMUX family known for its low on-resistance and low crosstalk between channels, making it an ideal choice for various signal switching requirements.

Key Features

• Low On-Resistance: The TMUX1109PWR boasts an ultra-low on-resistance (RON) of typically 3.5 Ω, which ensures minimal signal distortion and voltage drop across the switch.
• Wide Operating Range: This multiplexer operates over a wide supply range of 1.08 V to 5.5 V, accommodating a variety of logic-level standards and making it suitable for both single and dual supply operations.
• Break-Before-Make Switching: It features break-before-make (BBM) switching, which prevents signal overlap and ensures that no two channels are connected simultaneously, thus avoiding short circuits.
• ESD Protection: The device offers robust Electrostatic Discharge (ESD) protection, safeguarding it against the potential damages caused by static electricity.

Applications

The TMUX1109PWR is versatile and can be used in various applications, including:

• Data Acquisition Systems (DAQ)
• Test and Measurement Equipment
• Audio and Video Signal Routing
• Analog Device Multiplexing
• Communication Systems

Package and Quality

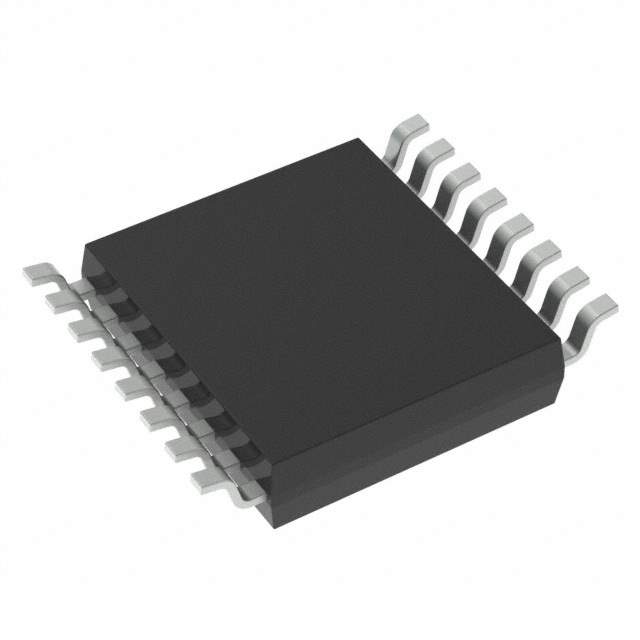

Encased in a TSSOP (Thin Shrink Small Outline Package), the TMUX1109PWR provides a compact footprint suitable for space-constrained applications. Texas Instruments ensures high standards of quality and reliability, and this product is no exception, offering consistent performance across various environmental conditions.

Conclusion

The TMUX1109PWR from Texas Instruments is a testament to the company's commitment to high-quality, reliable components. With its low on-resistance, wide operating range, and ESD protection, this analog multiplexer is an excellent choice for designers looking to optimize their signal routing with minimal signal degradation and power loss.
