The TMUX7309FRRPR is a state-of-the-art precision analog multiplexer from Texas Instruments designed to provide exceptional performance in a wide range of applications. This advanced switch is part of the TMUX7309 series, renowned for its high accuracy and low on-resistance, making it an ideal solution for signal routing in data acquisition systems, test equipment, and other precision analog applications.

Key Features

• Low On-Resistance: The TMUX7309FRRPR boasts an ultra-low on-resistance (Ron) of typically 3 ohms, which minimizes signal distortion and ensures high signal integrity.
• Wide Operating Voltage: It operates across a broad supply voltage range from 1.08 V to 5.5 V, accommodating various system requirements and ensuring compatibility with both single and dual supply operations.
• Single/Dual Supply Operation: The multiplexer's versatile design supports both single and dual supply operation, providing flexibility for a range of power environments.
• Low Charge Injection: Its low charge injection feature reduces switching transients, which is critical for precision measurement systems.
• Break-Before-Make Switching: The TMUX7309FRRPR ensures break-before-make switching, which prevents signal overlap during channel transitions and protects the integrity of the data.
• ESD Protection: Enhanced electrostatic discharge (ESD) protection is built into the device, safeguarding it against unexpected voltage spikes.

Applications

The TMUX7309FRRPR is suitable for a variety of applications where accurate and reliable signal routing is required. Some common applications include:

• Data acquisition systems
• Instrumentation
• Automatic test equipment
• Sample and hold circuits
• Audio and video switching

Package and Quality

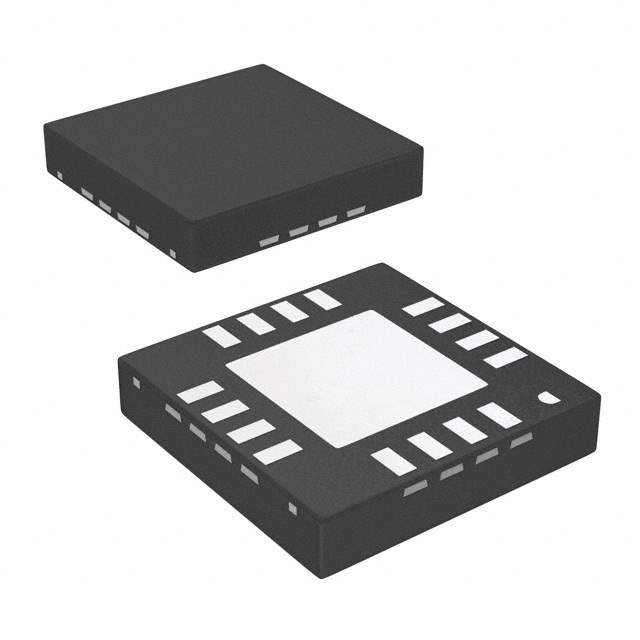

The TMUX7309FRRPR comes in a compact QFN-16 package, designed for space-constrained applications. Texas Instruments' commitment to quality ensures that this device meets the highest standards, with robust performance and reliability across various environmental conditions.

For detailed specifications, application notes, and support documentation, interested parties are encouraged to visit the official Texas Instruments website or contact their local TI sales representative.
