Overview of Texas Instruments' TPA2034D1YZFR

The TPA2034D1YZFR is a high-fidelity, filter-free, Class-D audio amplifier designed by Texas Instruments to provide premium sound quality for portable devices. This miniature, power-efficient component is ideal for applications where space is at a premium and power consumption is a concern, such as smartphones, tablets, and other portable electronics.

Key Features

• Output Power: The TPA2034D1YZFR delivers 2.5W into a 4Ω load with less than 1% THD+N, ensuring loud and clear sound without compromising audio quality.
• Efficiency: As a Class-D amplifier, it offers a high efficiency of up to 90%, which not only conserves energy but also minimizes heat dissipation, extending the battery life of portable devices.
• Filter-Free Operation: The device does not require an output filter, which reduces external component count and simplifies the overall design, while also saving on board space.
• Advanced Modulation Scheme: It utilizes Texas Instruments' proprietary 3D gain modulation scheme which improves efficiency at low output power levels and provides excellent PSRR (Power Supply Rejection Ratio), reducing the need for power supply conditioning.

Technical Specifications

• Supply Voltage: The amplifier operates on a supply voltage range from 2.5V to 5.5V, accommodating a variety of power sources.
• Integrated Depop Circuitry: It features built-in depop circuitry that minimizes turn-on and turn-off pops, ensuring a smooth listening experience.
• Flexible Gain Settings: The gain of the amplifier can be configured through external gain-setting resistors, providing design flexibility to match the desired audio output levels.

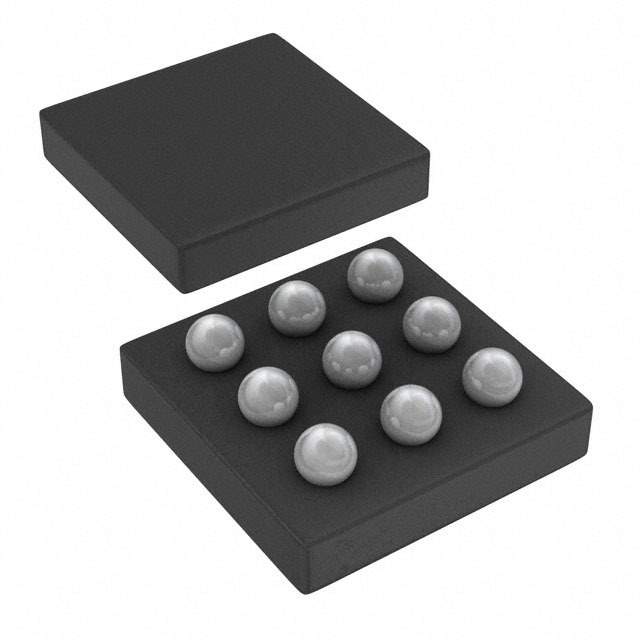

• Packaging: The TPA2034D1YZFR comes in a compact DSBGA package, making it one of the smallest Class-D audio amplifiers available, perfect for space-constrained applications.

Applications

The TPA2034D1YZFR is designed for a variety of portable audio applications. Its small footprint and high efficiency make it an excellent choice for mobile phones, portable media players, digital cameras, handheld gaming devices, and any other portable device that requires high-quality audio amplification.

With its robust design and advanced audio performance features, the TPA2034D1YZFR from Texas Instruments stands out as a top-tier solution for designers looking to enhance the audio experience in their next-generation portable devices.
