The TPD1E10B09QDPYRQ1 is a state-of-the-art circuit protection device from Texas Instruments, designed to safeguard high-speed data lines from electrostatic discharge (ESD) and other voltage-induced transient events. This compact and efficient solution is ideal for a wide range of applications, including USB interfaces, HDMI ports, antenna lines, and other vulnerable circuits in consumer electronics, communication devices, and computing equipment.

Key Features:

• ESD Protection: The device provides robust ESD protection for high-speed data lines, capable of withstanding ESD strikes up to ±10 kV contact discharge and ±20 kV air-gap discharge, as per the IEC 61000-4-2 international standard.
• Low Capacitance: With a low line capacitance of typically 0.9 pF, the TPD1E10B09QDPYRQ1 ensures signal integrity is maintained, making it suitable for high-speed data applications without compromising performance.

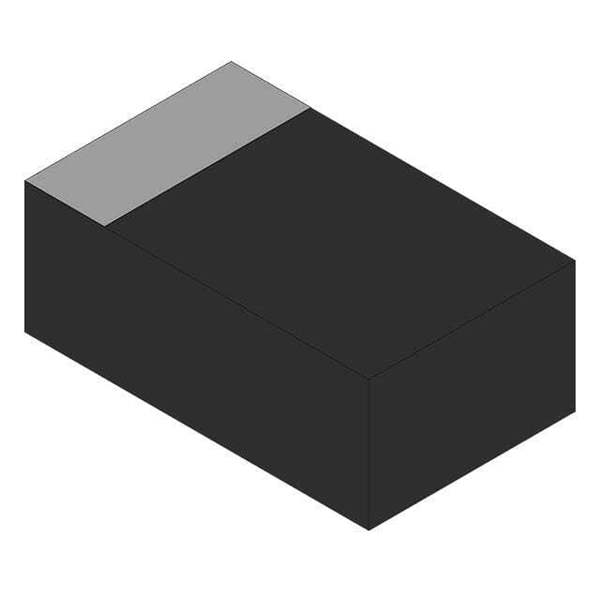

• Small Package Size: The device comes in a tiny 0201 (0.6 x 0.3 mm) DQN package, which is highly beneficial for space-constrained designs, allowing for greater design flexibility and miniaturization of end products.
• Bi-Directional Operation: It offers bi-directional transient voltage suppression, which means it can protect circuits from ESD strikes coming from either direction along the data line.
• Low Leakage Current: The TPD1E10B09QDPYRQ1 exhibits an ultra-low leakage current, typically less than 0.05 µA, which is crucial for power-sensitive applications.
• Integration: Its integrated design simplifies circuit layout and reduces component count compared to discrete solutions, leading to enhanced reliability and reduced board space.

Applications:

• USB 2.0 and 3.0 interfaces
• HDMI 1.3/1.4/2.0 ports
• Antenna lines and RF interfaces
• Portable electronics like smartphones, tablets, and laptops
• Set-top boxes and digital TVs
• Wearable technology

Overall, the TPD1E10B09QDPYRQ1 from Texas Instruments provides an excellent combination of performance, size, and ease of integration, making it an ideal choice for designers looking to enhance the durability and longevity of their high-speed digital interfaces.
