TPD2E001DRSR by Texas Instruments

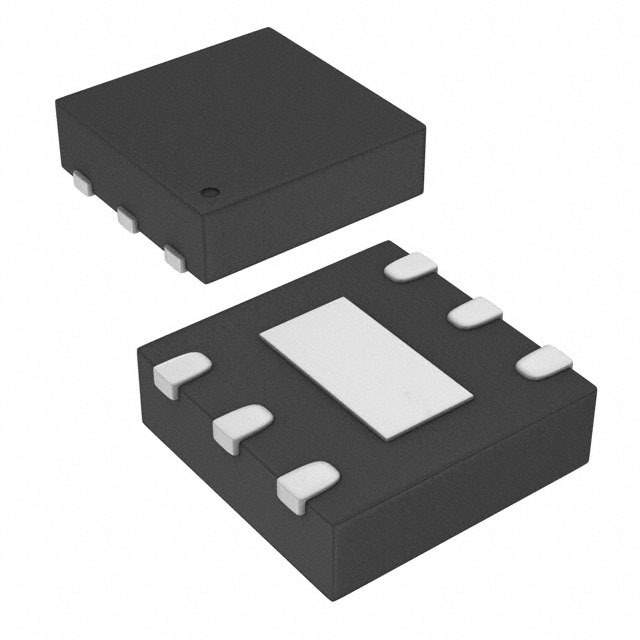

The TPD2E001DRSR is a highly efficient, low-capacitance TVS (Transient Voltage Suppressor) diode array from the reputable manufacturer Texas Instruments. This robust component is designed to provide a state-of-the-art solution for ESD (Electrostatic Discharge) protection in sensitive electronic equipment. Its compact form factor, combined with outstanding protective features, makes it an ideal choice for safeguarding high-speed data lines and I/O ports.

The TPD2E001DRSR comes in a small 6-pin SOT (Small Outline Transistor) package, which is not only space-saving but also offers excellent thermal performance. This device is capable of withstanding ESD strikes of ±8 kV contact discharge and ±15 kV air-gap discharge, as per the IEC 61000-4-2 international standard. This level of protection ensures that your electronics are shielded against the common and potentially damaging ESD events that occur during normal handling and operation.

One of the key features of the TPD2E001DRSR is its low capacitance, typically just 1.5 pF per I/O line. This characteristic is particularly important for maintaining signal integrity in high-speed applications, ensuring that the protected lines can handle data rates without significant signal degradation. As a result, the device is suitable for use with USB 2.0, HDMI, Gigabit Ethernet, and other high-speed interfaces that require minimal capacitive loading.

Additionally, the TPD2E001DRSR offers a low leakage current, which is critical for battery-powered devices where power conservation is a priority. The device also provides a low clamping voltage, which is essential for protecting modern electronics with fine geometries that are more susceptible to damage from overvoltage events.

With its bidirectional transient voltage suppression capability, the TPD2E001DRSR is versatile enough to protect both high-speed differential lines and single-ended signals. Its ease of implementation and compatibility with standard manufacturing processes make it a go-to solution for designers looking to enhance the reliability and longevity of their products without compromising on performance.

Whether you're designing consumer electronics, communication devices, or industrial equipment, the TPD2E001DRSR from Texas Instruments is a reliable and effective choice for comprehensive ESD protection.
