TPD8F003DQDR - Texas Instruments

The TPD8F003DQDR is a state-of-the-art, 8-channel ESD (Electrostatic Discharge) protection device designed and manufactured by Texas Instruments. This component is specifically engineered to safeguard high-speed interfaces from potential damage caused by ESD events, which can be detrimental to electronic systems. The TPD8F003DQDR is an ideal solution for applications requiring high-level signal integrity and robust ESD protection.

Key Features:

• ESD Protection: Provides robust ESD protection for high-speed data lines, capable of withstanding ESD strikes up to ±15kV IEC 61000-4-2 contact discharge, which greatly enhances the durability and longevity of end products.
• Channel Configuration: Features an 8-channel interface, making it highly suitable for protecting multiple lines simultaneously, thus reducing component count and saving board space.
• Low Capacitance: The ultra-low loading capacitance of 0.5 pF (typical) per channel ensures minimal signal distortion, making it perfect for high-speed data applications.

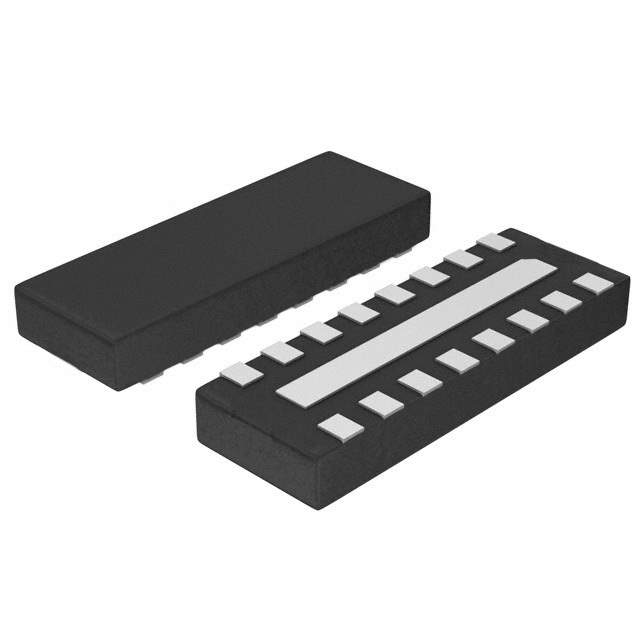

• Small Package: Comes in a space-saving 10-pin DQD (R-PDSO-G) package, allowing for compact PCB design and integration into various electronic devices.
• Wide Operating Range: Operates over a broad temperature range from -40°C to +85°C, providing reliable performance across diverse environmental conditions.

Applications:

The TPD8F003DQDR is versatile and can be used in a wide range of applications, including:

• USB interfaces
• HDMI ports
• DisplayPort connections
• Thunderbolt ports
• General-purpose high-speed data line ESD protection

With its excellent ESD protection, low capacitance, and multi-channel configuration, the TPD8F003DQDR from Texas Instruments is an essential component for designers looking to enhance the resilience and performance of their high-speed digital interfaces. By integrating this ESD solution, manufacturers can ensure their products meet stringent industry standards while providing customers with reliable and durable devices.
