The TPS2202AIDBLE is a state-of-the-art integrated circuit from Texas Instruments, designed to provide a complete power management solution for dual-slot PC Card applications. This innovative product is specifically tailored to meet the power interface requirements for two PC Cards, and is compliant with the PC Card Standard.

Key Features

• Integrated Switching: The device includes two 0.3-Ohm high-side MOSFET switches for power distribution, ensuring efficient power management and distribution to both card slots.
• Current Limiting: It features programmable current limiting for the main 3.3-V, 5-V, and 12-V supplies to the PC Cards, which protects the system from overcurrent conditions.
• Thermal Shutdown: The TPS2202AIDBLE is equipped with thermal shutdown protection that safeguards the device and the system during extreme thermal conditions.
• Short-Circuit Protection: The device provides short-circuit protection to prevent damage from accidental shorts, enhancing system reliability.

Applications

The TPS2202AIDBLE is ideal for a variety of applications that require reliable power management for PC Cards. These include:

• Notebook Computers
• Docking Stations
• PC Card Drives

Technical Specifications

The device operates over a wide range of input voltages and has several key technical specifications that make it suitable for demanding applications:

• Input Voltage Range: 3 V to 5.5 V
• Switch On-Resistance (RON): 0.3 Ohm (typical)
• Operating Temperature: -40°C to 85°C

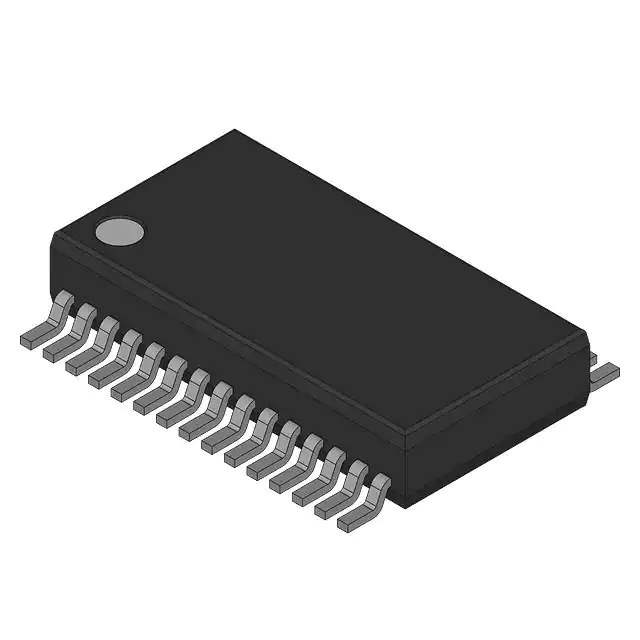

• Package: 30-TSSOP (DBL)

Quality and Reliability

As with all Texas Instruments products, the TPS2202AIDBLE is manufactured to the highest quality standards. Its performance and reliability are backed by Texas Instruments' rigorous testing and quality assurance processes, ensuring that it meets the stringent requirements of the most critical applications.

To learn more about the TPS2202AIDBLE or to place an order, visit the Texas Instruments website or contact your local sales representative.
