Overview of Texas Instruments TPS22908YZTR

The Texas Instruments TPS22908YZTR is a high-performance, single-channel load switch designed for power management applications. This compact and efficient device is part of the TPS22908 family, known for its low on-resistance and minimal power consumption. The TPS22908YZTR is ideal for systems that require efficient power distribution and conservation, making it a suitable choice for portable electronics, battery-powered devices, and smart power distribution systems.

Key Features

• Low On-Resistance: The TPS22908YZTR boasts an ultra-low on-resistance (R<sub>ON), which typically stands at 28 mΩ at a 5.5V supply voltage. This feature ensures minimal voltage drop and power loss across the switch, enhancing overall system efficiency.
• Input Voltage Range: The device supports a wide input voltage range from 1.1V to 5.5V, catering to a variety of power rails and accommodating different system requirements.
• Bidirectional Operation: The switch can handle bidirectional current flow, which is beneficial for applications that require reverse current blocking capabilities.
• Quick Output Discharge: An integrated quick output discharge transistor provides rapid discharge of the output capacitance when the switch is turned off, which is critical for power-down and energy-saving modes.
• Controlled Slew Rate: The TPS22908YZTR features a controlled slew rate to minimize inrush current, which helps prevent system voltage droop and potential damage to sensitive downstream components.

Applications

The versatility and reliability of the TPS22908YZTR make it a prime choice for a wide range of applications, including:

• Smartphones, tablets, and other portable electronics
• Wearable technology
• Power management modules
• Battery-powered equipment
• Point-of-load power distribution systems

Package and Availability

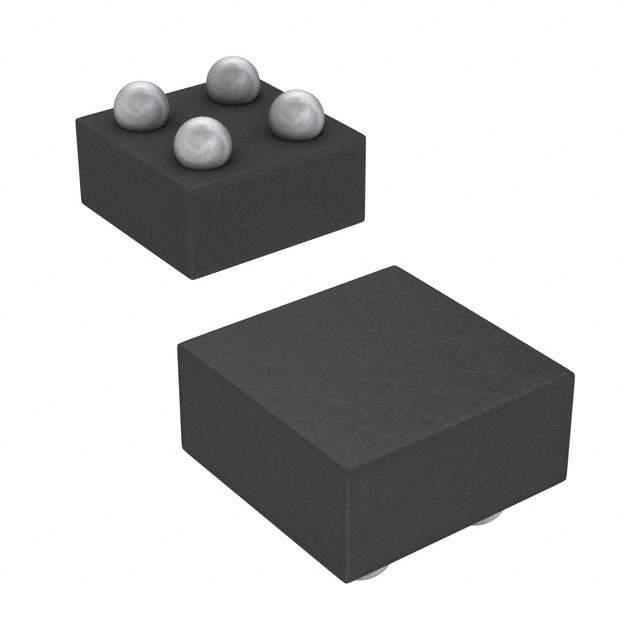

The TPS22908YZTR is offered in a compact, space-saving 6-pin wafer chip-scale package (WCSP), which is highly suitable for applications with limited PCB space. The device is available in tape and reel form, facilitating easy integration into automated manufacturing processes.

With its robust feature set and flexible performance, the Texas Instruments TPS22908YZTR load switch represents a smart solution for designers looking to optimize power efficiency and reliability in their next-generation electronic products.
