Product Overview: TPS22917DBVR by Texas Instruments

The TPS22917DBVR is a compact, high-efficiency, single-channel load switch from Texas Instruments, designed to operate with an input voltage ranging from 0.9V to 5.5V. This versatility makes it an ideal solution for a variety of applications including smartphones, tablets, and other portable electronics where power conservation is crucial.

Featuring a low on-resistance (R<sub>ON) that typically stands at just 58 mΩ at 5V, the TPS22917DBVR ensures minimal voltage drop and power loss, which is essential for maximizing battery life in portable devices. The device also supports a maximum continuous current of up to 2A, making it suitable for handling moderate loads efficiently.

One of the key features of the TPS22917DBVR is its Quick Output Discharge (QOD) function, which allows the output to be discharged quickly when the switch is turned off, thus preventing any unwanted power residue in the downstream components. This feature is particularly important for sensitive applications where residual power can cause erratic behavior or damage.

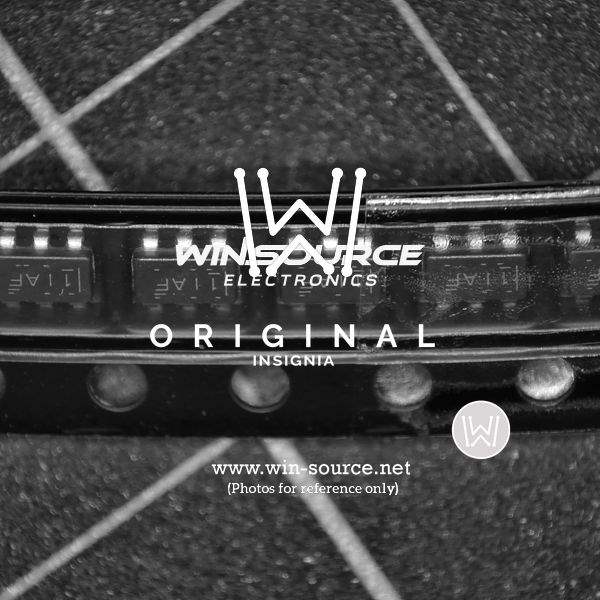

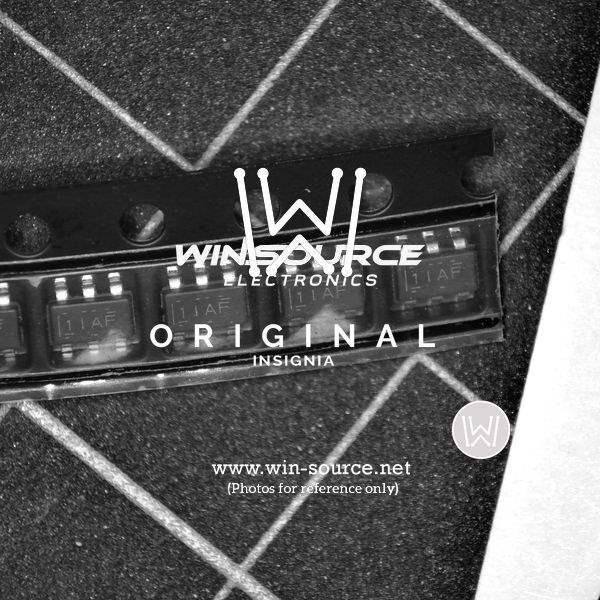

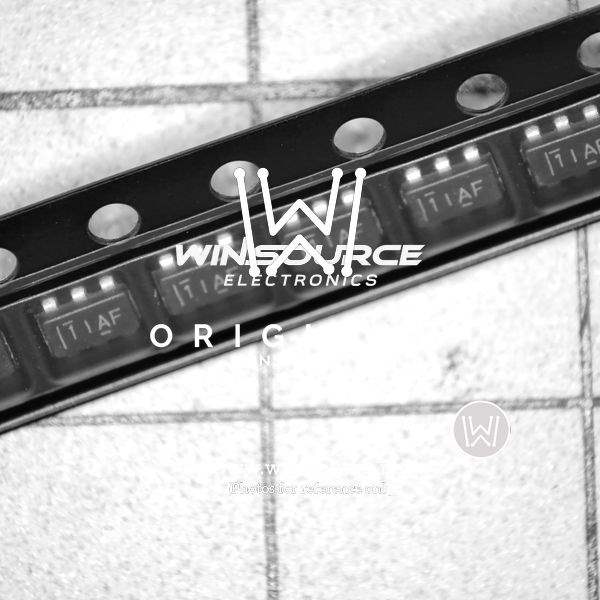

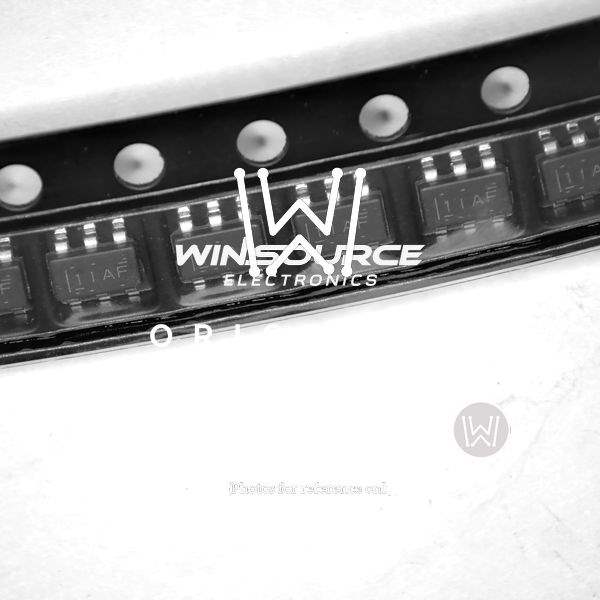

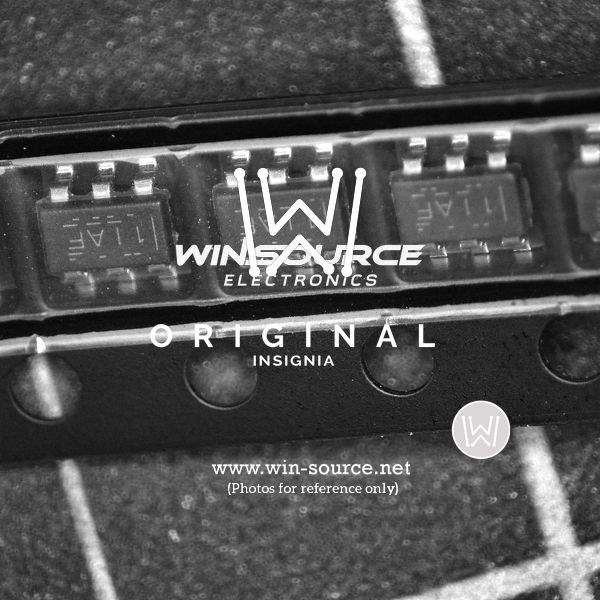

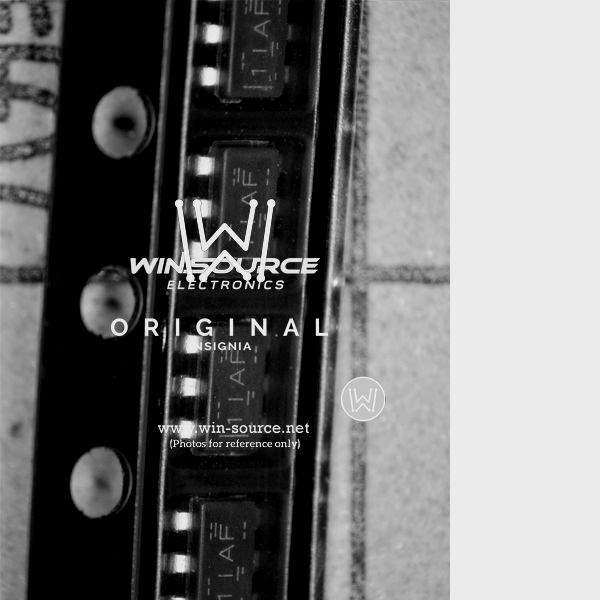

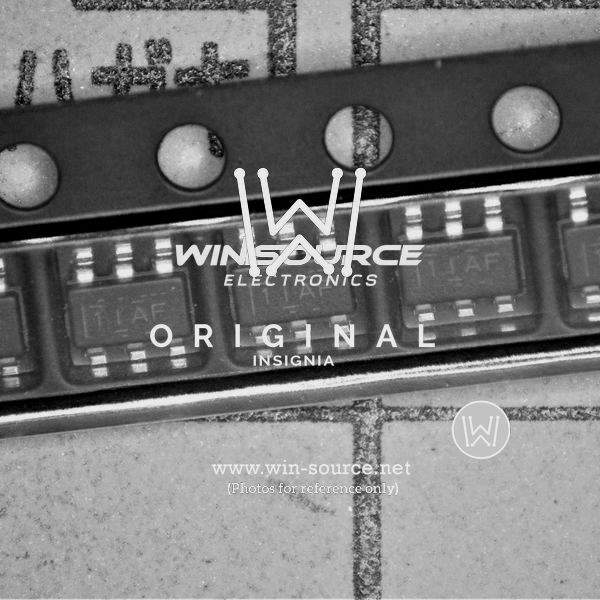

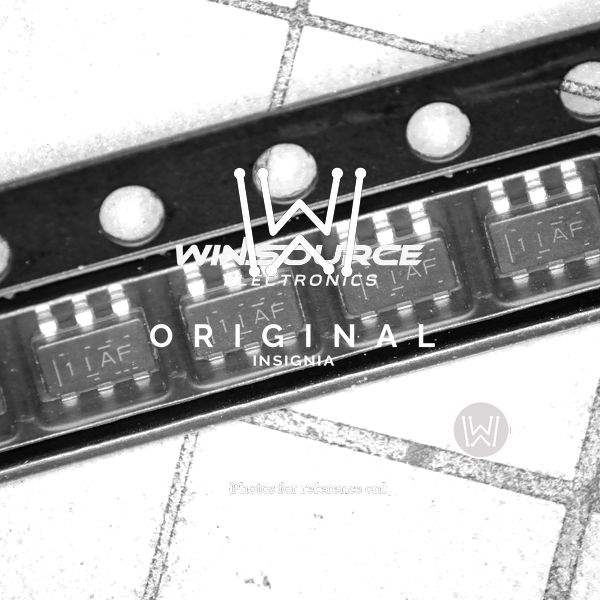

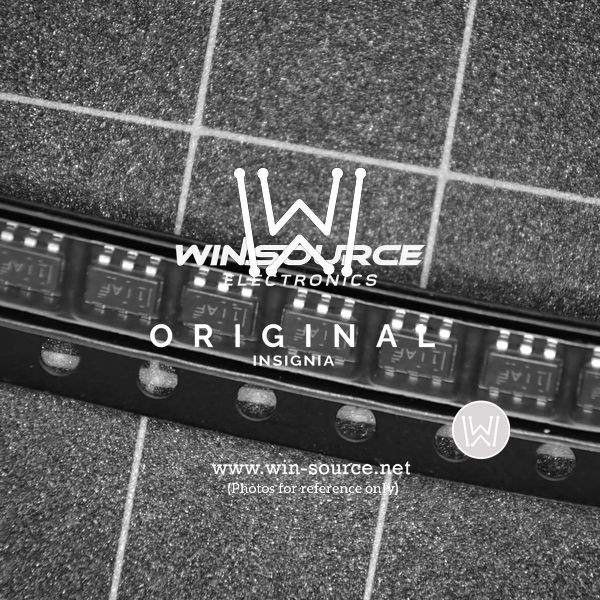

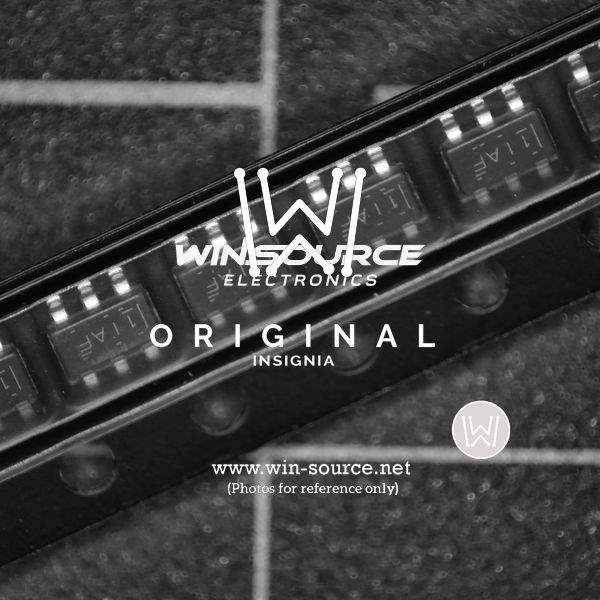

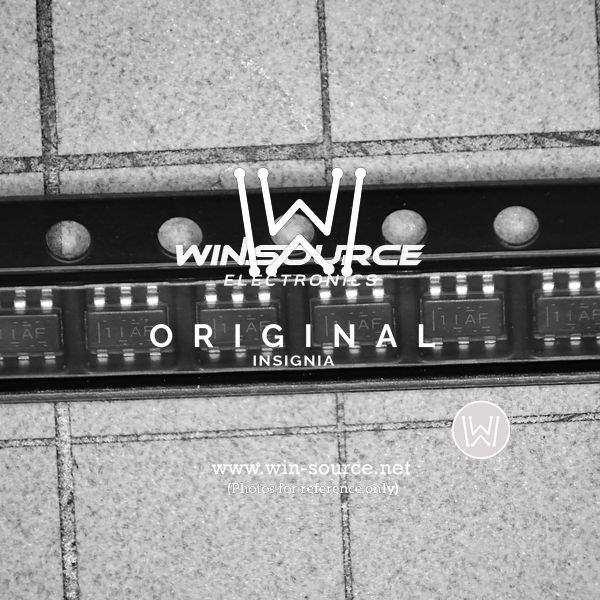

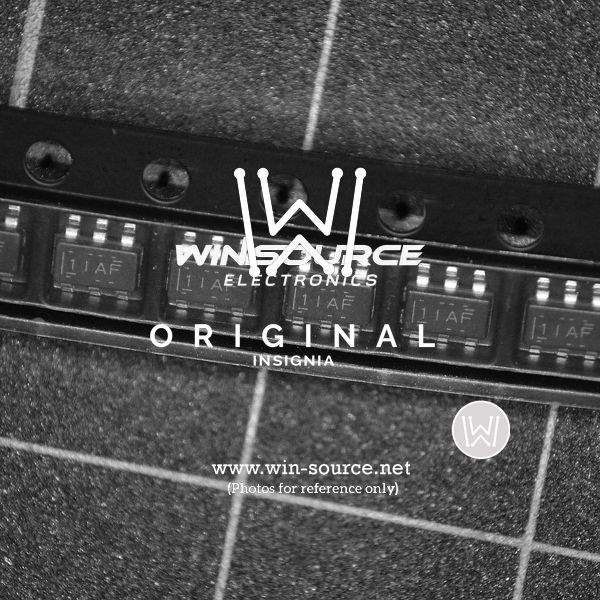

Engineered for ease of use, this load switch comes in a small, 5-pin SOT-23 package, designated as DBVR, which is optimized for space-constrained applications. The TPS22917DBVR also includes a built-in level shifter, allowing it to interface with different logic levels, which is a significant advantage for systems with mixed-voltage environments.

The device incorporates a controlled slew rate that minimizes inrush current, thus reducing the impact on the power source and the potential for system voltage droop when the load is enabled. This feature, combined with the low quiescent current, enhances the overall system stability and efficiency.

For protection, the TPS22917DBVR is equipped with thermal shutdown, which prevents damage from overheating. Additionally, the device is characterized for operation over the free-air temperature range of –40°C to 85°C, ensuring reliable performance under varying environmental conditions.

Overall, the TPS22917DBVR from Texas Instruments is a high-performance load switch that offers a blend of efficiency, protection, and small form factor, making it an excellent choice for designers looking to optimize power management in their next-generation electronic devices.
