Overview of TPS22966TDPUTQ1

The TPS22966TDPUTQ1 is a high-performance, automotive-grade integrated circuit (IC) designed and manufactured by Texas Instruments (TI). This device is a single-channel load switch that offers advanced power management solutions for a wide range of automotive applications. It is specifically engineered to handle the rigorous demands of the automotive industry, providing reliable performance in a variety of conditions.

Key Features

• Wide Input Voltage Range: The TPS22966TDPUTQ1 operates over a broad input voltage range, accommodating various automotive power rails.
• Ultra-Low On-Resistance: This device boasts an ultra-low on-resistance (RON), which enhances efficiency by minimizing power loss across the switch during operation.
• Quick Output Discharge: It features a quick output discharge (QOD) that rapidly turns off the output, ensuring that the load is effectively disconnected when the switch is turned off.
• Adjustable Rise Time: The IC allows for an adjustable rise time, which helps in managing inrush currents, thereby protecting downstream circuits and extending system reliability.
• Thermal Shutdown Protection: With built-in thermal shutdown protection, the TPS22966TDPUTQ1 prevents overheating, thereby safeguarding the IC and the system from thermal damage.
• Automotive Grade: As a Q1 automotive-grade device, it meets the stringent quality and reliability standards required for automotive applications.

Applications

The versatile nature of the TPS22966TDPUTQ1 makes it suitable for a variety of automotive applications, including but not limited to:

• Infotainment Systems
• Advanced Driver Assistance Systems (ADAS)
• Body Control Modules
• Navigation and Telematics

Package and Availability

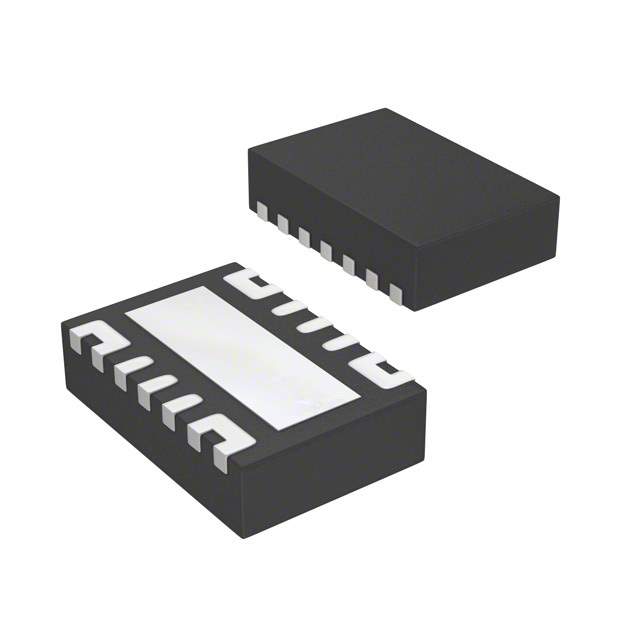

The TPS22966TDPUTQ1 comes in a compact, thermally-enhanced package, which is designed to fit into space-constrained automotive environments while providing excellent thermal performance. This IC is available for order through Texas Instruments' official website and authorized distributors, ensuring easy access for automotive system designers and manufacturers.

For detailed technical specifications, application notes, and support resources, interested parties are encouraged to visit the Texas Instruments website or contact their local TI sales representative.
