Product Overview: TPS2561DRCEVM-424 Evaluation Module

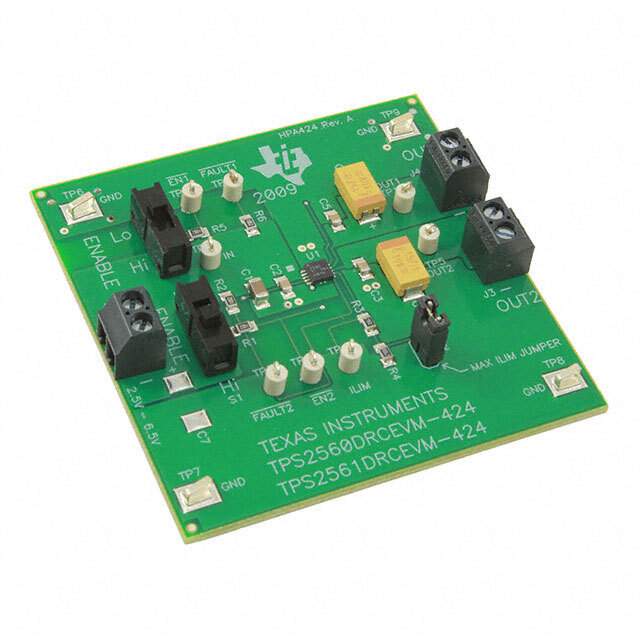

The TPS2561DRCEVM-424 from Texas Instruments is a state-of-the-art evaluation module designed to demonstrate the functionality and versatility of the TPS2561DRC precision dual channel power distribution switch. This module is an essential tool for engineers and developers who need to assess the performance of the TPS2561DRC in various applications, including USB power distribution, power management, and other systems requiring a controlled power distribution mechanism.

The TPS2561DRC, which lies at the heart of the EVM, is a highly integrated circuit that provides two independent channels with adjustable current-limit thresholds. This allows for fine-tuning to meet specific system requirements, ensuring reliable protection against overcurrent conditions and short circuits.

The evaluation module offers a compact and user-friendly platform, with all necessary test points and jumpers accessible for easy experimentation and analysis. It features a range of input and output connectors that facilitate the connection to external test and application circuits. The TPS2561DRCEVM-424 is designed to accommodate a wide input voltage range, making it suitable for a variety of power sources.

Users can leverage the TPS2561DRCEVM-424 to explore the dual channel power switch's features, such as its precision current limit, fast overcurrent response, and built-in thermal shutdown protection. The EVM also showcases the device's under-voltage lockout capability, ensuring that the power switch operates only when the input voltage is within the specified range.

The TPS2561DRCEVM-424 is an invaluable resource for design verification and rapid prototyping. It significantly reduces development time by providing a proven platform for immediate testing, allowing for a quick assessment of the TPS2561DRC's performance in the intended application. It comes with comprehensive documentation, including a user guide that provides detailed instructions on how to configure and operate the EVM effectively.

In summary, the TPS2561DRCEVM-424 Evaluation Module is a must-have for any professional seeking to incorporate Texas Instruments' precision power distribution technology into their designs. It offers a practical and efficient solution for validating the TPS2561DRC's capabilities and expediting the design process.
