Overview of Texas Instruments TPS259531DSGR

The TPS259531DSGR from Texas Instruments is an advanced circuit protection and power management device designed to safeguard and control low-voltage system power supplies. This eFuse, or electronic fuse, offers an array of features that make it an ideal choice for a variety of applications, including enterprise and consumer electronics, where precise power regulation and protection are crucial.

Key Features

• Adjustable Overcurrent Protection: The TPS259531DSGR provides users with the ability to set the overcurrent protection threshold, ensuring devices are safe from excessive current that could lead to damage or failure.
• Fast Overvoltage Protection: This eFuse reacts quickly to overvoltage events, protecting downstream components from voltage spikes and surges that could otherwise compromise their integrity.
• Programmable Under Voltage Lock Out (UVLO): Users can program the under-voltage lockout to ensure the device only operates within a safe voltage range, preventing undervoltage conditions that could lead to erratic system behavior or damage.
• Thermal Shutdown: An integrated thermal shutdown feature protects the TPS259531DSGR itself and connected components from overheating, thereby enhancing system reliability.
• Reverse Current Blocking: This function prevents current from flowing backward into the source when the device is powered down or in a fault condition, protecting against potential damage.

Applications

The versatility of the TPS259531DSGR makes it suitable for a wide range of applications. It's commonly used in USB ports, set-top boxes, solid-state drives, and other consumer electronics that require precise power control and protection. Additionally, its robust feature set makes it suitable for industrial and automotive applications where reliability under harsh conditions is paramount.

Design and Integration

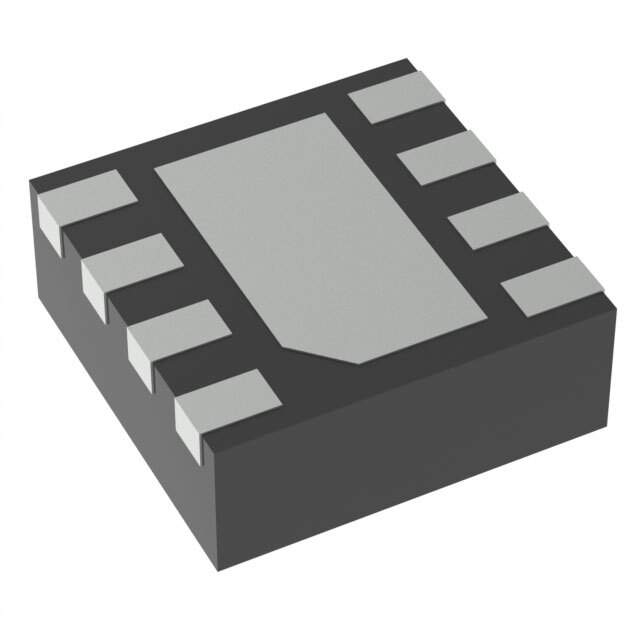

With its small footprint, the TPS259531DSGR is designed for space-constrained applications. The device comes in a compact 3.5 mm × 3.5 mm, 8-pin WSON package, making it easy to integrate into existing and new designs. The eFuse's programmable features can be configured through external resistors, which allows for a high degree of customization without the need for complex software or firmware changes.

Overall, the TPS259531DSGR by Texas Instruments is a comprehensive solution for power supply protection and management, ensuring that electronic systems operate safely and reliably.
