Product Overview: TPS27082LDDCR by Texas Instruments

The TPS27082LDDCR is a high-side load switch designed by Texas Instruments (TI) that offers a compact and efficient solution for power management in electronic systems. This advanced switch integrates multiple features to enhance system performance and reliability, making it an ideal choice for a wide range of applications, including portable electronics, battery management, and power distribution systems.

Key Features

• Input Voltage Range: The device operates over a wide input voltage range from 1.5V to 8V, accommodating a variety of power sources and ensuring compatibility with both low and high voltage systems.
• Low On-Resistance: The TPS27082LDDCR boasts an ultra-low on-resistance (R_ON) of just 28mΩ at a 5V gate drive, minimizing power loss and improving efficiency during operation.
• Adjustable Rise Time: An externally adjustable rise time allows designers to tailor the turn-on characteristics to specific application requirements, helping to manage inrush currents and reduce power supply noise.
• Quick Output Discharge: The integrated quick output discharge feature provides a rapid power-down capability, ensuring that the load is effectively turned off when the switch is disabled.

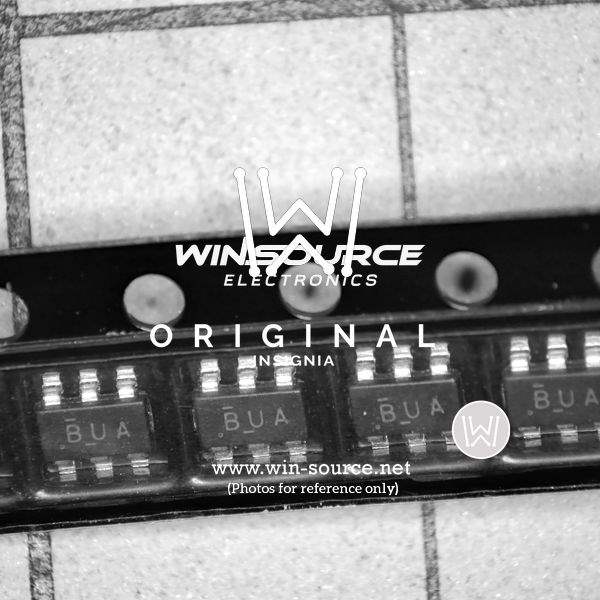

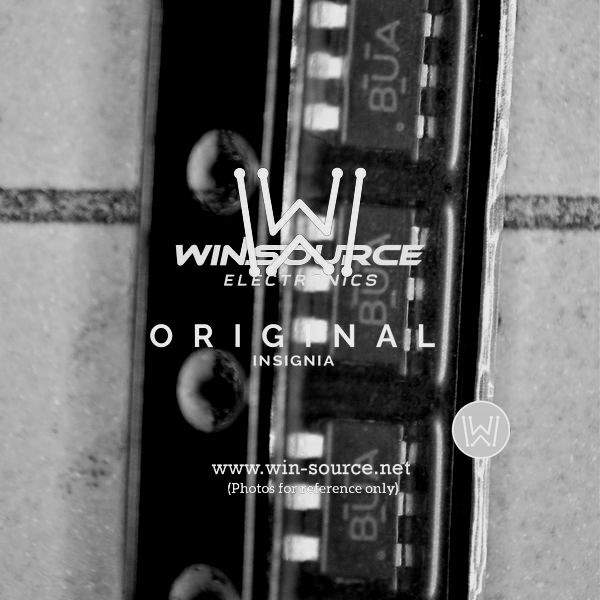

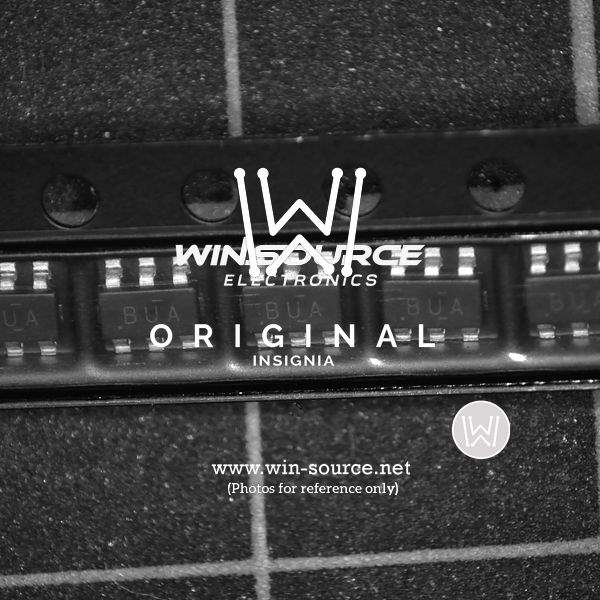

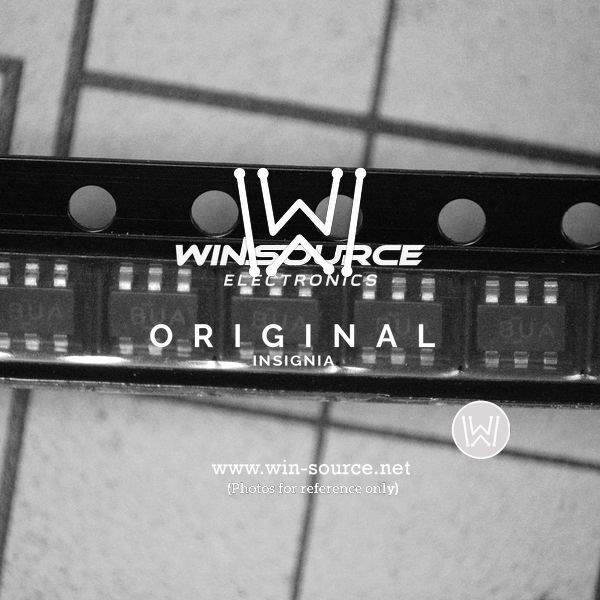

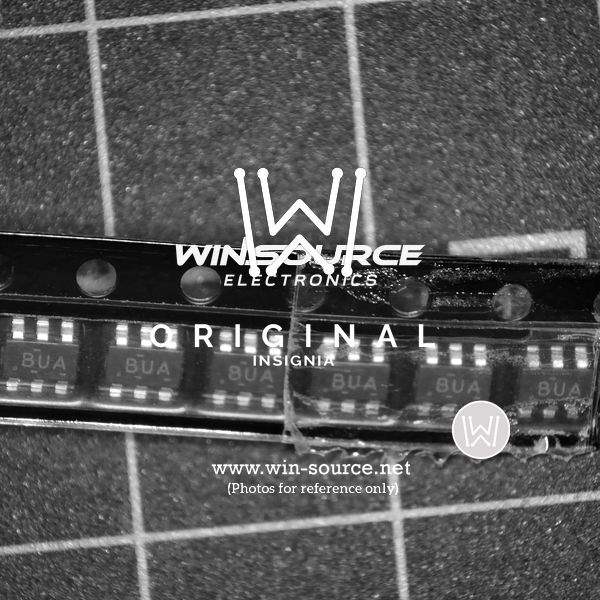

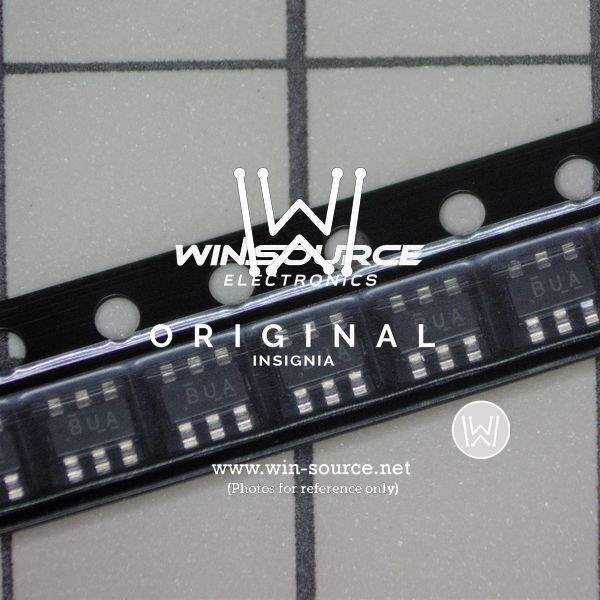

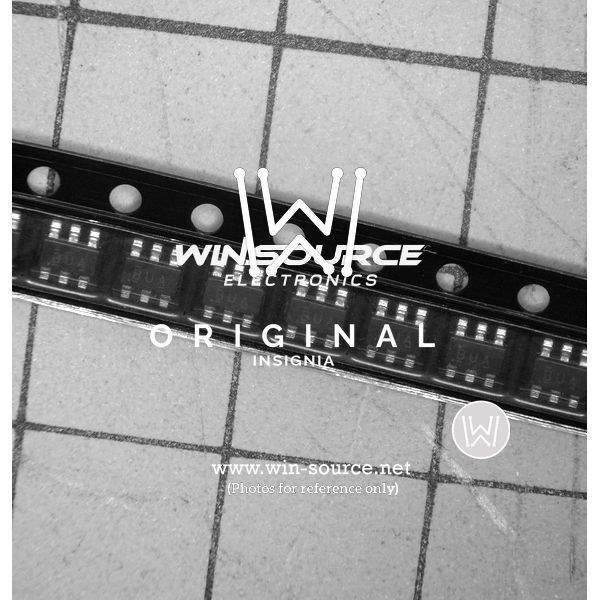

• Small Package: Housed in a tiny 6-pin SOT-23 package, the TPS27082LDDCR saves valuable board space and is suitable for space-constrained applications.

Applications

The versatility of the TPS27082LDDCR makes it suitable for a multitude of applications. It can be used in:

• Smartphones, tablets, and wearable devices
• Wireless and IoT devices
• Battery-powered equipment
• Power banks and portable chargers
• Energy harvesting systems

Design and Integration

Integrating the TPS27082LDDCR into a design is straightforward, thanks to its simple control interface and minimal external component requirements. The device can be controlled with a single GPIO from a microcontroller, allowing for easy on/off functionality. Its built-in level shifter ensures compatibility with different logic levels, simplifying the connection to various control interfaces.

Overall, the TPS27082LDDCR from Texas Instruments is a high-performance, reliable, and versatile solution for power switching applications that demand minimal power loss and space efficiency. Its robust feature set ensures that it can meet the stringent requirements of modern electronic devices.
