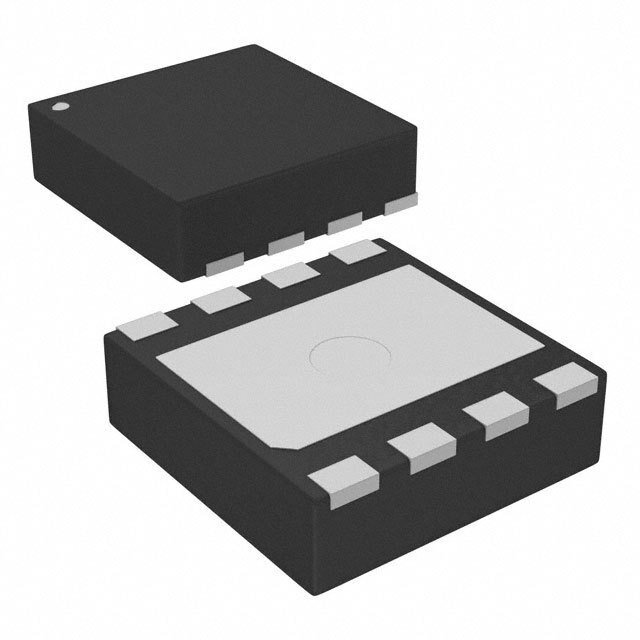

The TPS28226DRBR is a high-speed, dual-channel synchronous buck gate driver from Texas Instruments, designed to drive both the high-side and low-side N-channel MOSFETs in a synchronous buck converter. This driver is housed in a compact 8-pin SON package, making it ideal for space-constrained applications requiring efficient power management.

Key Features

• High-Frequency Operation: The TPS28226DRBR is capable of high-frequency operation, with switching frequencies up to 2MHz. This allows for smaller external components and a more compact overall design.
• Adaptive Gate Drive: It offers adaptive gate drive voltages for both high-side and low-side MOSFETs, ensuring optimal switching performance and efficiency across a range of operating conditions.
• Robust Under-Voltage Lockout: The under-voltage lockout (UVLO) feature ensures that the driver operates only when the supply voltage is sufficient, protecting the MOSFETs from insufficient gate drive and potential damage.
• Cross-Conduction Prevention: Built-in cross-conduction prevention logic minimizes the risk of shoot-through by ensuring that both MOSFETs are not on at the same time.
• Independent Inputs: Separate input pins for the high-side and low-side drivers provide design flexibility and the ability to implement advanced control schemes.

Applications

The TPS28226DRBR is versatile and can be used in a wide array of applications, including but not limited to:

• DC/DC Converters
• Computing and Server Power Supplies
• Telecommunications Equipment
• Industrial Power Systems
• Point of Load (POL) Modules

Reliability and Performance

Designed with Texas Instruments' commitment to reliability, the TPS28226DRBR offers excellent thermal performance and long-term durability. It operates over a wide temperature range and is built to withstand the rigorous demands of modern electronic systems. Whether for use in commercial, industrial, or high-reliability environments, the TPS28226DRBR gate driver is an excellent choice for your power management needs.
