The TPS3702CX33DDCT is a high-precision, overvoltage and undervoltage monitor with a fixed-sense threshold voltage from Texas Instruments. Designed to offer a compact and efficient solution for voltage tracking applications, this device is an essential component in various electronic systems where precise voltage monitoring is crucial.

Key Features:

• Fixed Threshold Voltage: The device comes with a preset threshold voltage of 3.3V, which simplifies the design process as there is no need for external resistors to set the monitoring threshold.
• High Accuracy: Offering a threshold accuracy of ±0.5%, the TPS3702CX33DDCT ensures reliable performance even in applications where precision is key.
• Low Quiescent Current: With a quiescent current of just 6.5 µA, this voltage monitor is an excellent choice for power-sensitive designs, helping to extend battery life in portable devices.
• Wide Operating Range: The device operates over a wide supply voltage range from 1.8V to 5.5V, making it versatile for use in a variety of circuit configurations.
• Fast Response Time: It features a fast response time, which is critical for systems that require immediate action when a voltage fault is detected.
• Output Configuration: The open-drain output of the TPS3702CX33DDCT allows for easy interfacing with other logic components and provides the flexibility to connect the output to a higher voltage rail if necessary.

Applications:

The TPS3702CX33DDCT is suitable for a wide array of applications, including:

• Power supply monitoring
• Battery-powered equipment
• Processors and microcontrollers
• Portable and handheld devices
• Automotive and industrial systems

Package and Quality:

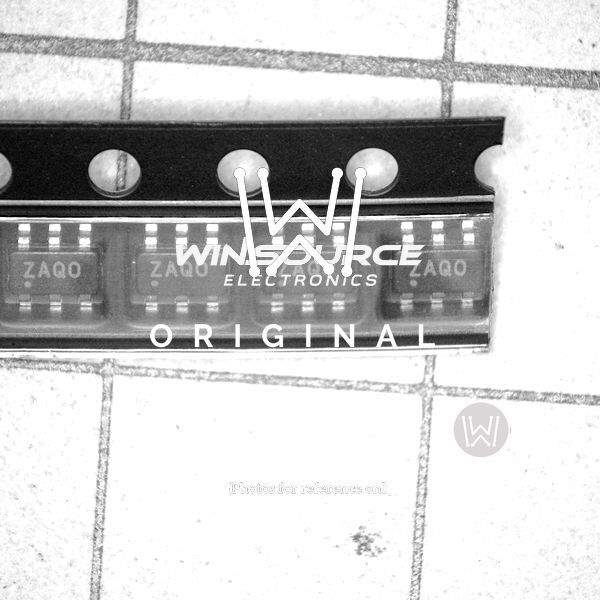

Encased in a small, 6-pin SOT-23 package, the TPS3702CX33DDCT is designed for space-constrained applications. Texas Instruments' commitment to quality ensures that this voltage monitor meets the industry's highest standards, providing reliable and consistent performance.
