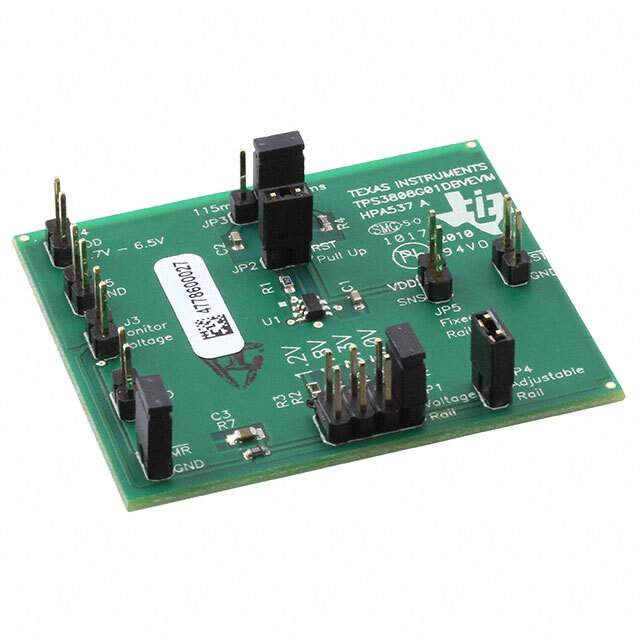

Overview of TPS3808G01DBVEVM

The TPS3808G01DBVEVM is an evaluation module designed by Texas Instruments to facilitate the testing and performance evaluation of the TPS3808 family of supervisory circuits. This particular module showcases the capabilities of the TPS3808G01, a high-accuracy programmable delay supervisor with manual reset functionality.

Key Features

• Adjustable Supervisory Voltage: The TPS3808G01DBVEVM allows users to monitor a programmable supervisory voltage threshold, ensuring that the system operates within safe voltage levels.
• Programmable Time Delay: This EVM includes a programmable time delay feature which can be set via external components, providing flexibility for various application requirements.
• Manual Reset: The inclusion of a manual reset input offers an additional layer of control, allowing users to manually initiate a system reset when necessary.
• Low Power Consumption: Designed for power-sensitive applications, the TPS3808G01 device boasts low quiescent current, reducing the overall power consumption of the system it monitors.
• Small Footprint: The EVM comes in a compact form factor, making it easy to integrate into existing setups without requiring significant board space.

Applications

The TPS3808G01DBVEVM is well-suited for a wide range of applications, including but not limited to:

• Portable and battery-powered equipment
• Industrial control systems
• Automotive electronics
• Networking and telecom infrastructure

Easy to Use and Integrate

With all necessary components pre-assembled, the TPS3808G01DBVEVM is ready for immediate use out of the box. It provides convenient access to all the features of the TPS3808G01, and its user-friendly interface ensures that both professionals and hobbyists can quickly begin evaluating the supervisor circuit's performance.

Support and Resources

Texas Instruments offers comprehensive support for the TPS3808G01DBVEVM, including detailed documentation, application notes, and reference designs. Users can also access TI's online community and technical support for guidance and troubleshooting.

Whether you're developing a new product or optimizing an existing system, the TPS3808G01DBVEVM offers a reliable and efficient solution for supervisory circuit evaluation and testing.
