Overview of Texas Instruments TPS51113DRCRG4

The Texas Instruments TPS51113DRCRG4 is a high-performance, synchronous step-down controller designed for low-voltage power rail applications. It is particularly suitable for powering advanced microprocessors in notebooks, graphics cards, and other portable electronics where efficient power conversion is crucial. This device features an adaptive on-time D-CAP™ control mode, which provides a fast transient response, simplifies circuit design, and supports ceramic output capacitors without an external compensation circuit.

Key Features

• Input Voltage Range: The TPS51113DRCRG4 operates with an input voltage range of 3 V to 28 V, making it versatile for various power supply configurations.
• Efficiency: The device's synchronous step-down conversion enables high efficiency, which is essential for extending battery life in portable applications.
• Output Voltage: It supports an adjustable output voltage from 0.76 V to 5.5 V, allowing it to cater to a wide range of low-voltage power needs.
• Current Mode Control: The current mode control provides excellent load and line regulation, ensuring stable operation under varying conditions.
• Protection Features: It includes a range of protection features such as overvoltage, undervoltage lockout, thermal shutdown, and short-circuit protection, enhancing the safety and reliability of the end application.

Applications

The TPS51113DRCRG4 is ideal for powering core voltages of processors and ASICs. Its efficiency and fast transient response make it an excellent choice for:

• Notebook Computers
• Graphics Cards
• Memory Power Supplies
• Low-Voltage Power Rails in Portable Electronics

Package and Availability

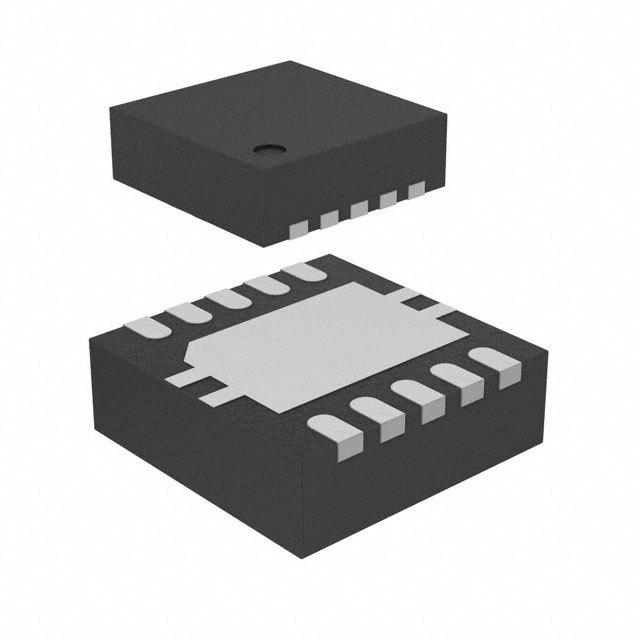

The device is available in a compact 10-pin VSON package, which is suitable for space-constrained applications. The TPS51113DRCRG4's small form factor, combined with its power density, makes it a practical choice for modern electronics where efficiency and size are critical.

As a leading semiconductor product from Texas Instruments, the TPS51113DRCRG4 stands out for its adaptability, efficiency, and robust protection features, making it a top choice for designers looking to create reliable and efficient power management solutions.
