The TPS51117RGYRG4 is a specialized integrated circuit (IC) from the renowned manufacturer Texas Instruments, designed to provide a comprehensive power management solution for a wide range of applications. This particular IC is part of the TPS51117 series, which is known for its synchronous step-down controller functionality, primarily used in the regulation of low-voltage power supplies.

Key Features

• Efficiency: The TPS51117RGYRG4 offers high efficiency through its synchronous buck controller, which reduces power loss by controlling both the high-side and low-side MOSFETs.
• Voltage Regulation: This device provides accurate voltage regulation with a 0.7V reference voltage, suitable for low-voltage applications that require precise control.
• Adaptive On-Time (AOT) Control: The IC incorporates an adaptive on-time control mode that ensures fast transient response and simplifies the circuit design by eliminating the need for external compensation components.
• Power Saving Modes: It includes both Eco-mode™ and pulse skipping modes for light load efficiency, thereby reducing power consumption when the system is idle or under light load conditions.
• Protection Features: The TPS51117RGYRG4 is equipped with a comprehensive set of protection features, including overcurrent protection (OCP), overvoltage protection (OVP), and thermal shutdown, ensuring the safety and longevity of the device.

Applications

The versatility of the TPS51117RGYRG4 makes it suitable for a variety of applications, including:

• Notebook and Ultrabook™ computers
• Low-power FPGAs and DSPs
• Graphics and add-on cards
• Point-of-load conversions in networking and telecommunication equipment
• Set-top boxes and other consumer electronics

Technical Specifications

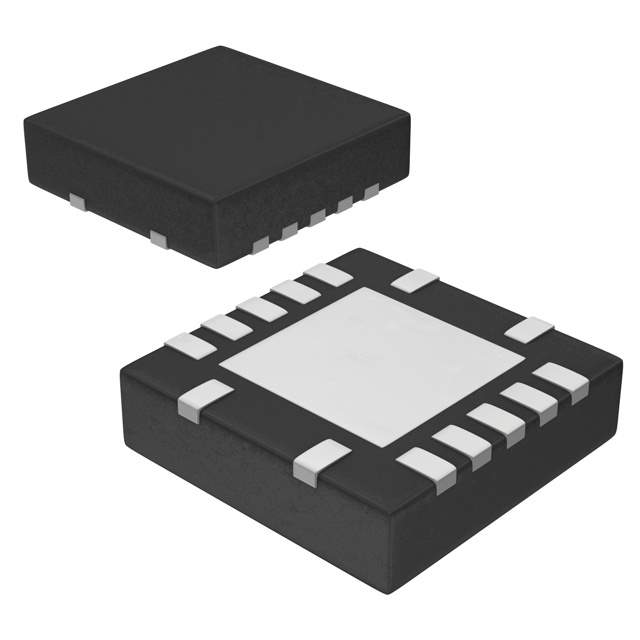

The TPS51117RGYRG4 comes in a compact 14-VQFN (RGY) package and operates within a junction temperature range of -40°C to 150°C. It requires an input voltage between 3V to 28V and supports output currents up to the ampere range specified in the datasheet. The device's switching frequency is programmable and can be set according to the needs of the specific application.

With its combination of efficiency, flexibility, and protective features, the TPS51117RGYRG4 from Texas Instruments stands out as a robust solution for power management requirements in a wide array of electronic systems.
