Product Overview: Texas Instruments TPS54521RHLT

The TPS54521RHLT is a high-performance, adaptive on-time D-CAP2™ mode synchronous buck converter from the reputable Texas Instruments. This advanced power solution is designed to provide exceptional power management and efficiency for a wide range of applications, including distributed power systems, pre-regulation for linear regulators, and point-of-load power supplies.

Key Features

• Input Voltage Range: The TPS54521RHLT operates with an input voltage range of 4.5V to 17V, making it versatile for various power supply scenarios.
• Output Current Capability: It is capable of delivering up to 5A of continuous output current, ensuring reliable performance for demanding applications.
• High Efficiency: With its integrated 44mΩ high-side and 19mΩ low-side MOSFETs, it achieves high efficiency at a wide range of load conditions.
• Advanced Control: The D-CAP2™ control mode provides a fast transient response, which is essential for applications requiring a stable power supply.
• Adjustable Switching Frequency: Users can set the switching frequency from 200kHz to 1.2MHz, allowing flexibility in optimizing the performance for specific applications.
• Thermal Management: The device features thermal shutdown protection, ensuring safe operation under high temperature conditions.

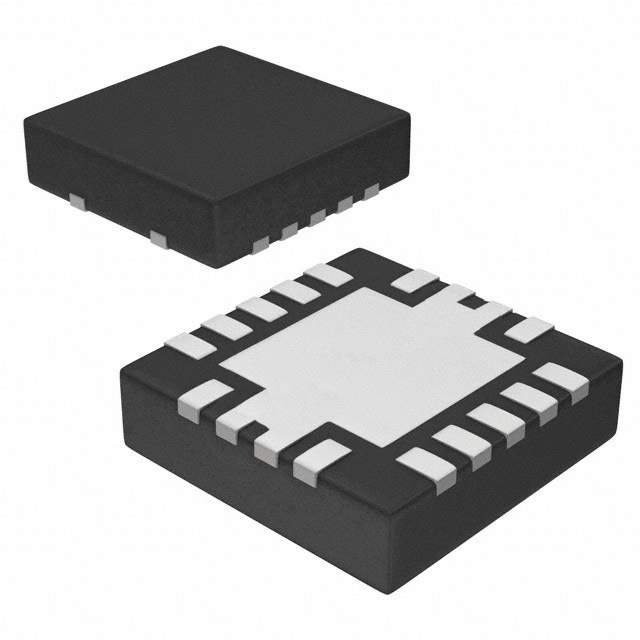

• Compact Package: Housed in a 14-pin VQFN-HR package, the TPS54521RHLT has a compact footprint suitable for space-constrained applications.

Applications

The TPS54521RHLT is ideal for a variety of applications, including:

• Telecommunications and networking equipment
• Consumer electronics
• Computing and storage systems
• Industrial and automotive systems

Quality and Reliability

As with all Texas Instruments products, the TPS54521RHLT is manufactured to high standards, ensuring reliability and performance. It is designed to meet the rigorous demands of modern electronic devices, providing a dependable power management solution.

For detailed technical specifications, application notes, and support resources, customers can visit the Texas Instruments website or contact their support team. The TPS54521RHLT represents TI's commitment to innovation and excellence in power management technology.
