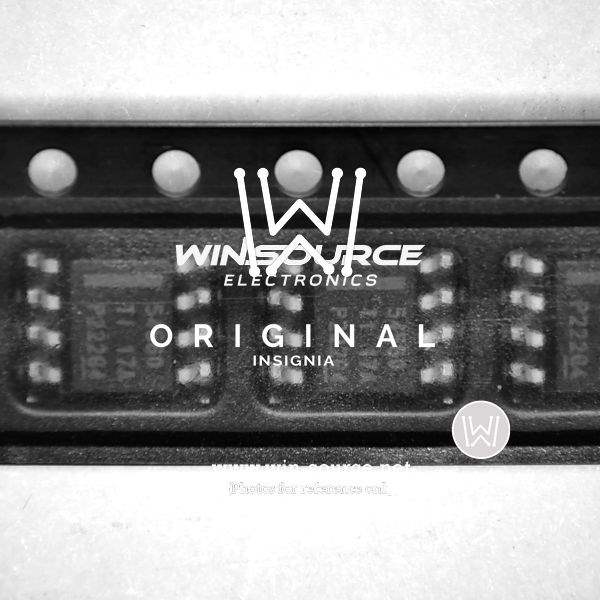

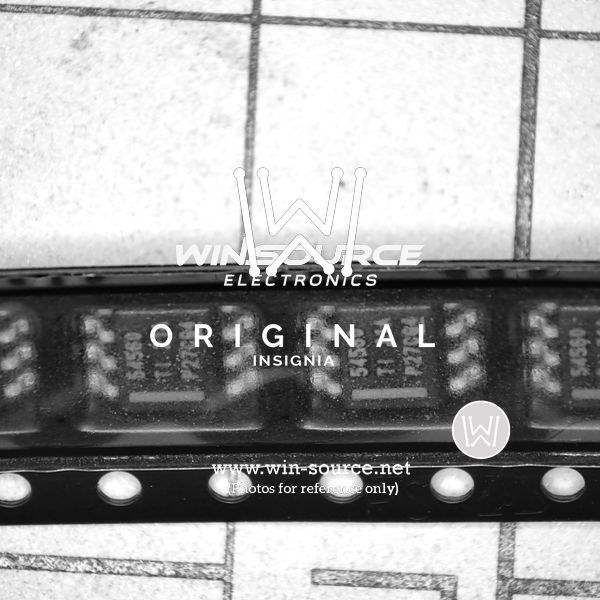

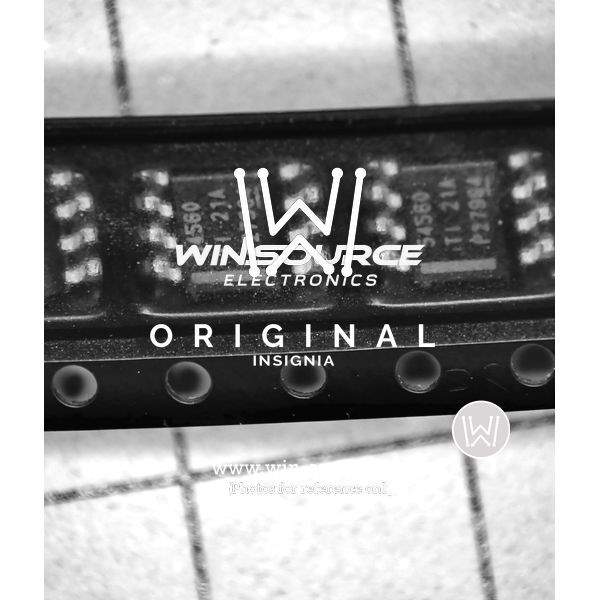

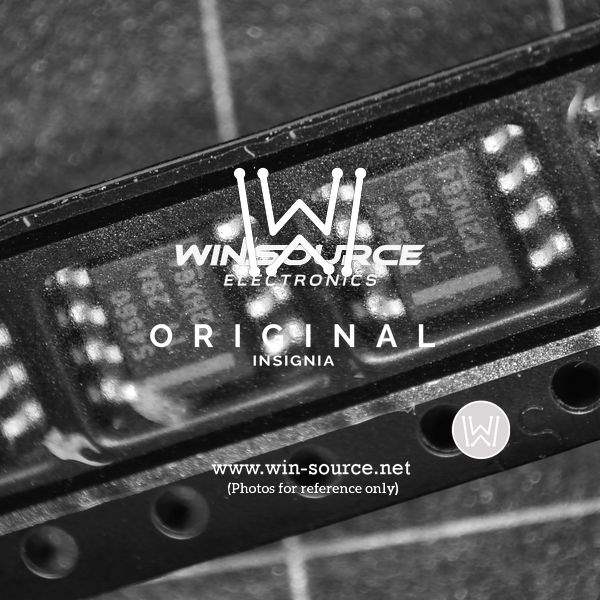

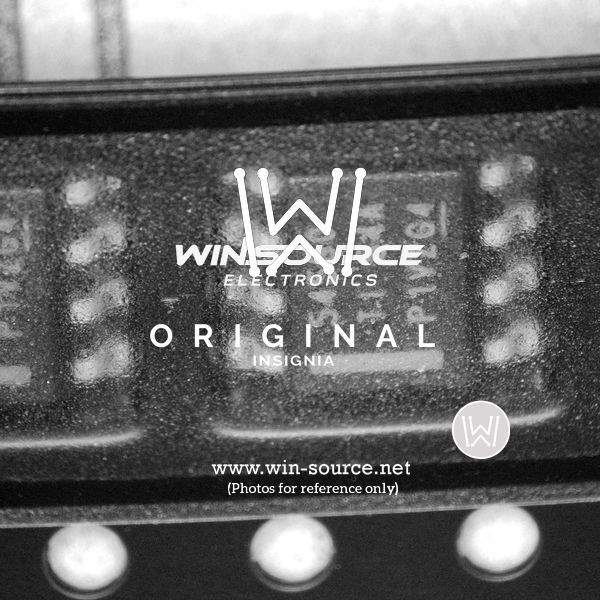

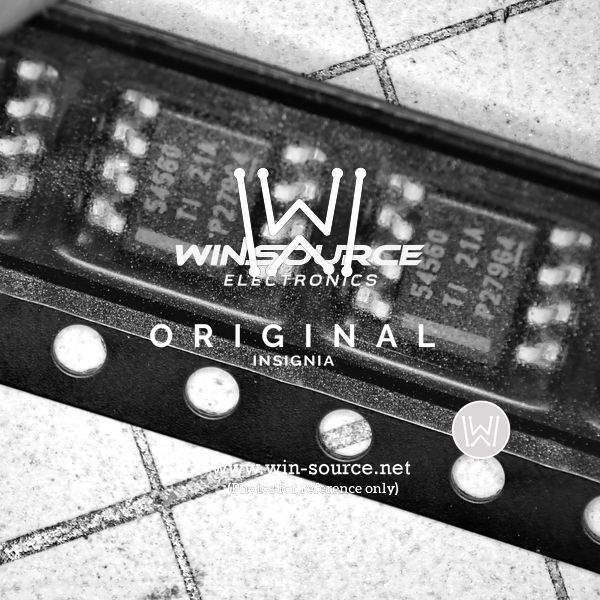

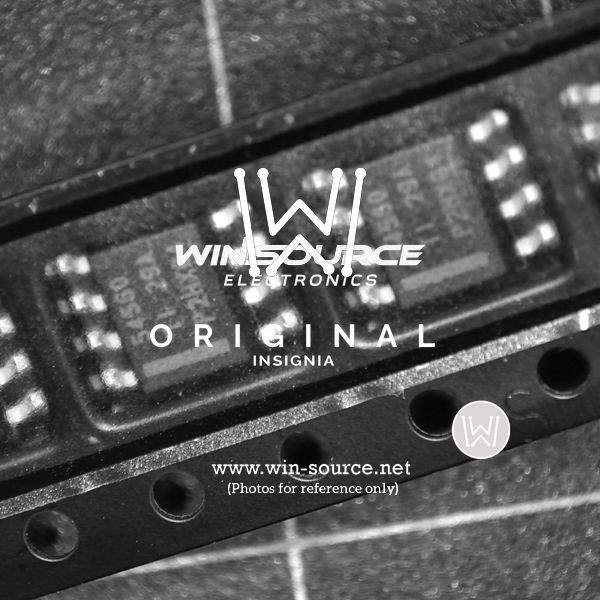

TPS54560DDA

Part No TPS54560DDA
Manufacturer Texas Instruments
Catalog PMIC - Voltage Regulators - DC DC Switching Regulators
Description IC REG BCK SPLIT RAIL ADJ 8SOPWR / Buck, Split Rail Switching Regulator IC Positive Adjustable 0.8V 1 Output 5A 8-PowerSOIC (0.154", 3.90mm Width)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs) - Power Management (PMIC) - Voltage Regulators - DC DC Switching Regulators
Mfr Texas Instruments
Series Eco-Mode™
Package Tube
Product Status Not For New Designs
Function Step-Down
Output Configuration Positive
Topology Buck, Split Rail
Output Type Adjustable
Number of Outputs 1
Voltage - Input (Min) 4.5V
Voltage - Input (Max) 60V
Voltage - Output (Min/Fixed) 0.8V
Voltage - Output (Max) 58.8V
Current - Output 5A
Frequency - Switching 100kHz ~ 2.5MHz
Synchronous Rectifier No
Temperature Range - Operating -40°C ~ 150°C (TJ)
Mounting Type Surface Mount
Package / Case 8-PowerSOIC (0.154", 3.90mm Width)
Supplier Device Package 8-SO PowerPad
Base Product Number TPS54560
Standard Package 75 pcs
MSL Level 2 (1 Year)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 843800-TPS54560DDA
Ultra Librarian 3D Model Ultra Librarian TPS54560DDA CAD Model

Description

Introducing the TPS54560DDA Buck Converter from Texas Instruments

The TPS54560DDA is a highly efficient, monolithic synchronous buck converter from Texas Instruments, designed to deliver exceptional performance for a wide range of applications. This power management integrated circuit (PMIC) is capable of providing a continuous 5A output current over a wide input voltage range of 3.4V to 60V. Its versatility and robust design make it an ideal choice for powering various electronic devices, including industrial, automotive, and communication equipment.

The TPS54560DDA features an innovative Eco-mode™ operation, which significantly enhances its efficiency at light loads by reducing the switching frequency, thereby minimizing the quiescent current draw. This makes the device particularly suitable for battery-powered and energy-sensitive applications where power conservation is critical.

Another hallmark of the TPS54560DDA is its thermal management capabilities. It is enclosed in a thermally enhanced 8-pin SO PowerPAD™ package, which ensures efficient heat dissipation and reliable operation even under high power conditions. Furthermore, the device is equipped with a range of protective features, such as overcurrent protection, overvoltage protection, and thermal shutdown, safeguarding your system from potential damage caused by abnormal operating conditions.

The converter supports an adjustable switching frequency from 100 kHz to 2.5 MHz, allowing designers the flexibility to optimize between efficiency and external component size. This can be particularly advantageous when designing compact or portable devices where space is at a premium. Additionally, the TPS54560DDA offers an adjustable slow start-up time, which can be programmed via an external capacitor, reducing inrush current during start-up and contributing to the stability of the power supply design.

For ease of implementation, the TPS54560DDA integrates high-side and low-side MOSFETs, which not only simplifies the circuit design but also reduces external component count. This integration, along with its advanced features and protections, positions the TPS54560DDA as a top-tier solution for designers looking to create efficient, reliable, and compact power supply systems.

Whether you're working on industrial automation, automotive electronics, or portable devices, the TPS54560DDA from Texas Instruments offers the performance, efficiency, and reliability you need to power your innovations.
