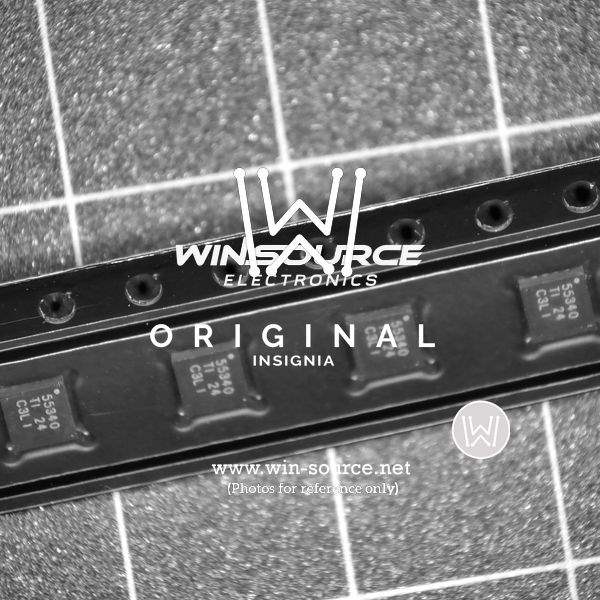

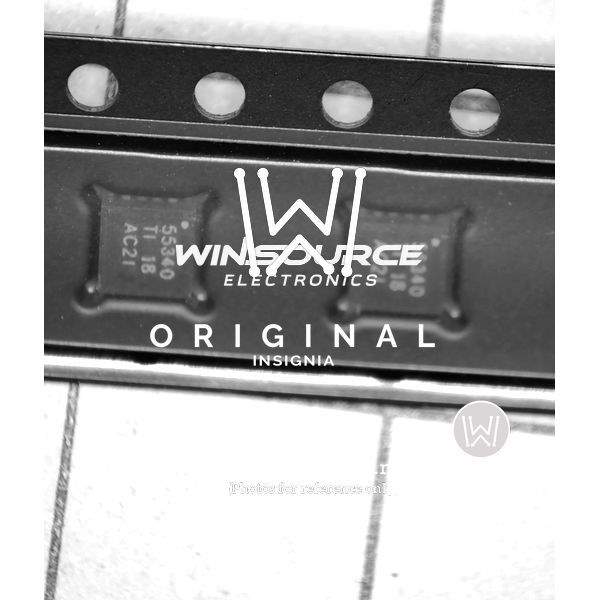

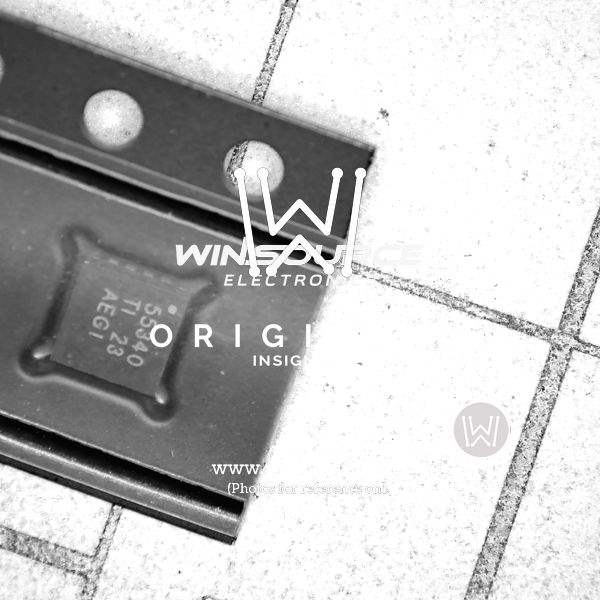

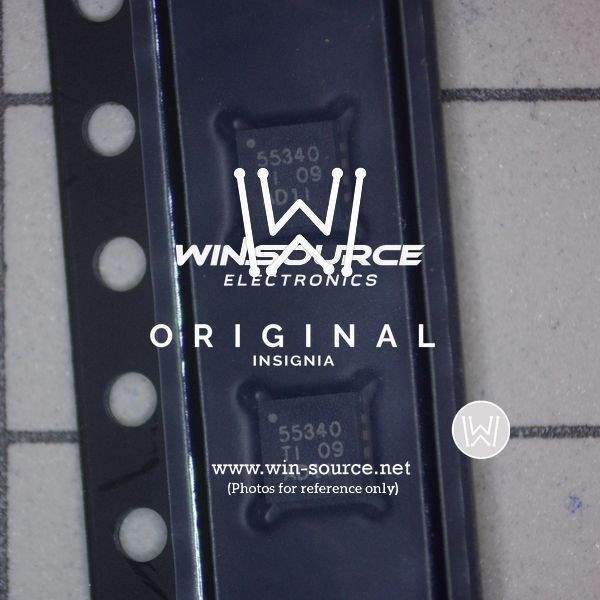

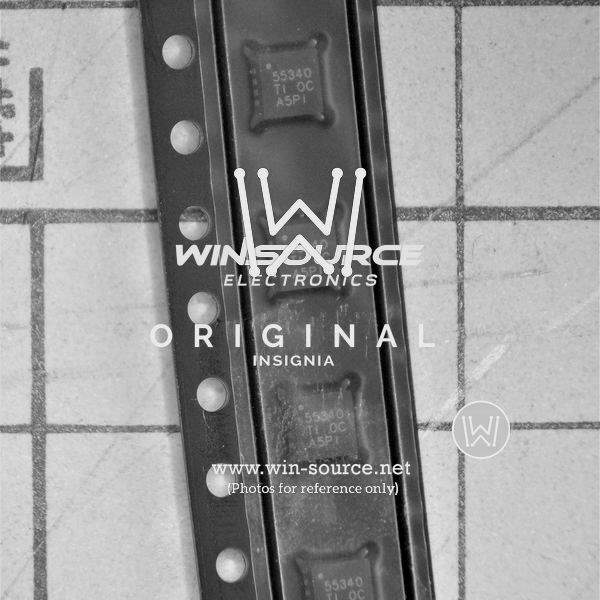

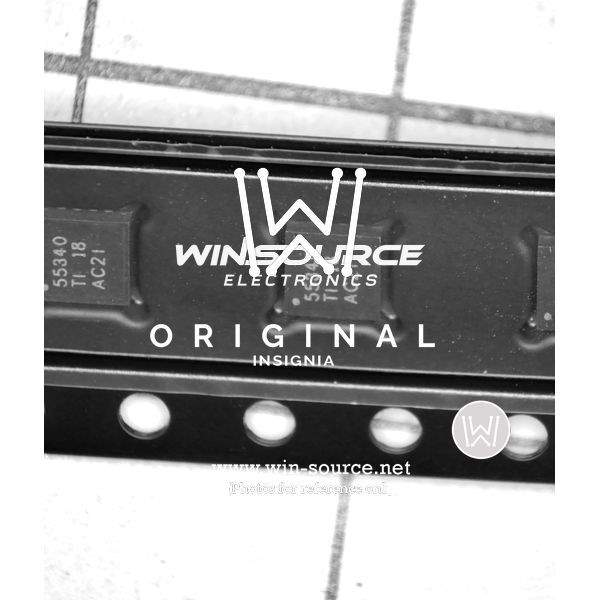

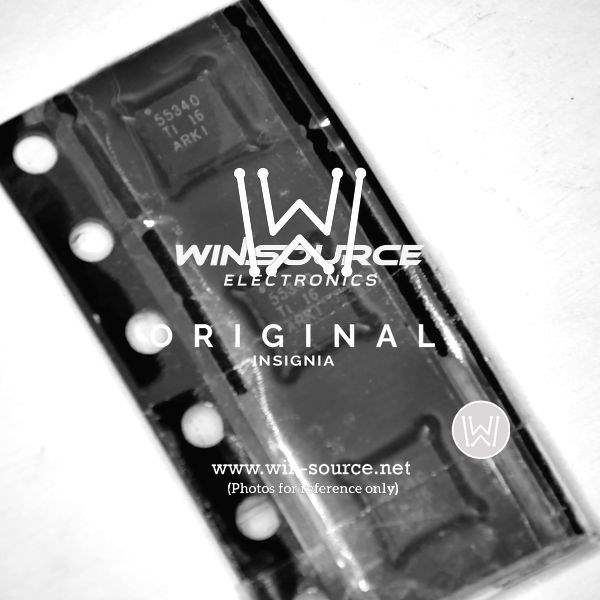

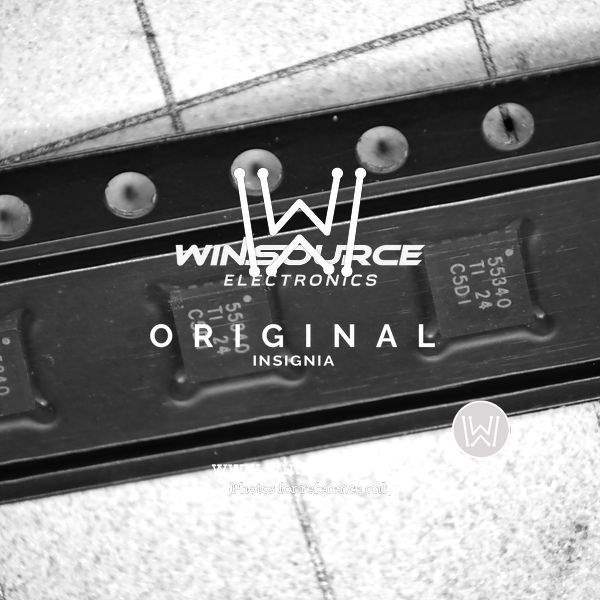

The TPS55340RTER is a high-performance, step-down switch mode converter from Texas Instruments, designed to meet the needs of a variety of applications that require efficient power management. With its wide input voltage range and integrated high-side MOSFET, this device is ideal for systems that operate on battery or are subject to wide variations in supply voltage.

Key Features and Benefits

• Wide Input Voltage Range: The TPS55340RTER operates with an input voltage range from 3.5V to 42V, making it versatile for use in both low and high-voltage systems.
• Integrated High-Side MOSFET: The device includes a 128mΩ high-side MOSFET, which allows for high-efficiency power conversion and reduces the need for external components.
• Adjustable Switching Frequency: Users can adjust the switching frequency from 100kHz to 2.5MHz, allowing for flexibility in balancing efficiency and component size.
• High Efficiency: With its advanced design, the TPS55340RTER can achieve up to 92% efficiency, which is beneficial for reducing heat and improving system reliability.
• Thermal Shutdown: The converter includes thermal shutdown protection, which prevents damage from overheating by automatically shutting down the device at high temperatures.
• Current Mode Control: This feature provides fast transient response and simplifies loop stabilization.
• Package: The device comes in a compact 16-pin QFN package, which is suitable for space-constrained applications.

Applications

The TPS55340RTER is well-suited for various applications, including:

• Industrial and Car Audio Power Supplies
• Pre-Regulator for Linear Regulators
• Consumer Electronics
• Point of Load Applications
• Aftermarket Automotive Solutions

With its robust feature set and flexible design, the TPS55340RTER from Texas Instruments is an excellent choice for designers looking to implement a reliable and efficient power management solution in their electronic products.
