Product Overview: TPS62135RGXR by Texas Instruments

The TPS62135RGXR is a cutting-edge, high-efficiency synchronous step-down converter designed and manufactured by Texas Instruments. It is part of their extensive line of power management integrated circuits, renowned for their reliability and performance in a variety of applications.

Key Features

• Wide Input Voltage Range: The device supports an input voltage range from 3 V to 17 V, making it versatile for various power supply configurations.
• Adjustable Output Voltage: The output voltage is adjustable from 0.9 V to 6 V, allowing for a broad range of uses in different circuit designs.
• High Efficiency: With an efficiency of up to 95%, the TPS62135RGXR ensures minimal power loss and heat generation, making it suitable for power-sensitive applications.
• Low Quiescent Current: Its low quiescent current is ideal for battery-powered devices, enhancing battery life and reducing power consumption when in standby mode.
• Advanced Power Management: The device features a 4 MHz fixed frequency operation which helps in minimizing the size of external components and maintaining a compact design footprint.
• Protection Features: It includes a range of protection features such as over-temperature, over-current, and under-voltage lockout, ensuring safe operation under abnormal conditions.

Applications

The TPS62135RGXR is suitable for a wide array of applications including but not limited to:

• Portable and battery-powered equipment
• Single Li-Ion battery-powered products
• WiFi and communications equipment
• Field Programmable Gate Arrays (FPGAs)
• Microprocessors and DSPs

Package and Quality

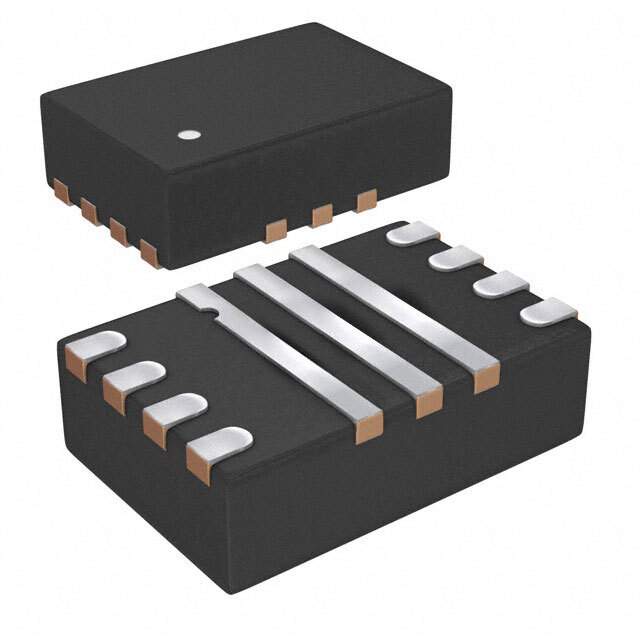

Encased in a highly compact QFN package, the TPS62135RGXR is designed to fit into space-constrained environments while maintaining high thermal performance. Texas Instruments' commitment to quality ensures that each device meets rigorous standards, providing reliable and consistent performance for the end-user.

Conclusion

In conclusion, the TPS62135RGXR from Texas Instruments is a highly versatile and efficient solution for modern electronic devices requiring a reliable power supply. Its advanced features and robust protection mechanisms make it an excellent choice for engineers and designers looking to enhance the performance and longevity of their products.
