The TPS62242DRVR from Texas Instruments is a highly-efficient, synchronous step-down DC/DC converter tailored for ultra-low power applications. This component is part of the TPS6224x family, which is known for its compact size and excellent power saving capabilities, making it an ideal choice for battery-powered and portable devices.

Key Features

• High Efficiency: The TPS62242DRVR boasts an impressive efficiency of up to 95%, which helps in prolonging battery life in portable applications.
• Adjustable Output Voltage: It offers an adjustable output voltage range from 1.2V to 6V, which provides design flexibility for various applications.
• Low Quiescent Current: With a quiescent current of just 17μA, this component ensures minimal power consumption during light-load conditions.
• Power Save Mode: It includes a Power Save Mode that automatically transitions between PWM (Pulse Width Modulation) and PFM (Pulse Frequency Modulation) modes to maintain high efficiency over the entire load current range.
• Fast Transient Response: The device’s fast transient response feature ensures stable performance during sudden changes in load, which is critical for maintaining the integrity of sensitive electronic circuits.

Applications

The TPS62242DRVR is suitable for a wide range of applications, including:

• Mobile Phones
• Personal Digital Assistants (PDAs)
• Digital Cameras
• Portable Media Players
• Wireless LAN Card and Bluetooth Applications

Package and Reliability

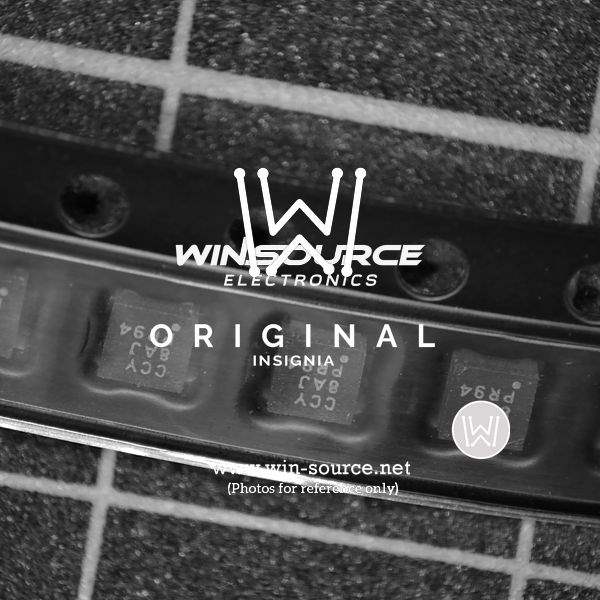

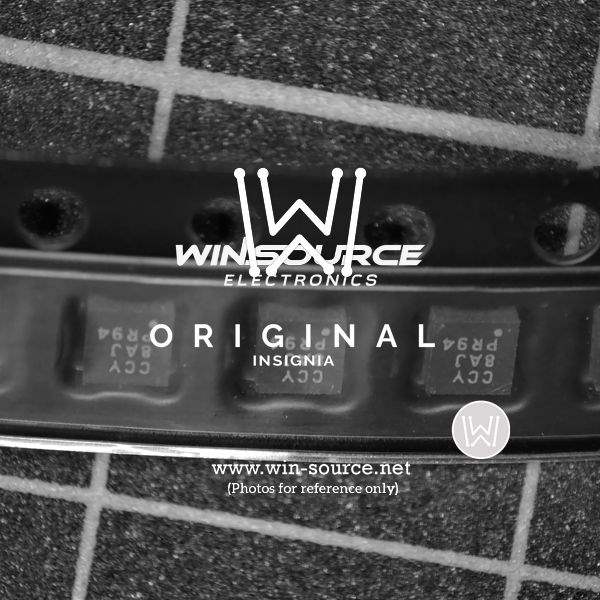

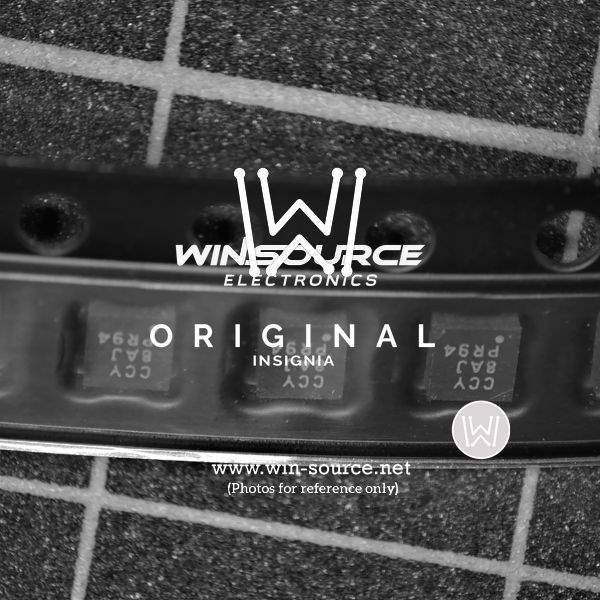

This device comes in a small 2x2mm 6-pin SON package, which is designed to occupy minimal space on a PCB. The TPS62242DRVR also features over-temperature and over-current protection, enhancing the reliability and safety of the system it is incorporated into.

Overall, the TPS62242DRVR is a versatile, high-performance solution for any designer looking to optimize their power management system in compact, power-sensitive applications.
