Introducing the TPS62822DLCT from Texas Instruments

The TPS62822DLCT is a state-of-the-art step-down converter designed by Texas Instruments, a leader in semiconductor solutions. This compact and efficient module is perfect for a wide range of applications, from portable electronics to industrial systems. It is particularly well-suited for battery-powered devices due to its low quiescent current and high efficiency across light and heavy loads.

Key Features

• High Efficiency: With its advanced design, the TPS62822DLCT provides excellent power conversion efficiency, which is critical for extending battery life in portable devices.
• Wide Input Voltage Range: The device operates over a wide input voltage range from 2.4V to 5.5V, making it versatile for various power supply configurations.
• Adjustable Output Voltage: The output voltage is adjustable and can be set from 0.6V to VIN, enabling precise voltage regulation for different circuit requirements.
• Low Quiescent Current: It features an ultra-low quiescent current, which minimizes power consumption when the device is in standby mode, thereby preserving battery life.

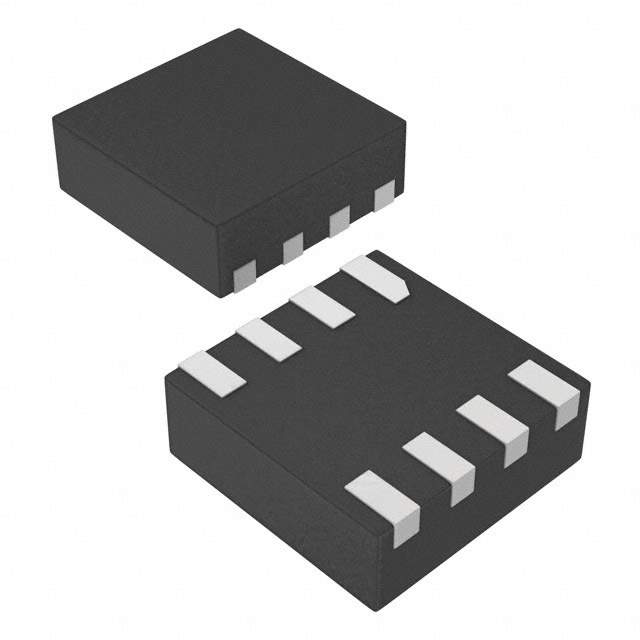

• Small Package Size: The TPS62822DLCT comes in a tiny 2x2mm QFN package, which is ideal for space-constrained applications.

Applications

The versatility of the TPS62822DLCT lends itself to a multitude of applications, including:

• Smartphones and Tablets
• Wearable Technology
• Wireless Power Supplies
• Portable Medical Devices
• IoT Devices
• Energy Harvesting Systems

Technical Specifications

The TPS62822DLCT boasts impressive technical specifications that ensure reliable and efficient performance:

• Output Current: Capable of delivering up to 2A of continuous output current.
• Switching Frequency: The device features a 2.2MHz fixed switching frequency, which allows for the use of small external components.
• Thermal Performance: Enhanced thermal performance ensures the device operates within its temperature range even under full-load conditions.

With its combination of high efficiency, low power consumption, and compact size, the TPS62822DLCT from Texas Instruments is an excellent choice for designers looking to optimize power management in their next-generation electronic products.
