Overview of Texas Instruments TPS62A02DRLR

The Texas Instruments TPS62A02DRLR is a high-performance, adjustable, low-dropout linear regulator (LDO) designed to provide stable and reliable power supply in a wide range of applications. With its advanced features and compact form factor, the TPS62A02DRLR is an excellent choice for powering sensitive electronic circuits that require a precise and low-noise power source.

Key Features

• Adjustable Output Voltage: The device offers an adjustable output voltage range, allowing designers to tailor the voltage to the specific needs of their application.
• Low Dropout: The low dropout feature enables the LDO to maintain a stable output voltage even when the input-to-output voltage differential is minimal, ensuring efficient operation under various conditions.
• High Accuracy: The TPS62A02DRLR provides excellent load and line regulation, maintaining a high level of accuracy in the output voltage, critical for sensitive electronic components.
• Thermal Protection: Built-in thermal shutdown protection safeguards the device from damage due to overheating, enhancing the reliability and longevity of both the regulator and the overall system.
• Power Supply Rejection Ratio (PSRR): High PSRR minimizes the impact of fluctuations in the input voltage on the output, delivering a cleaner power supply.

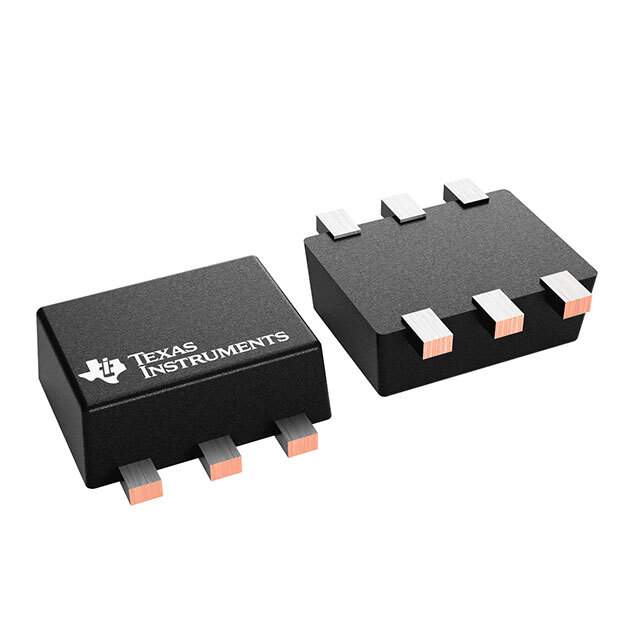

• Package: The device comes in a small, leadless DRL package that is suitable for space-constrained applications.

Applications

The TPS62A02DRLR is versatile and can be used in a variety of applications, including:

• Portable and battery-powered devices
• Wireless communication systems
• Power supplies for sensors and analog circuits
• Medical equipment
• Automotive electronics

Conclusion

With its adjustable output, low dropout, and high accuracy, the Texas Instruments TPS62A02DRLR is a robust solution for applications requiring a precise and efficient power supply. Its thermal protection and high PSRR ensure stable performance across different operating conditions, making it a reliable choice for designers looking to optimize their power management systems.
