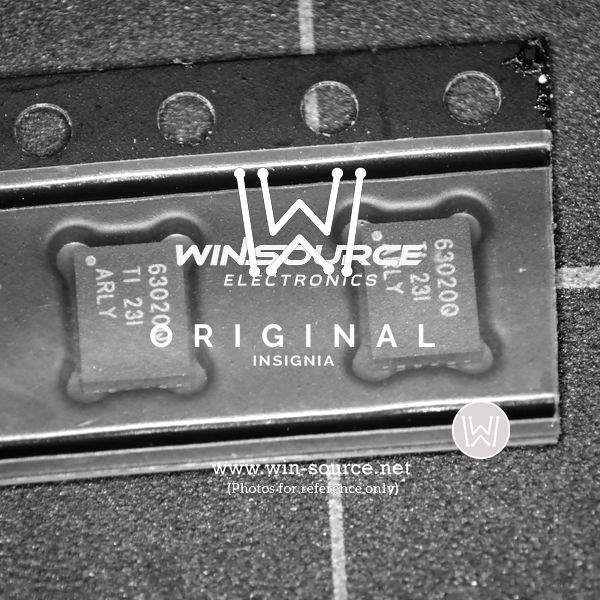

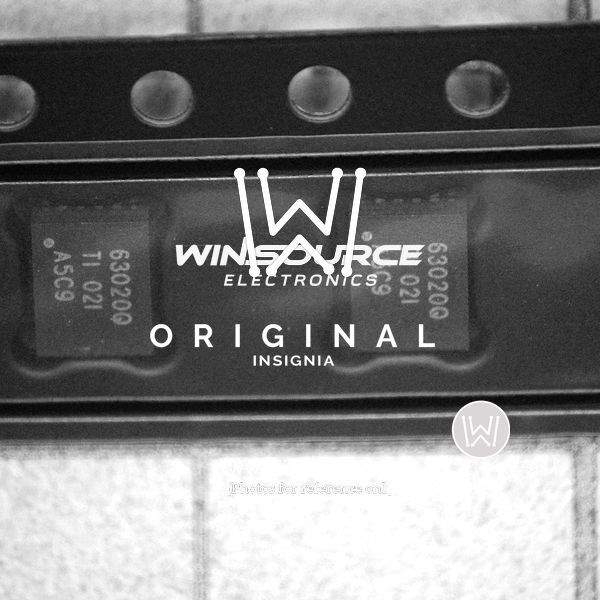

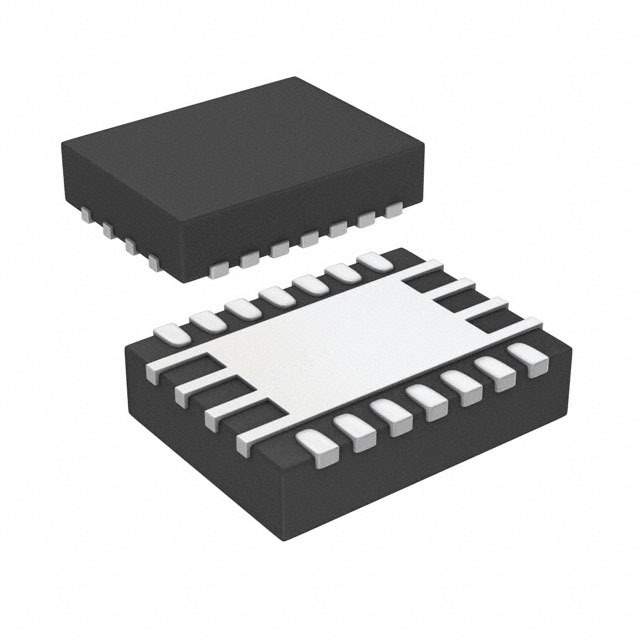

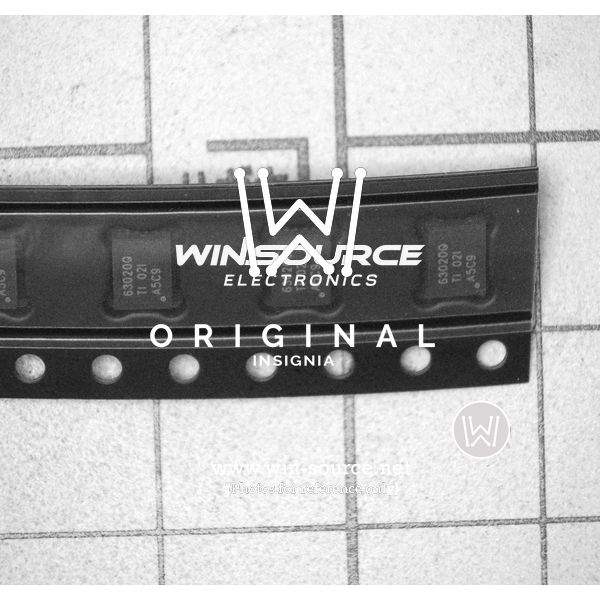

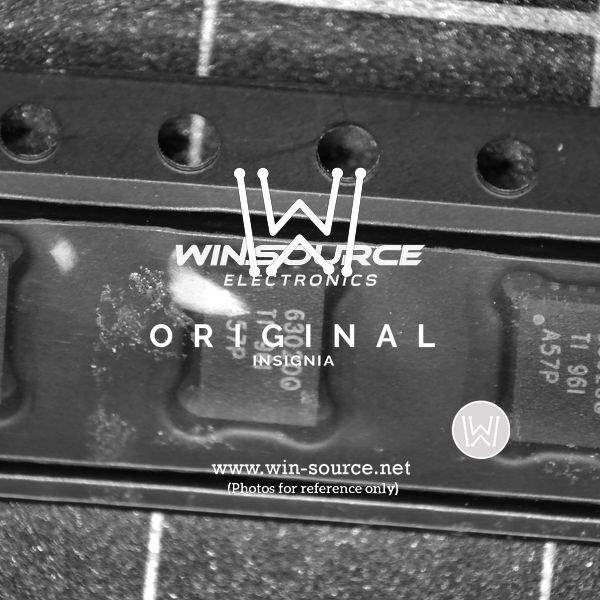

Product Overview: TPS63020QDSJRQ1 from Texas Instruments

The TPS63020QDSJRQ1 is a high-efficiency, low quiescent current buck-boost converter from Texas Instruments, suitable for applications where the input voltage can be either above or below the output voltage. Specifically designed for automotive and industrial applications, this versatile power management integrated circuit (PMIC) is ideal for systems that require a stable and efficient power supply across a wide input voltage range.

Key Features

• Wide Input Voltage Range: The TPS63020QDSJRQ1 operates with an input voltage range from 1.8V to 5.5V, accommodating various battery technologies and configurations.
• Adjustable Output Voltage: The output voltage can be adjusted from 1.2V to 5.5V, allowing for a high degree of flexibility in powering different components within a system.
• High Efficiency: With up to 95% efficiency, this converter ensures minimal power loss during voltage conversion, making it suitable for energy-sensitive applications.
• Low Quiescent Current: It features a low quiescent current of typically 50µA, which is critical for battery-powered applications where extending battery life is essential.
• Power Save Mode: The device includes a power save mode that reduces the switching frequency under light load conditions, further improving efficiency.
• Thermal Shutdown and Over-Current Protection: Built-in safety features protect the device and the system from damage due to overheating and over-current conditions.

Applications

The TPS63020QDSJRQ1 is designed to meet the rigorous demands of automotive and industrial environments. It is commonly used in:

• Automotive infotainment and navigation systems
• Automotive camera modules
• Portable and battery-powered equipment
• Power banks and USB-powered devices
• Energy harvesting and solar-powered applications

Quality and Reliability

As with all Texas Instruments products, the TPS63020QDSJRQ1 is manufactured to high standards of quality and reliability. It is AEC-Q100 qualified, ensuring that it meets the stringent requirements of automotive applications. Additionally, the device is supported by Texas Instruments' comprehensive technical documentation, design tools, and customer support, making it a reliable choice for designers and engineers.
