Product Overview: TPS630250RNCR by Texas Instruments

The TPS630250RNCR is a high-efficiency, low quiescent current buck-boost converter from the reputable Texas Instruments (TI). This advanced power solution is designed to manage power in a wide range of devices, making it a versatile component for designers and engineers. Its ability to automatically transition between step-down and step-up modes allows for consistent power supply, even when the input voltage varies above or below the output voltage.

Key Features:

• Wide Input Voltage Range: The TPS630250RNCR operates with an input voltage range from 2.5V to 12V, accommodating a variety of power sources, including single-cell Li-Ion batteries and other standard power supplies.
• Efficient Power Conversion: This buck-boost converter boasts high efficiency across a wide load range, thanks to its 1.5A switch current limit and automatic transition between step-down and step-up modes, ensuring optimal battery life and energy usage.
• Low Quiescent Current: With a typical quiescent current of only 50µA, the TPS630250RNCR minimizes power drain when in standby, making it ideal for battery-powered applications where power conservation is crucial.
• Adjustable Output Voltage: Designers can set the output voltage from 2.5V to 5V using external resistors, providing flexibility to match the voltage requirements of various loads.
• Protection Features: The device includes over-temperature and over-current protection, enhancing the safety and reliability of the power supply system.

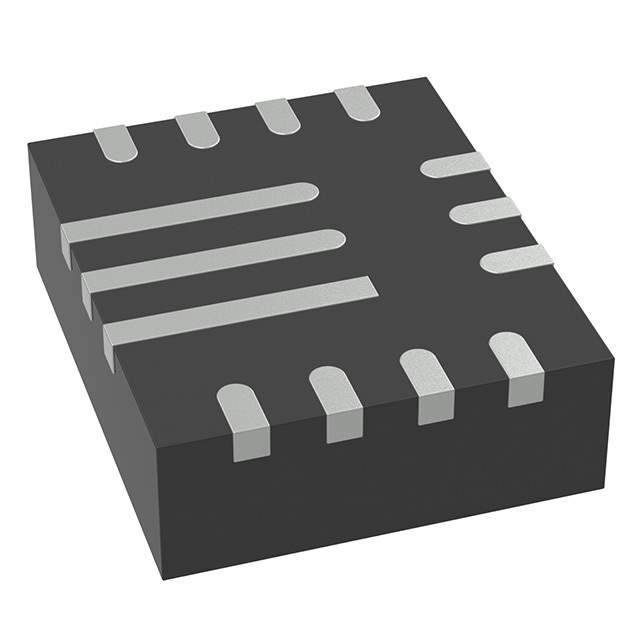

• Compact Package: Housed in a 3.50 mm x 3.50 mm VQFN package, the TPS630250RNCR saves valuable board space and is suitable for space-constrained applications.

Applications:

The TPS630250RNCR is well-suited for a diverse range of applications, including but not limited to:

• Portable and battery-powered devices
• Tablets and smartphones
• Power banks
• Wireless speakers and headphones
• Handheld medical equipment

In conclusion, the TPS630250RNCR from Texas Instruments is a reliable and efficient power management solution that offers the flexibility and performance required for today's portable and varied electronic devices. Its ability to provide a stable output voltage in the face of fluctuating input voltages makes it an essential component for any design requiring a resilient power supply.
