Product Overview: TPS63050YFFR by Texas Instruments

The TPS63050YFFR is a highly efficient, small size, single inductor buck-boost converter designed by Texas Instruments (TI) for applications where the input voltage can be either above or below the output voltage. It is particularly suited for systems that run on battery power, where maintaining a consistent output voltage is crucial despite the varying input voltage levels as the battery discharges.

Key Features

• Wide Input Voltage Range: The device supports an input voltage range from 1.8 V to 5.5 V, making it versatile for use with various battery technologies and configurations.
• Adjustable Output Voltage: The TPS63050YFFR offers an adjustable output voltage range from 1.2 V to 5.5 V, which can be set with external resistors, allowing for flexibility across different applications.
• High Efficiency: With a 1.5 A switch current limit, the converter provides high efficiency across a wide load range. This is essential for maximizing battery life and reducing heat generation in portable devices.
• Power Save Mode: The device includes a power save mode that reduces quiescent current and maintains high efficiency at light loads, thus extending battery life even further.

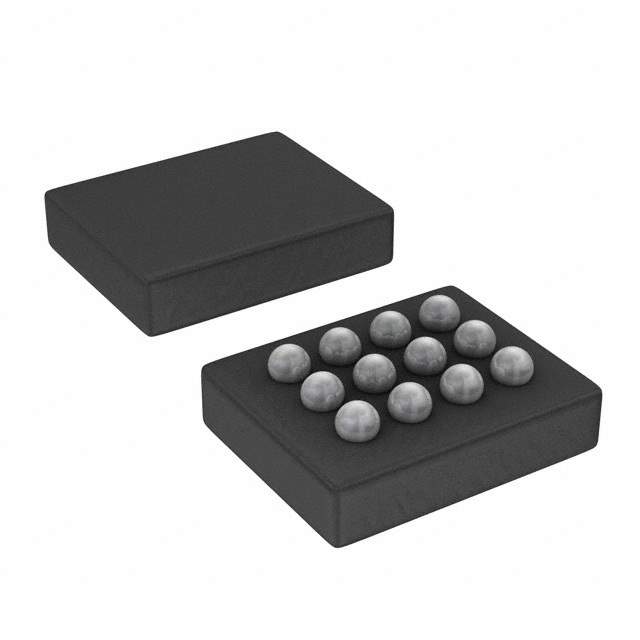

• Small Package: The TPS63050YFFR comes in a compact 12-bump 2.00 mm x 2.00 mm x 0.75 mm WCSP (Wafer Chip-Scale Package), which is ideal for space-constrained applications.

Applications

The versatility of the TPS63050YFFR makes it suitable for a wide range of applications, including but not limited to:

• Portable and battery-powered equipment
• Smartphones, tablets, and wearable technology
• Power banks and USB-powered devices
• Energy harvesting and solar-powered systems

Quality and Reliability

Texas Instruments is known for its commitment to quality and reliability, and the TPS63050YFFR is no exception. It is designed to meet the rigorous demands of modern electronic devices, ensuring stable performance and a long operational lifespan.

Conclusion

The TPS63050YFFR buck-boost converter is an excellent choice for designers looking for a power management solution that offers flexibility, efficiency, and space savings. Its advanced features and reliable performance make it a go-to component for a wide range of portable and battery-operated devices.
