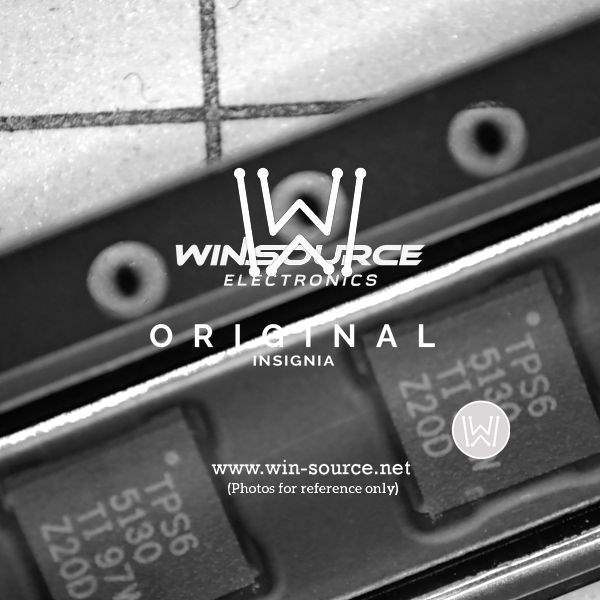

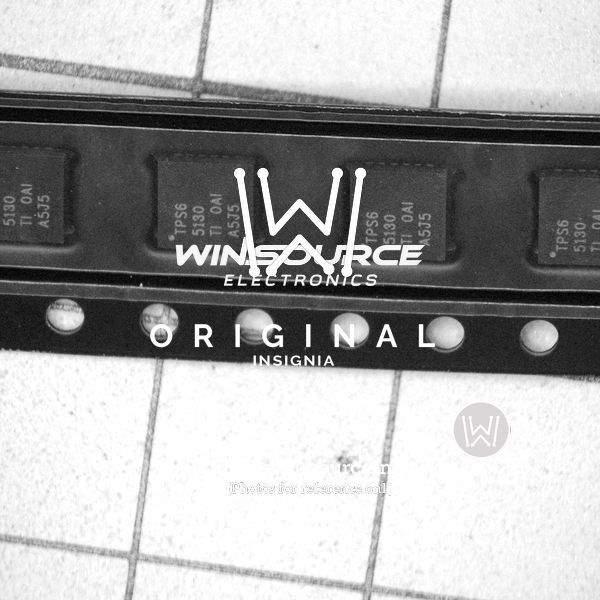

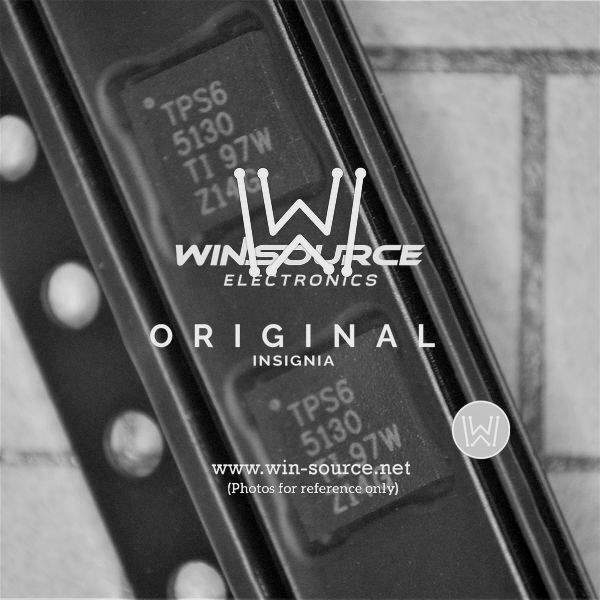

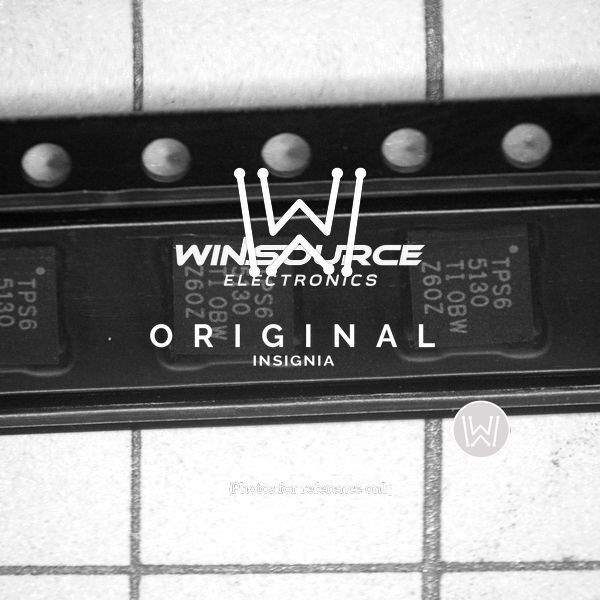

Overview of Texas Instruments TPS65130RGER

The TPS65130RGER by Texas Instruments is a versatile, dual-output DC-DC converter designed to cater to a wide range of applications, particularly those that require both positive and negative supply voltages. This high-performance integrated circuit (IC) is particularly well-suited for powering OLED displays, CCD sensors, and other devices that necessitate dual supplies in a compact, efficient package.

Key Features

• Dual Adjustable Outputs: The TPS65130RGER offers two independently adjustable output voltages, which can be set from +1.5V to +15V for the positive output and -1.5V to -15V for the negative output, making it highly adaptable for various design requirements.
• Integrated Switches: With built-in power MOSFET switches, the device minimizes external component count, thus saving board space and reducing system complexity.
• High Efficiency: The device is designed for high efficiency, which helps in reducing power consumption and heat generation within the system.
• Power Sequencing: The TPS65130RGER comes with an adjustable power sequencing function, allowing designers to control the start-up sequence of the positive and negative outputs, which is critical for sensitive applications.
• Thermal Shutdown Protection: The IC includes thermal shutdown protection, ensuring that the device operates within safe temperature limits.
• Small Package Size: Housed in a compact QFN-24 package, the TPS65130RGER is designed for space-constrained applications.

Applications

Due to its dual-output configuration and flexibility, the TPS65130RGER is ideal for a range of applications, including:

• Portable and battery-powered equipment
• OLED displays and organic light-emitting diodes
• CCD sensors and CMOS sensors
• Audio and industrial applications
• Medical instrumentation

The TPS65130RGER provides a reliable and efficient solution for designers looking to implement a dual-supply voltage in their systems. Its combination of integration, efficiency, and flexibility makes it a go-to choice for a multitude of electronic applications.
