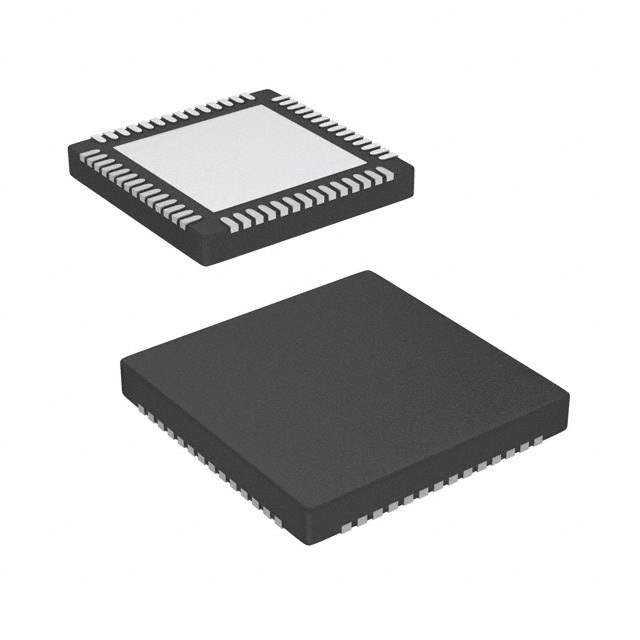

Product Overview: TPS65820RSHTG4

The TPS65820RSHTG4 is a highly integrated power management IC designed by Texas Instruments, tailored to meet the demanding requirements of portable and handheld devices. This versatile chip offers a comprehensive solution that integrates multiple power management functions into a single package, thereby reducing system complexity and saving on board space.

Key Features:

• Multiple Voltage Rails: The device provides several programmable voltage rails to power various system components, including a step-down converter for the processor core, memory, and I/O.
• High-Efficiency: With its high-efficiency power conversion capabilities, the TPS65820RSHTG4 ensures prolonged battery life, which is crucial for mobile devices.
• Integrated Charger: It includes an integrated Li-Ion and Li-Pol battery charger with charge termination and pre-charge features, supporting the fast and safe charging of batteries.
• Flexible Power Sequencing: The device offers programmable power sequencing options to ensure the correct power-up and power-down sequences for sensitive electronic components.
• SmartReflex™ Technology: Incorporating Texas Instruments' SmartReflex technology, the TPS65820RSHTG4 adapts to silicon process variations and temperature changes to optimize power consumption dynamically.
• I2C Compatible Interface: The inclusion of an I2C compatible interface allows for easy programming and control of the device, providing a flexible and user-friendly experience.

Applications:

The TPS65820RSHTG4 is ideal for a wide range of applications, particularly in the mobile market. These include:

• Smartphones
• Tablets
• Portable Media Players
• Handheld Gaming Devices
• Other battery-powered handheld devices

Overall, the TPS65820RSHTG4 from Texas Instruments stands out as a robust and efficient solution for power management in portable devices. Its compact size, combined with its rich feature set, makes it an excellent choice for designers looking to optimize their power architecture while conserving space and extending battery life.
