Product Overview: TPS7301QDRG4 by Texas Instruments

The TPS7301QDRG4 is a high-performance, low-dropout (LDO) voltage regulator designed by Texas Instruments, tailored for applications requiring a low noise, high-accuracy power source. This device offers a significant advantage in systems where power efficiency and reliability are crucial. With its wide input voltage range and low quiescent current, the TPS7301QDRG4 is an excellent choice for portable and battery-powered equipment.

Key Features

• Output Voltage: The TPS7301QDRG4 provides a fixed output voltage of 5V, which is suitable for powering a variety of analog and digital circuits.
• High Accuracy: The output voltage is maintained with high accuracy, ensuring stable operation for sensitive components.
• Low Dropout Voltage: It features a low dropout voltage, allowing for efficient operation even when the input voltage is close to the output voltage.
• Low Noise: This LDO regulator is designed to minimize noise, making it ideal for noise-sensitive applications such as audio or RF circuits.
• Stable with Low ESR Capacitors: The TPS7301QDRG4 remains stable with ceramic capacitors, which have lower equivalent series resistance (ESR) than tantalum or aluminum electrolytic capacitors, improving performance and reliability.
• Overcurrent and Overtemperature Protection: The device includes built-in protection features to safeguard against conditions that could potentially damage the regulator or the powered device.

Applications

The versatile nature of the TPS7301QDRG4 makes it suitable for a broad range of applications, including:

• Portable and battery-powered devices
• Microcontroller power supplies
• Reference voltage sources
• Post-regulation for switching supplies
• Audio and RF applications

Package and Quality

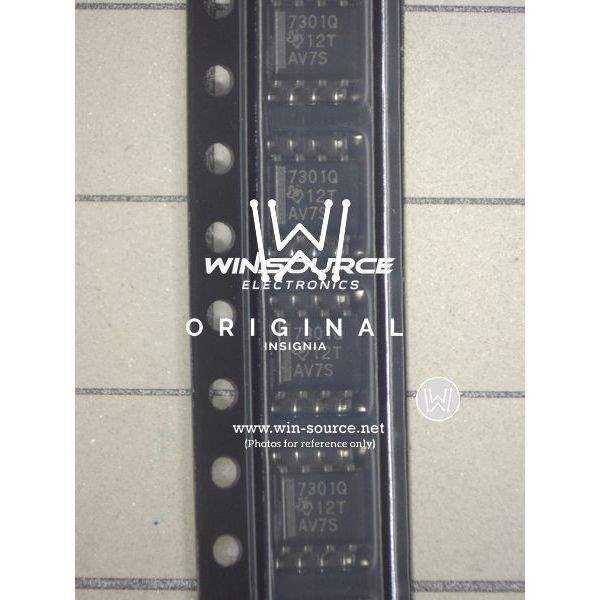

The TPS7301QDRG4 comes in a compact SOP-8 (Small Outline Package) which is ideal for space-constrained applications. Texas Instruments is known for its commitment to quality, and this product is no exception. It is manufactured to high standards, ensuring reliability and performance consistency for the end-user.

For engineers and designers looking for a dependable power management solution, the TPS7301QDRG4 from Texas Instruments stands out with its combination of performance, efficiency, and protective features.
