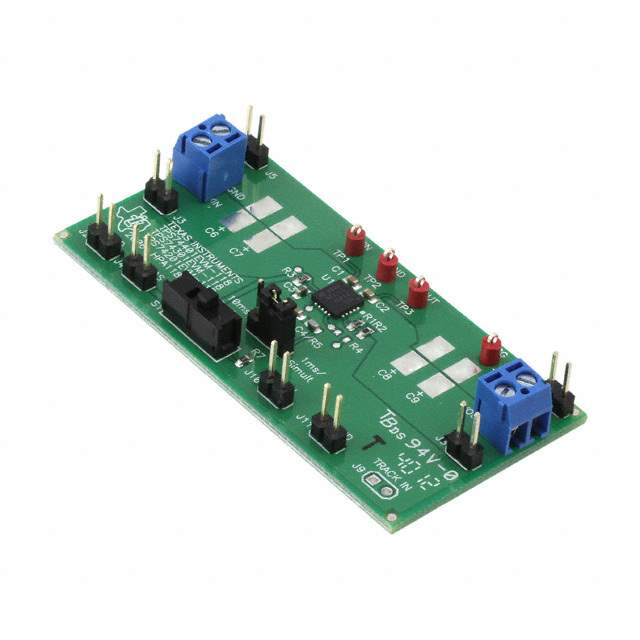

TPS74401EVM-118 Evaluation Module by Texas Instruments

The TPS74401EVM-118 from Texas Instruments is a comprehensive evaluation module (EVM) designed to help both novice and experienced engineers explore the capabilities and performance of the TPS74401 low-dropout (LDO) linear regulator. This product offers a practical and efficient solution for testing the features and fine-tuning the settings of the TPS74401 regulator in various applications.

The TPS74401 is a single-output, low-dropout regulator with an adjustable output voltage range from 0.8V to 3.3V and a maximum output current of 3A. It is optimized for high performance, providing excellent load and line transient responses. The device features programmable soft-start, voltage tracking, and is stable with ceramic output capacitors, making it a versatile choice for a wide array of power supply designs.

The EVM comes equipped with a range of test points and jumpers that allow for easy evaluation of the TPS74401's performance characteristics. Users can adjust the output voltage, enable or disable the device, and configure the soft-start delay time with simple jumper settings. Additionally, the EVM provides convenient access to the TPS74401's Power Good output signal, enabling system monitoring and sequencing functions.

The TPS74401EVM-118 includes thermal protection features, ensuring reliable operation under various conditions. Its low dropout voltage and fast transient response make it particularly suitable for powering microprocessors, FPGAs, and other digital ICs that require stable and precise voltages.

The evaluation module is supported by comprehensive documentation, including a user guide that details the EVM setup and operation. This ensures that users can quickly begin testing and integrating the TPS74401 regulator into their designs with minimal setup time.

Overall, the TPS74401EVM-118 is an invaluable tool for engineers who need to assess the performance of the TPS74401 LDO regulator in a controlled and efficient manner. With its user-friendly design and robust feature set, this EVM is an essential addition to any power management development kit.
