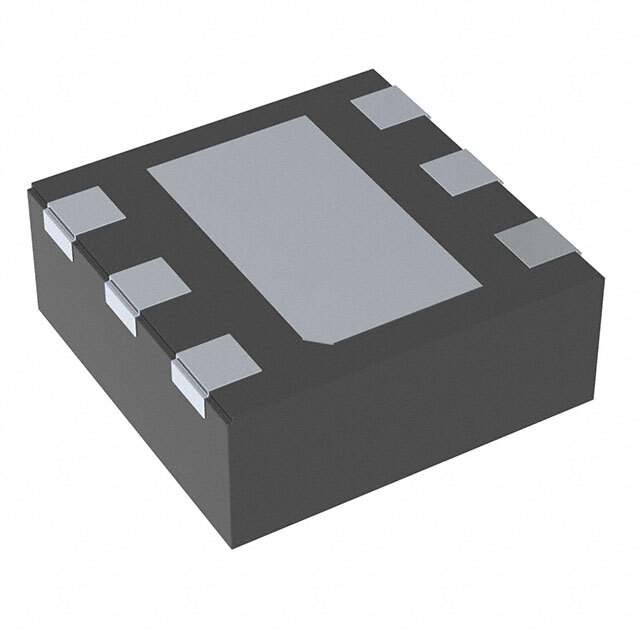

TPS74601PQWDRVRQ1 - Low-Dropout Regulator from Texas Instruments

The TPS74601PQWDRVRQ1 is a highly efficient, low-dropout (LDO) linear voltage regulator designed by Texas Instruments to meet the rigorous demands of automotive and industrial applications. This robust component offers a stable and reliable power supply, making it an ideal choice for sensitive electronics that require a consistent voltage level.

Key Features:

• Adjustable Output Voltage: The device provides an adjustable output voltage range from 0.8V to 3.95V, allowing for versatile use in various circuits and applications.
• High Accuracy: With an output voltage accuracy of 1%, the TPS74601PQWDRVRQ1 ensures precise voltage regulation for critical components.
• Low Dropout: The LDO's low dropout voltage minimizes power loss and improves efficiency, which is critical for battery-powered devices.
• Stable with Low-ESR Capacitors: The regulator is designed to be stable with ceramic output capacitors, which have lower equivalent series resistance (ESR) than other capacitor types, thus enhancing the overall stability of the system.
• Power Good (PG) Output: This feature provides a status signal to indicate when the output voltage is within its nominal range, which is essential for power sequencing and monitoring.
• Thermal Shutdown and Overcurrent Protection: The built-in thermal shutdown and overcurrent protection features safeguard the device and the application from damage due to excessive heat or current.

Applications:

The TPS74601PQWDRVRQ1 is designed to serve a wide range of applications, particularly those within the automotive sector, including infotainment systems, advanced driver-assistance systems (ADAS), and other electronic control units (ECUs). It is also suitable for industrial applications that require stable and reliable power supplies.

Quality and Reliability:

As with all Texas Instruments products, the TPS74601PQWDRVRQ1 is built to the highest standards of quality and reliability. It is qualified for automotive applications, complying with the AEC-Q100 standard, which ensures the device's performance under extreme conditions typically found in automotive environments.

For detailed technical specifications, application notes, and support tools, visit the Texas Instruments website or contact their support team.
