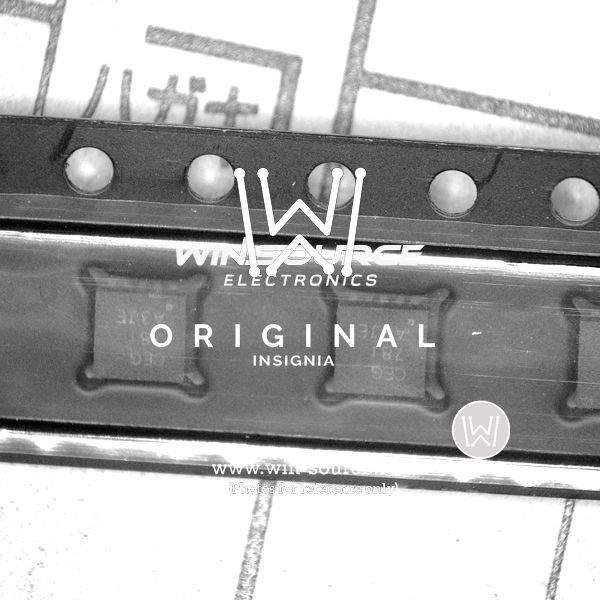

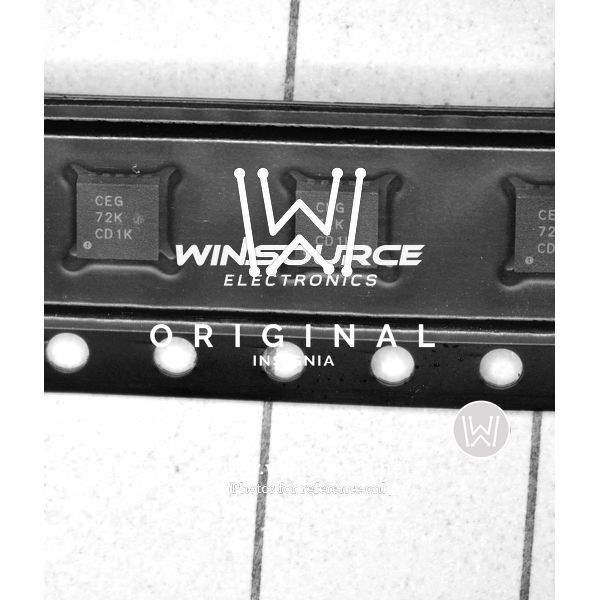

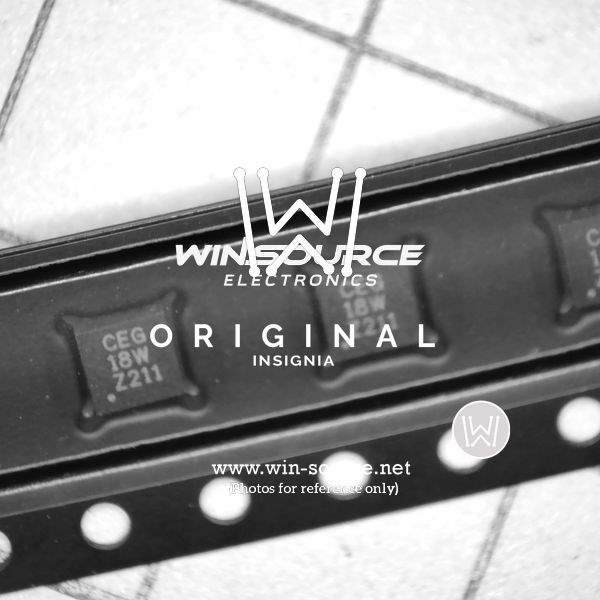

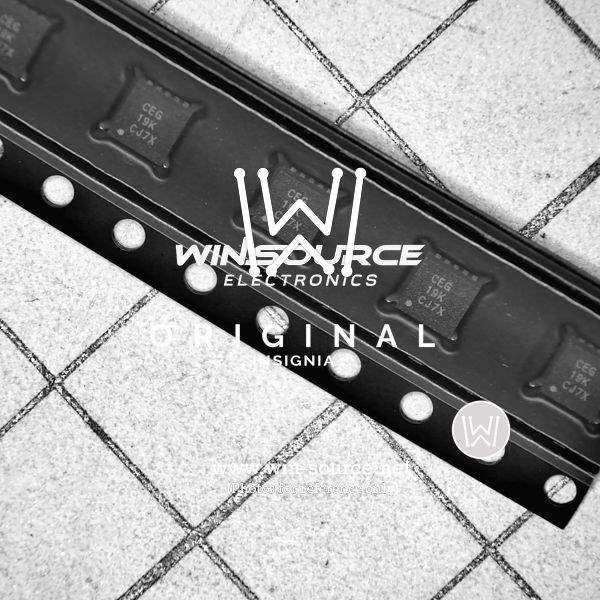

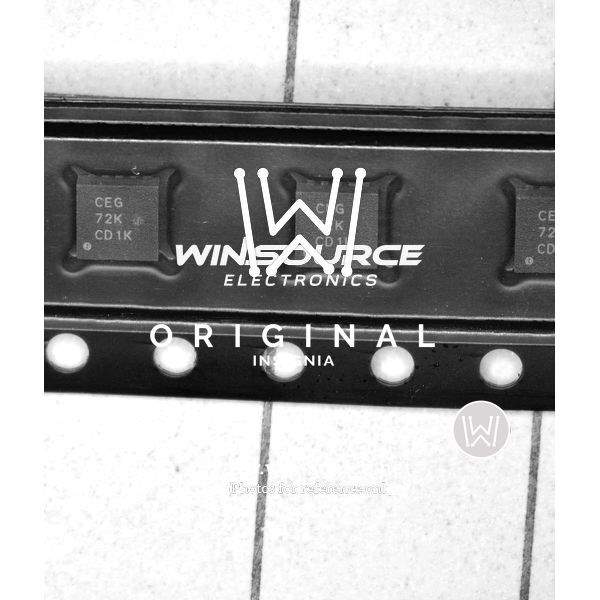

The TPS74701DRCR is a high-performance, adjustable, low-dropout voltage regulator (LDO) from Texas Instruments (TI), designed to meet the stringent power requirements of modern microprocessors, FPGA, DSP, and other sensitive electronic circuits. This regulator is capable of delivering up to 1.5A of continuous output current with a dropout voltage as low as 230mV at full load, making it an excellent choice for systems with tight voltage regulation specifications.

Key Features

• Adjustable Output Voltage: The TPS74701DRCR offers an adjustable output voltage range from 0.8V to 3.6V, allowing designers to tailor the voltage supply to the specific needs of their application.
• High Accuracy: With an accuracy of 1% over line, load, and temperature variations, this LDO ensures reliable performance under a wide range of operating conditions.
• Low Dropout: Its low dropout voltage ensures efficient operation even when the input-to-output voltage differential is minimal, which is critical for battery-powered devices.
• Fast Transient Response: The device's excellent transient response characteristics help to maintain a stable output voltage despite rapid changes in load, which is essential for powering digital circuits that switch between low-power and high-power states frequently.
• Stable with Low-ESR Capacitors: The TPS74701DRCR is stable with ceramic capacitors, which have lower equivalent series resistance (ESR) than other capacitor types, reducing the overall solution size and improving reliability.
• Thermal Shutdown and Overcurrent Protection: Built-in thermal shutdown and overcurrent protection features safeguard the device and the downstream circuitry from damage due to excessive heat and current conditions.

Applications

The versatile TPS74701DRCR is suitable for a wide range of applications, including:

• Networking equipment
• Telecommunications infrastructure
• Enterprise servers and storage systems
• Portable and battery-powered devices
• Industrial applications

With its comprehensive set of features and robust protection mechanisms, the TPS74701DRCR from Texas Instruments is an ideal voltage regulation solution for designers looking to optimize power efficiency and performance in their next-generation electronic systems.
