The TPS74801DRCR is a versatile and efficient low-dropout (LDO) voltage regulator designed by Texas Instruments, a leader in semiconductor solutions. This regulator is an excellent choice for a wide range of applications, including sensitive RF and analog circuits that require a high-quality power supply.

Key Features

• Adjustable Output Voltage: The TPS74801DRCR offers an adjustable output voltage range from 0.8 V to 3.5 V, which allows for flexible use in various circuit designs.
• High Output Current: With the ability to supply up to 1.5 A of output current, this LDO can power a wide array of components, from microprocessors to peripheral devices.
• Stable with Low-ESR Capacitors: The device is stable with ceramic capacitors, which have a low equivalent series resistance (ESR), reducing the amount of noise and improving power integrity.
• Low Dropout Voltage: The low dropout voltage minimizes the difference between the input and output voltages, enhancing efficiency and allowing operation with minimal headroom above the output voltage.
• Fast Transient Response: The TPS74801DRCR is designed to provide a fast transient response, which is crucial for maintaining voltage stability during sudden changes in load.
• Over-temperature and Over-current Protection: Built-in protection mechanisms safeguard the regulator and the downstream components from damage due to excessive current or temperature.

Applications

The TPS74801DRCR is ideal for a variety of applications, including:

• RF Power Supplies
• Post-Regulation for Switching Supplies
• High-Performance DSPs, FPGAs, and ASICs
• Portable and Battery-Powered Equipment
• Medical Equipment

Package and Reliability

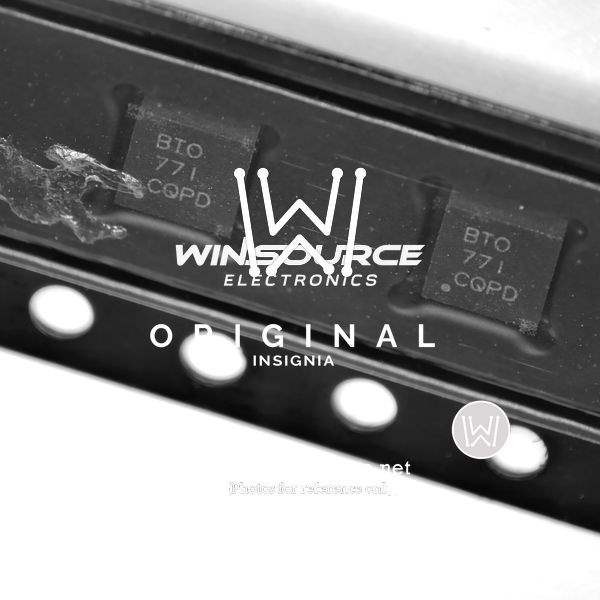

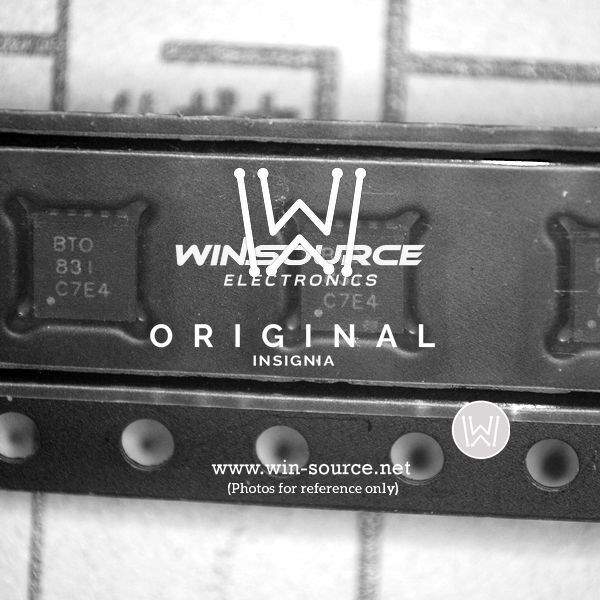

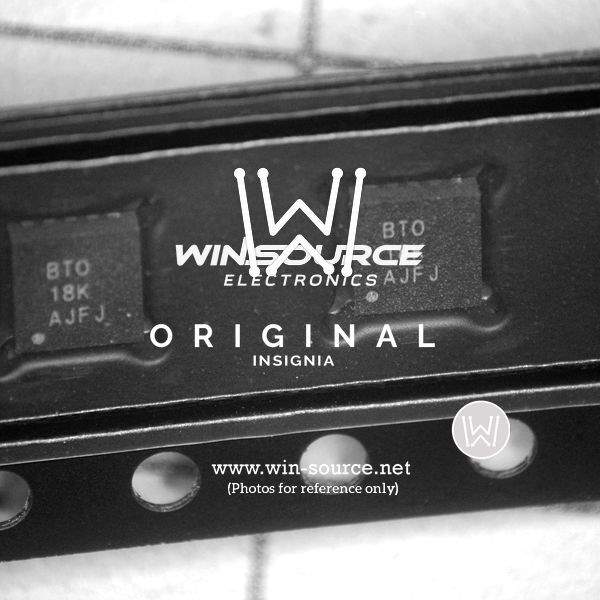

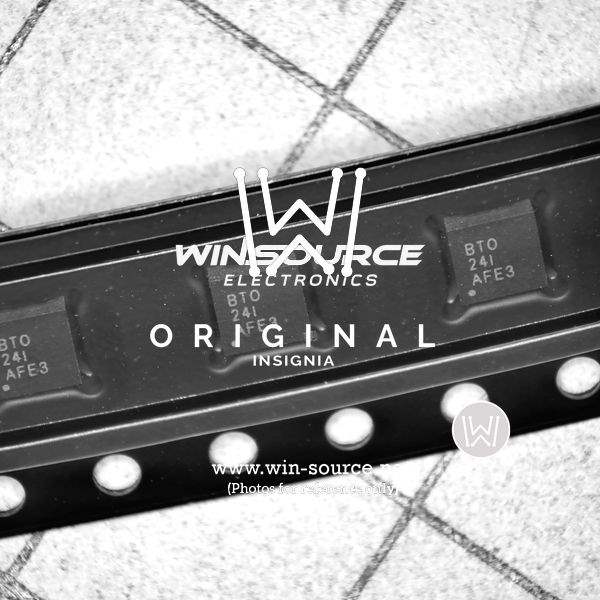

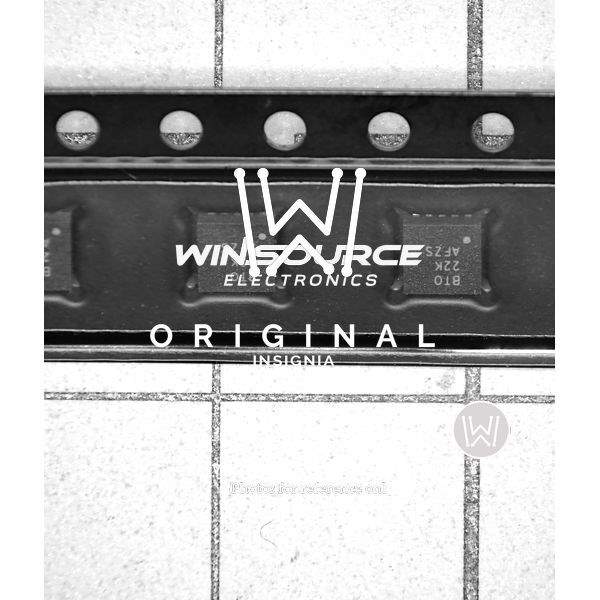

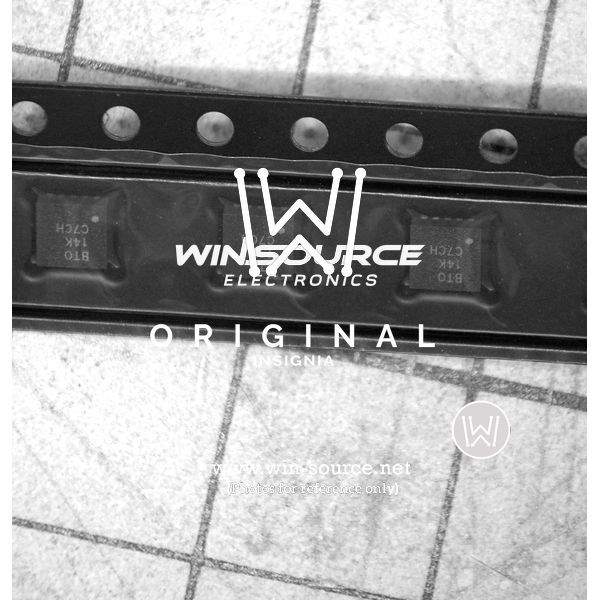

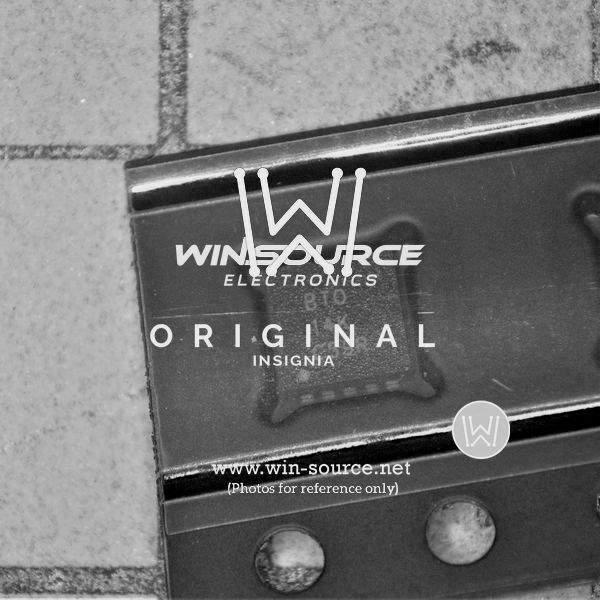

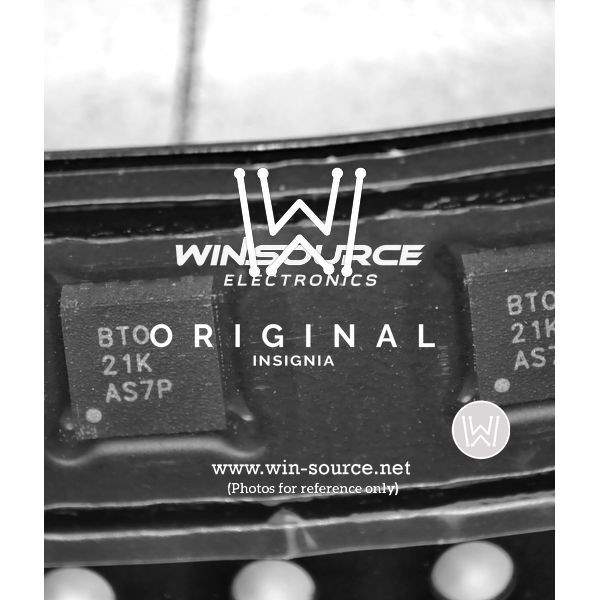

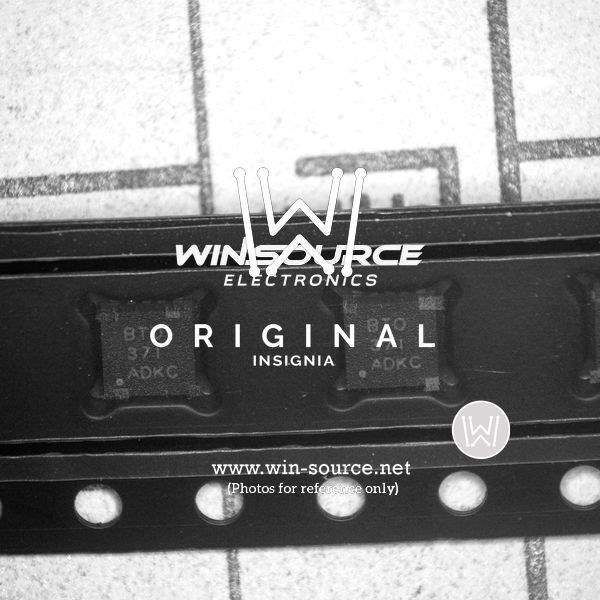

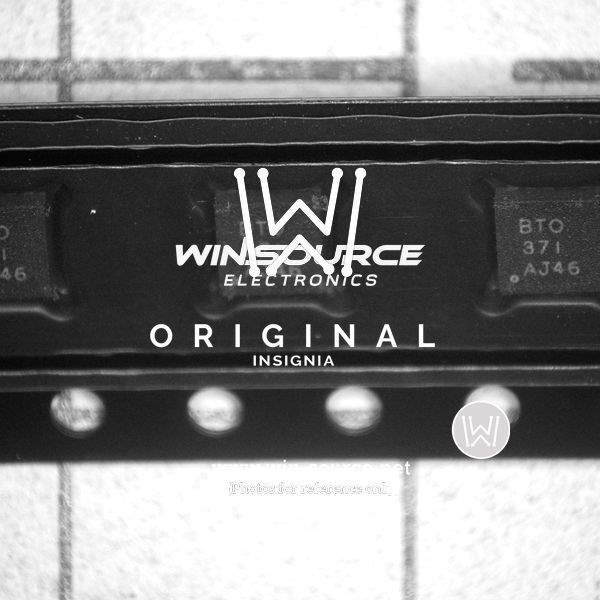

The TPS74801DRCR comes in a compact 3 mm x 3 mm VSON-10 package, which is ideal for space-constrained applications. The device's performance is characterized over a temperature range of –40°C to 125°C, ensuring reliable operation in diverse environments.

Conclusion

With its combination of features, the TPS74801DRCR from Texas Instruments is a highly reliable and flexible solution for applications requiring a high-quality power supply. Its ability to support a wide voltage range, high current output, and protection features make it a top choice for designers seeking performance and durability.
