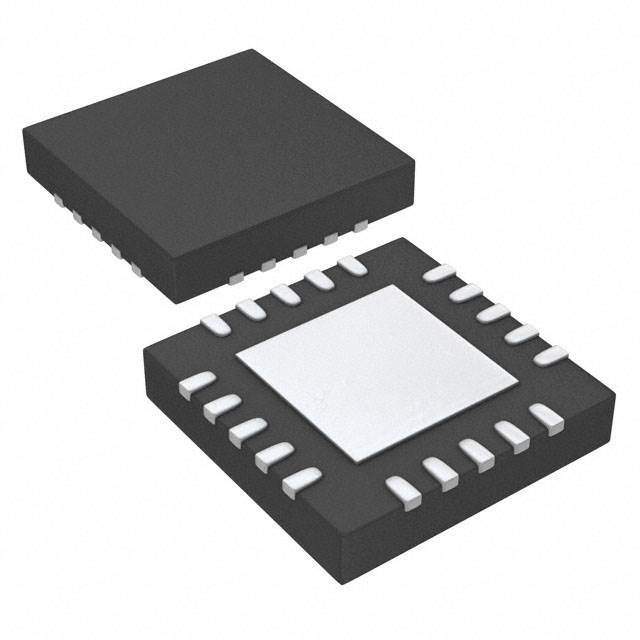

Overview of TPS74801RGWRG4

The TPS74801RGWRG4 is a versatile and highly efficient low-dropout (LDO) voltage regulator manufactured by Texas Instruments. Designed to meet the requirements of a broad range of applications, this component ensures a stable and reliable power supply, making it an essential part of many electronic circuits.

Key Features

• Adjustable Output Voltage: The TPS74801RGWRG4 offers an adjustable output voltage range from 0.8V to 3.5V, which can be set using external resistors. This flexibility allows the device to cater to various application needs.
• High Output Current: It can deliver up to 1.5A of continuous output current, making it suitable for powering a wide array of ICs and systems.
• Low Dropout Voltage: The device features a low dropout voltage, which enhances its efficiency and allows operation closer to the input voltage level, reducing power loss and heat dissipation.
• Stable with Low-ESR Capacitors: The regulator is stable with ceramic capacitors, which have lower equivalent series resistance (ESR) compared to other types. This allows for a more compact design and improves reliability.
• Power Good Output: A 'power good' output signal is provided, which indicates when the output voltage is within its nominal range. This feature is crucial for systems that require a reliable power-up sequence.
• Thermal Protection: The TPS74801RGWRG4 is equipped with thermal shutdown protection, safeguarding the device and the system from damage due to excessive temperatures.
• Overcurrent Protection: Built-in overcurrent protection helps prevent damage to the regulator and the powered device in case of a fault condition or excessive load.

Applications

The TPS74801RGWRG4 is ideal for a variety of applications, including:

• RF power amplifiers
• FPGAs and DSPs
• Data acquisition systems
• Portable and battery-powered equipment
• Medical devices

With its comprehensive feature set and robust protection mechanisms, the TPS74801RGWRG4 from Texas Instruments is a reliable choice for designers looking to enhance the performance and stability of their power management systems.
