Product Overview: TPS78227DDCR by Texas Instruments

The TPS78227DDCR is a highly efficient, low-dropout (LDO) linear voltage regulator produced by the renowned electronics manufacturer, Texas Instruments (TI). This compact device is designed to provide a stable and reliable power supply for a wide range of applications, including but not limited to, portable electronics, microcontrollers, and analog devices.

Key Features

• Output Voltage: The TPS78227DDCR provides a fixed output voltage of 2.7V, which is ideal for powering devices that require a stable voltage source.
• High Accuracy: This regulator offers excellent load and line regulation, ensuring minimal voltage fluctuations even under varying load conditions, which is crucial for sensitive electronics.
• Low Dropout: With a low dropout voltage, the TPS78227DDCR can operate efficiently even when the input voltage is close to the output voltage, making it suitable for battery-operated devices where power conservation is key.
• Current Capability: It is capable of delivering up to 150mA of continuous output current, sufficient for a multitude of low-power applications.
• Power Consumption: The device features a very low quiescent current, which significantly reduces power consumption when in idle mode, thereby extending battery life in portable applications.

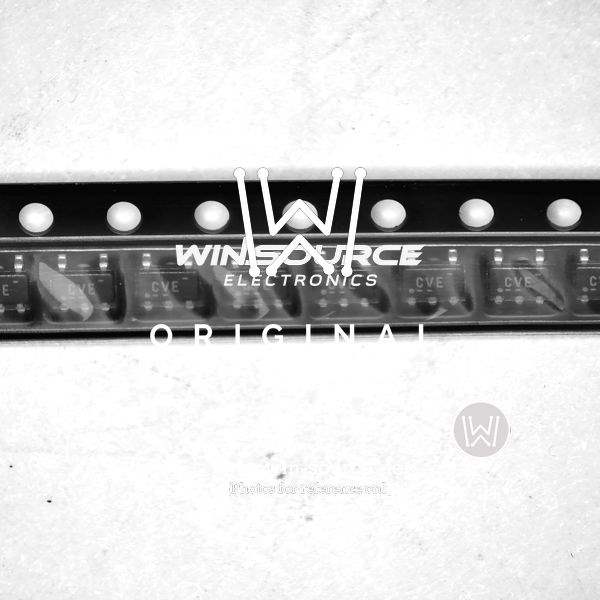

• Package: The TPS78227DDCR comes in a small SOT-23 package, which is advantageous for space-constrained applications.
• Thermal Protection: It includes built-in thermal shutdown protection to prevent damage from overheating.
• Stability: The regulator is stable with ceramic capacitors, which provides flexibility in design and ensures stable operation over a range of temperatures and conditions.

Applications

The TPS78227DDCR's performance characteristics make it suitable for a variety of applications, such as:

• Portable and battery-powered equipment
• Microcontroller power supplies
• Wireless peripherals
• Analog and digital sensor systems
• Healthcare devices

Overall, the TPS78227DDCR from Texas Instruments stands out as a reliable and efficient solution for designers looking to optimize power management in compact and power-sensitive applications.
