Product Overview: TPS78633EVM-207

The TPS78633EVM-207 from Texas Instruments is a fully assembled and tested circuit for evaluating the TPS78633 low-dropout regulator (LDO). This evaluation module (EVM) is designed to help users quickly and easily assess the performance of the TPS78633 LDO, which is capable of delivering a stable 3.3V output from a higher voltage input while maintaining excellent power supply rejection and low noise characteristics.

Key Features

• High Output Voltage Accuracy: The TPS78633EVM-207 provides a precise 3.3V output, with high accuracy that ensures reliable operation for sensitive applications.
• Low Dropout: The LDO has a very low dropout voltage, making it ideal for applications where the input voltage is close to the output voltage, thus maximizing efficiency.
• High Power Supply Rejection Ratio (PSRR): With excellent PSRR, the EVM ensures that fluctuations in the input voltage do not affect the output, providing a stable power source for noise-sensitive applications.
• Low Output Noise: The TPS78633EVM-207 features low output noise, which is crucial for precision analog circuits and other applications requiring a clean power supply.
• Adjustable Output: While the EVM is set to deliver a 3.3V output, the TPS78633 regulator can be adjusted to provide different voltages, offering flexibility for various design requirements.
• Thermal Protection: The LDO includes thermal shutdown protection, which prevents damage to the device under excessive temperature conditions.
• Overcurrent Protection: The EVM also features built-in current limit protection to safeguard the regulator and the load from damage due to overcurrent conditions.

Applications

The TPS78633EVM-207 is suitable for a wide range of applications, including but not limited to:

• Telecommunications
• Networking Equipment
• Post-Regulation for Switching Supplies
• Battery-Powered Devices
• High-Precision Analog Circuits

Design and Layout Considerations

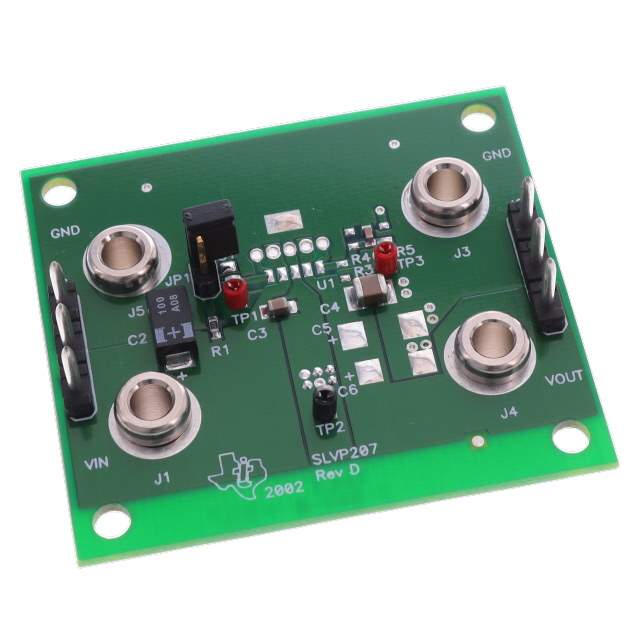

Designed with ease of use in mind, the TPS78633EVM-207 includes all necessary components for evaluating the TPS78633 LDO. Users should consider proper layout practices such as placing bypass capacitors close to the power pins and ensuring a good ground plane to maximize the performance of the EVM.

With its robust feature set and flexible design, the TPS78633EVM-207 from Texas Instruments is an excellent tool for designers and engineers looking to implement a reliable power management solution in their electronic projects.
