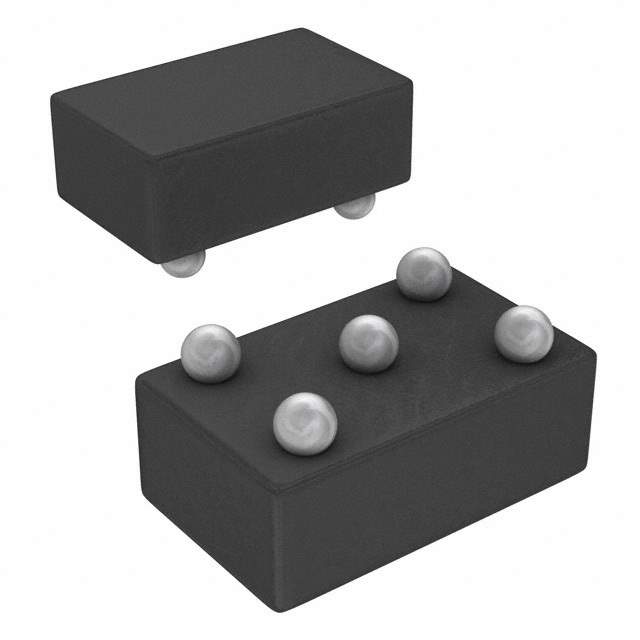

Same model may have multiple batches, images only for reference.

TPS79330YZQR

Name: TPS79330YZQR
Brand: Texas Instruments
SKU: 379438
Availability: InStock
Rating: 5 (871 reviews)

Part No	TPS79330YZQR
Manufacturer	Texas Instruments
Catalog	PMIC - Voltage Regulators - Linear
Description	IC REG LDO 3V 0.2A 5DSBGA
Datasheet	TPS79330YZQR Datasheet
Sample
ECAD Module

	New List Existing List This product has been added to your List. List Name:

Shipping Information

Shipped from	HK warehouse
Expected Shipping Date	Ship today if order in (HKT)
Supplier Lead-Time	Call for availability
Estimate shipping fee	Enter your destination to get a shipping estimate Estimate Shipping Fee

Pricing & Ordering $0.5334

Quantity

Unit Price

Ext. Price

60+

$0.8740

$52.440

140+

$0.7170

$100.380

220+

$0.6950

$152.900

300+

$0.6720

$201.600

385+

$0.6500

$250.250

515+

$0.5830

$300.245

* The above prices does not include taxes and freight rates, which will be calculated on the order pages.

Availability: 93,700 pieces

MOQ: 60 pcs

Order Increment : 1 pcs

Qty:

*Need More Quantity? *Request a Bulk Quantity Quotation?

Products specifications

Categories	Integrated Circuits
Manufacturer	Texas Instruments
Packaging	Reel - TR
Status	Active
Output Type	Fixed
Number of Regulators	1
Maximum Input Voltage	5.5V
Nominal Output Voltage (Min/Fixed)	3V
Dropout Voltage-Max	0.2V @ 200mA
Output Current	200mA
Operating Supply Current	220μA
PSRR	70dB to 43dB (100Hz to 100kHz)
Control Features	Enable
Protection Features	Over Current, Over Temperature, Reverse Polarity, Under Voltage Lockout (UVLO)
Temperature Range - Operating	-40°C to 125°C
Regulator Topology	Positive Fixed
Output Voltage	3V
Voltage - Dropout (Typical)	0.112V @ 200mA
Mounting	SMD (SMT)
Case / Package	5-DSBGA NanoStar
Win Source Part Number	055971-TPS79330YZQR
Popularity	Medium
Fake Threat In the Open Market	64 pct.
Supply and Demand Status	Sufficient

Description

Product Overview: Texas Instruments TPS79330YZQR

The TPS79330YZQR is a high-performance, low-dropout (LDO) linear voltage regulator from Texas Instruments, designed to deliver a stable and precise output voltage for a wide array of applications. This component is part of the TPS793xx family of regulators that are known for their excellent performance in terms of power supply ripple rejection, low noise, and high accuracy.

Key Features

Output Voltage: The device provides a fixed output voltage of 3.0V, which is suitable for powering sensitive analog and RF circuits that require a stable voltage supply.
High Accuracy: With an output voltage accuracy of ±1%, the TPS79330YZQR ensures reliable performance for precision applications.
Low Dropout Voltage: The LDO's low dropout voltage allows it to continue delivering a regulated output even when the supply voltage is close to the output voltage, making it ideal for battery-powered devices.
High PSRR: It boasts a high power supply rejection ratio (PSRR) of 64dB at 1kHz, which helps to filter out supply noise and provides a clean voltage to sensitive components.
Low Noise: This regulator features low output noise of 30µVRMS, making it an excellent choice for noise-sensitive applications such as audio or precision measurement systems.
Thermal and Overcurrent Protection: The device includes built-in thermal shutdown and overcurrent protection features to safeguard against damage from overheating and excessive current draw.
Small Package: The TPS79330YZQR comes in a compact 5-pin SOT-23 package, which is ideal for space-constrained designs.

Applications

The TPS79330YZQR is versatile and can be used in a variety of applications, including:

Portable and battery-powered devices
RF and wireless communication systems
Medical equipment
Analog and digital sensor systems
Audio and video applications

Conclusion

With its combination of high precision, low noise, and excellent power supply rejection, the TPS79330YZQR from Texas Instruments is a robust voltage regulator solution for designers looking to enhance the performance and reliability of their electronic systems. Its small footprint and comprehensive protection features make it a highly attractive option for a wide range of applications.
