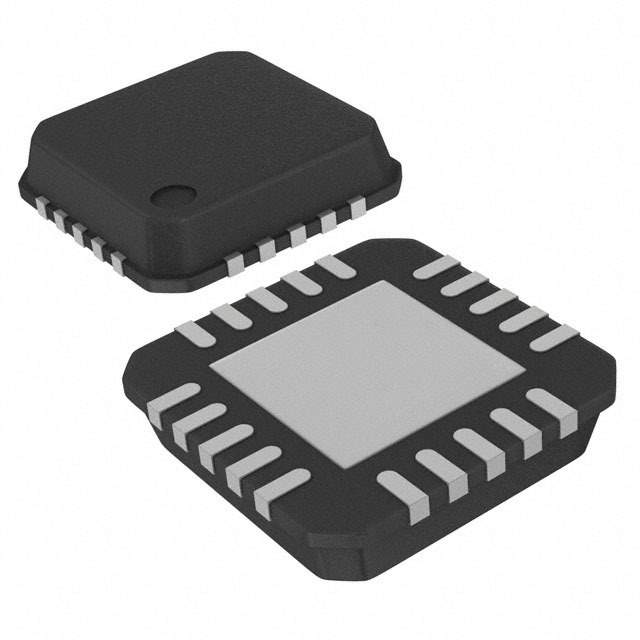

The TPS7A5201WQRTKRQ1 from Texas Instruments is a state-of-the-art low-dropout (LDO) linear voltage regulator specifically designed for automotive applications. This robust device is capable of delivering a continuous output current of up to 1A with an input voltage range of 2.5V to 6V, making it an ideal solution for powering sensitive microcontrollers, sensors, and other electronic components in a vehicular environment.

Key Features:

• High Accuracy: The device offers excellent regulation with a typical output voltage accuracy of ±1%, ensuring reliable performance for critical automotive systems.
• Low Dropout: With a low dropout voltage, the TPS7A5201WQRTKRQ1 can maintain regulation even when the input-to-output voltage differential is minimal, which is beneficial for battery-operated systems.
• Thermal Protection: The built-in thermal shutdown feature protects the regulator and the surrounding components from overheating, enhancing system reliability.
• Overcurrent Protection: The current limit function safeguards the device and the load from damage due to excessive current draw.
• Stable with Low ESR Capacitors: The TPS7A5201WQRTKRQ1 remains stable with ceramic capacitors that have low equivalent series resistance (ESR), reducing the need for bulky capacitors.
• Adjustable Output Voltage: The output voltage can be adjusted from 1.2V to 5.5V using external resistors, providing design flexibility to meet various application requirements.
• Power Good (PG) Output: This feature provides a signal indicating that the output voltage is within its proper operating range, which is useful for power sequencing and system monitoring.

Applications:

The TPS7A5201WQRTKRQ1 is ideal for automotive applications that demand a high level of performance and reliability, such as infotainment systems, advanced driver assistance systems (ADAS), and other in-vehicle electronics. Its robust design also makes it suitable for harsh environments where temperature fluctuations and voltage transients are common.

Quality and Reliability:

As an automotive-qualified product, the TPS7A5201WQRTKRQ1 meets the stringent requirements of the AEC-Q100 standard for reliability and performance in automotive electronics. With its advanced features and proven durability, this LDO regulator from Texas Instruments is an excellent choice for powering the next generation of automotive technology.
