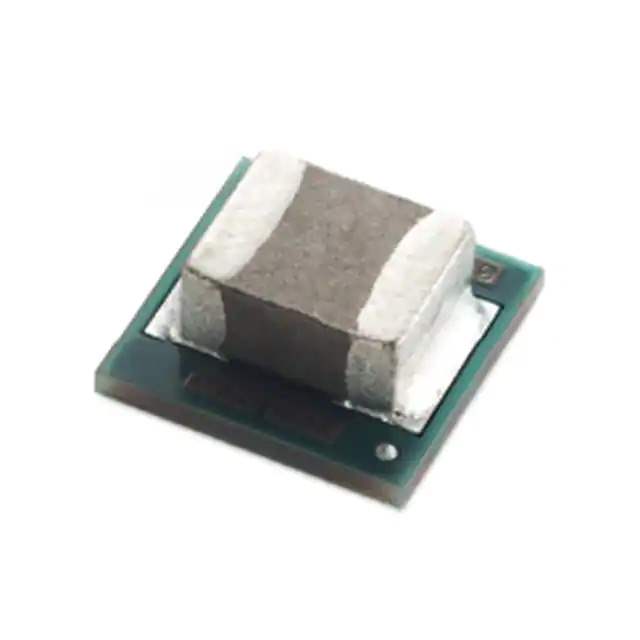

Overview of Texas Instruments TPS82140SILT

The TPS82140SILT from Texas Instruments is a highly efficient, small, and adjustable step-down power module that integrates a synchronous step-down converter with inductors. This advanced module is designed to provide a complete power management solution with minimal external components, making it ideal for space-constrained applications.

Key Features

• Adjustable Output Voltage: The TPS82140SILT offers an adjustable output voltage range from 0.8V to 6V, which allows for flexible use in various applications.
• High Efficiency: With its synchronous step-down converter design, this module provides excellent power efficiency, which is critical for battery-powered devices and helps to extend battery life.
• Compact Size: The module comes in a small MicroSiP™ package measuring just 3mm x 2.8mm x 1.5mm, making it perfect for portable and space-limited devices.
• Wide Input Voltage Range: It supports a wide input voltage range from 3V to 17V, enabling its use in systems with varying supply voltages.
• Integrated Inductor: With the inductor integrated into the module, the TPS82140SILT simplifies design and reduces the overall footprint on the PCB.
• Thermal Performance: The module is designed for excellent thermal performance, ensuring reliable operation even at full load and in high-temperature environments.

Applications

The versatile TPS82140SILT module is suitable for a wide range of applications, including but not limited to:

• Portable Electronics
• Wireless Power Supplies
• Networking Equipment
• Industrial Controls
• Point-of-Load Conversions

Reliability and Protection

The TPS82140SILT is equipped with several protection features to ensure reliable operation. These include over-temperature protection, over-current protection, and under-voltage lockout, which safeguard the module and the downstream circuitry from various fault conditions.

Conclusion

With its combination of high efficiency, adjustable output voltage, compact size, and robust protection features, the Texas Instruments TPS82140SILT power module is an excellent choice for designers looking to optimize power management in their next project.
