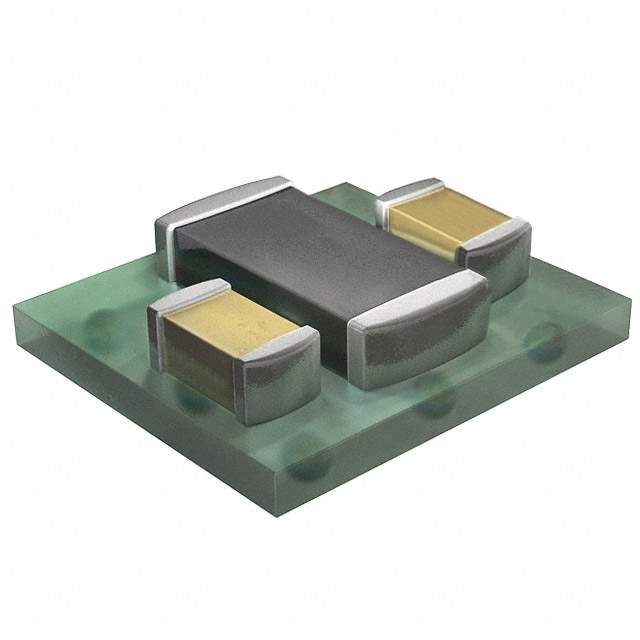

The TPS82695SIPT is a highly-integrated power solution from Texas Instruments, designed to meet the rigorous power requirements of contemporary portable and space-constrained electronics. This innovative product is part of the MicroSiP™ power module family, which is known for its exceptional power density and efficiency.

Key Features

• High Efficiency: The TPS82695SIPT boasts an ultra-high power conversion efficiency, which is optimized for battery-powered applications to extend battery life.
• Compact Design: With its MicroSiP™ package, it offers a compact footprint on the PCB, making it ideal for space-limited applications.
• Integrated Inductor: The module comes with an integrated inductor, reducing the need for external components and simplifying the design process.
• Adjustable Output Voltage: It provides a user-configurable output voltage, allowing designers to tailor the power supply to their specific needs.
• Low Quiescent Current: The device features a low quiescent current, which minimizes standby power consumption and is crucial for battery longevity in portable devices.

Applications

The TPS82695SIPT is versatile and can be used in a variety of applications, including but not limited to:

• Smartphones and Tablets
• Wireless Headsets and Earbuds
• Wearable Technology
• Portable Medical Devices
• Internet of Things (IoT) Devices

Technical Specifications

The device operates over a wide input voltage range and provides a stable and reliable power supply. Key technical specifications include:

• Input Voltage Range: 2.3V to 4.8V
• Output Voltage Range: Adjustable from 0.9V to 1.8V
• Output Current: Up to 600mA
• High Switching Frequency: 4MHz, allowing the use of small external components
• Thermal Protection and Over-Current Protection

The TPS82695SIPT from Texas Instruments represents a state-of-the-art solution for power management in modern electronic devices, offering both performance and convenience to designers and engineers.
